Regular price$2,599.00
/

At first glance, the new Primer may resemble its predecessors, but the real magic lies beneath the surface. This latest iteration delivers unmatched performance with a reinforced carbon fiber layup and a newly redesigned, externally mounted top link. The wider top link enhances frame stiffness, providing a more responsive and confident ride on the trail. With 150mm front and 150mm rear travel, the Primer is engineered to excel on every trail, offering pure perfection with every ride.

*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.

We’ve reimagined our classic Primer to deliver the ultimate trail bike for 2025. Striking the perfect balance between stiffness and compliance is a craft we’ve mastered, optimizing the carbon lay-up to increase lateral stiffness around the bottom bracket while maintaining vertical compliance for a smoother, more controlled ride. The updated geometry features a steeper seat tube angle and longer reach, aligning with modern trail standards. We’ve also enhanced the rear triangle for UDH and T-Type compatibility. To complete the package, we partnered with FOX and Rockshox to custom-tune the rear shock, ensuring seamless integration with our JS Tuned Suspension Design. Paired with 150mm front travel and 150mm rear, the Primer is ready to tackle any trail with confidence and precision.
BUILD PRIMER 29 FRAME
FRAME Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the trail category. Features fully-guided internal cable routing, alloy top link with integrated flip chips to adjust geometry, titanium hardware, ISCG-05 tabs, and a threaded bottom bracket. Universal derailleur hanger (UDH) and quick-release rear axle( 148mm Boost hub spacing)

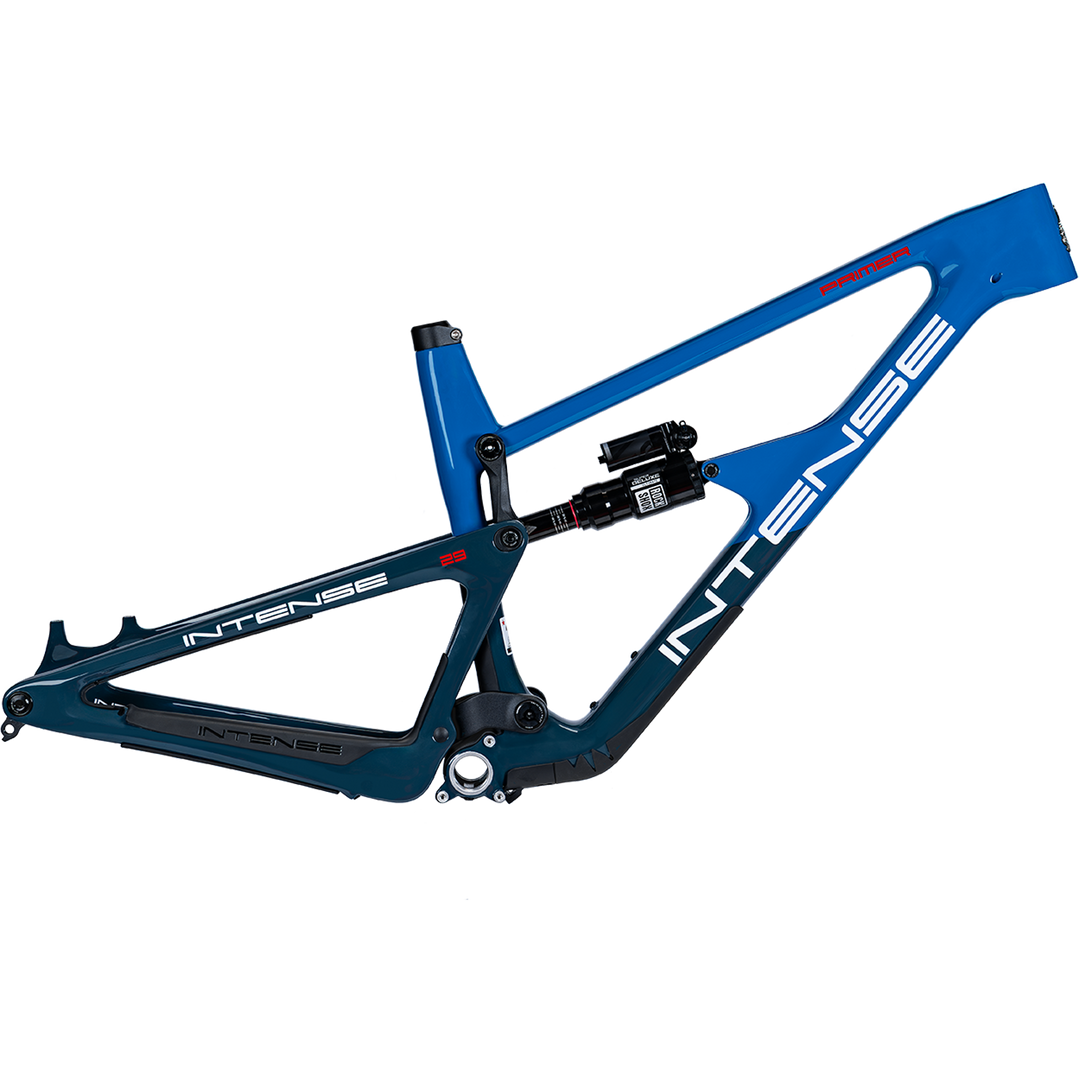

ROCKSHOX
SUPER DELUXE ULTIMATE
ROCKSHOX Deluxe Ultimate RC2T, 150mm, 210x50mm, 20x8 front/rear hardware
FOX FACTORY FLOAT X FOX Flat X Factory,150mm, 210x50mm, 20x8 front/rear hardware
ROCKSHOX LYRIK ULTIMATE

RockShox Lyrik Ultimate RC2, 150mm, 44mm offset, Charger 3 damper, DebonAir+, Boost 15x110mm

GEOMETRY SM MD LG XL
WEIGHT (NO SHOCK) 5.7lbs 2.58kg 5.7lbs / 2.58kg 5.7lbs / 2.58kg 5.7lbs / 2.58kg
SIZING 5'0-5'6" 5'4"-5'10" 5'8"-6'2" 6'1"-6'6"
REACH 427mm 456mm 483mm 507mm
HEADTUBE ANGLE 65.6° 65.6° 65.6° 65.6°
SEATTUBE ANGLE (Effective) 77° 77° 77° 77°
WHEELBASE 1188mm 1217mm 1247mm 1279mm
CHAINSTAY LENGTH 440mm 440mm 440mm 440mm
BB HEIGHT 344mm 344mm 344mm 344mm
STACK 568mm 597mm 626mm 656mm
TOPTUBE LENGTH 618mm 618mm 627mm 645mm
HEADTUBE LENGTH 90mm 90mm 100mm 120mm
BB DROP 31mm 31mm 31mm 31mm
SEATTUBE ANGLE (Actual) 73° 73° 73° 73°
SEATTUBE LENGTH 405mm 420mm 440mm 465mm
MAX SEATPOST DEPTH 255mm 255mm 280mm 280mm
LOWER HEADSET STACK HEIGHT 12mm 12mm 12mm 12mm
FRONT CENTER 749mm 778mm 808mm 840mm

*Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm front and 709mm rear

JS TUNED TRAIL LINK

Incredibly smooth performance on mixed terrain with excellent pedaling efficiency. Supportive while climbing and on flatter trails, yet bottomless as the terrain gets rougher.

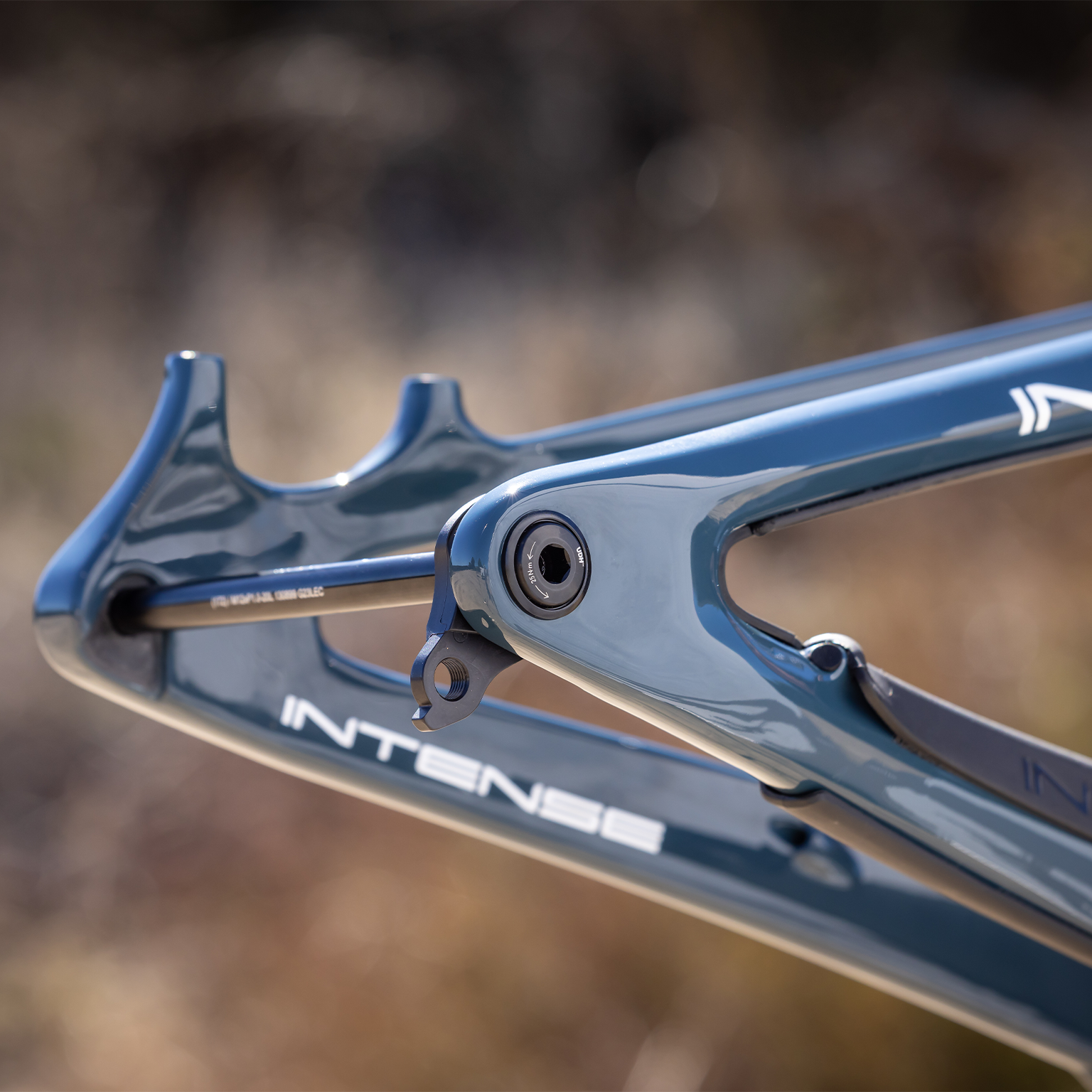

UDH & T-Type Compatibility

The frame comes with a Universal Derailleur Hanger (UDH) for improved alignment and easy replacement, and it fully supports SRAM’s T-Type drivetrain systems for enhanced performance and durability.

THREADED BB

Features a threaded bottom bracket, a preferred choice for riders who handle their own bike maintenance. Compared to press-fit systems, threaded BBs are known for their ease of installation, removal, and maintenance, along with a more durable, secure connection. They are also less prone to creaking, making them a reliable and low-maintenance option for long-term performance on demanding terrain.

INTERNAL CABLE ROUTING

Internally guided routing for the shifter, dropper post, and rear brake ensures the Primer remains clean, organized, noise-free, and easy to maintain.

EXTERNALLY MOUNTED TOP LINK

Redesigned to sit externally on the frame, the top link is now wider, enhancing frame stiffness. This improvement translates to a more responsive and confident ride on the trail.

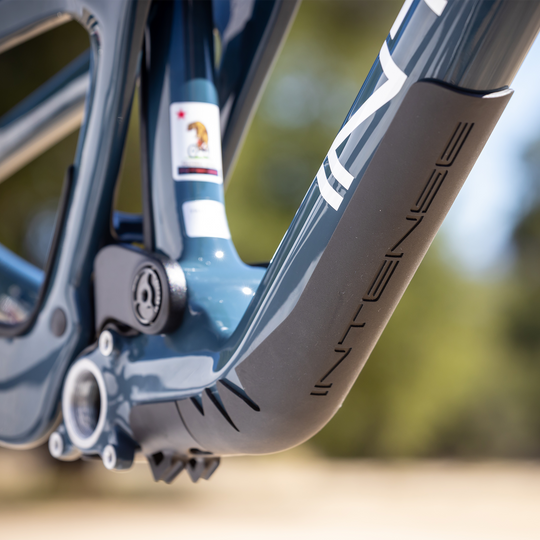

FRAME PROTECTION

The Primer features integrated Flak Guard armor on the downtube to protect the frame from rock strikes and trail debris, along with a durable rubberized chainstay cover for added protection
