Regular price$2,499.00
/

Much like our mixed-wheel Tracer, the Tracer 29 is built to be fast, capable, fun, and agile—but with 29” wheels front and rear, it offers added stability and a smoother, more confidence-inspiring ride over rough terrain. UDH equipped and T-Type drivetrain compatible

*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.

An Enduro bike needs to do two things: eat up mountainous terrain on the downhills, and then climb back up to do it all again. With our new Tracer 29 we have created a bike that can do just that. And with this frame-only option your Tracer 29 can be built to be perfectly at home in the bike park doing laps, out in the back country on an adventure or racing against the clock. It’s your choice.
BUILD TRACER 29 FRAME

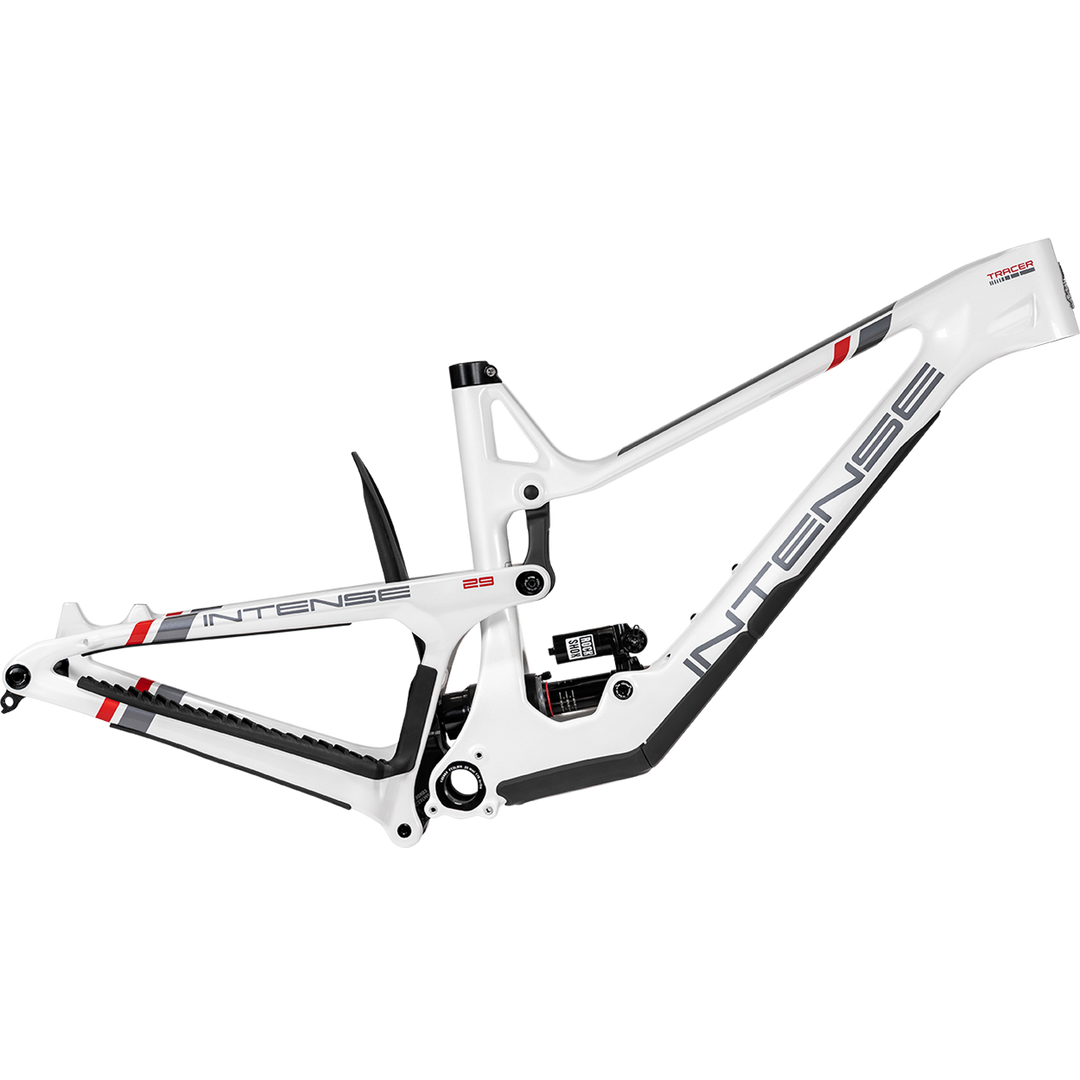

FRAME Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the enduro category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, and threaded BB. Universal derailleur hanger (UDH), T-type compatible, quick release rear axle (148mm Boost Hub Spacing)
ROCKSHOX
VIVID Ultimate
TouchDown RC2T damper, 170mm travel, rebound adjustment, high/low speed compression adjustment, DebonAir technology, adjustable hydraulic bottom out with five compression settings.

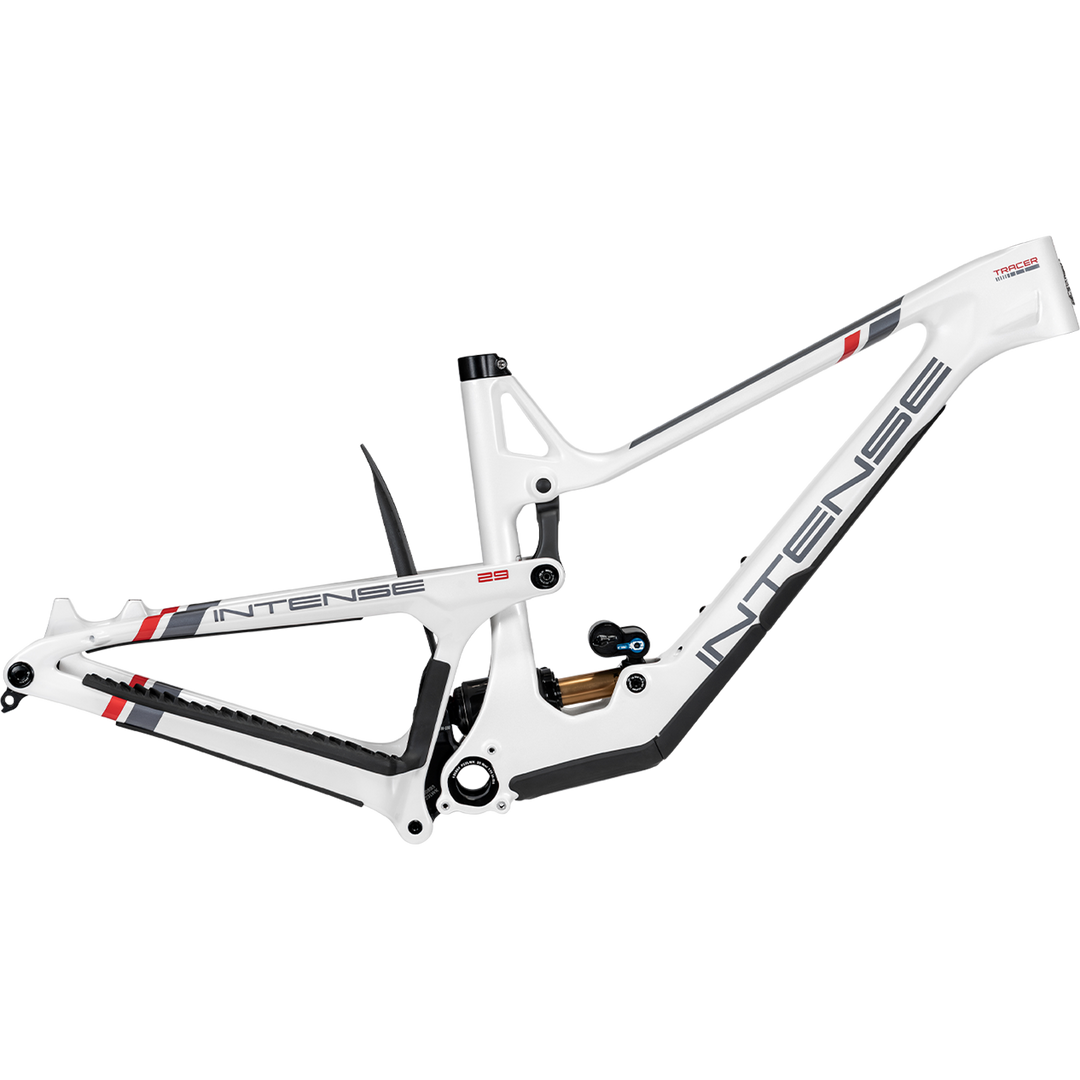

FOX FACTORY FLOAT X2 4-way adjustment, 170mm travel, high/low speed compression, 2pos adjustment, kashima, 4-way monotube.

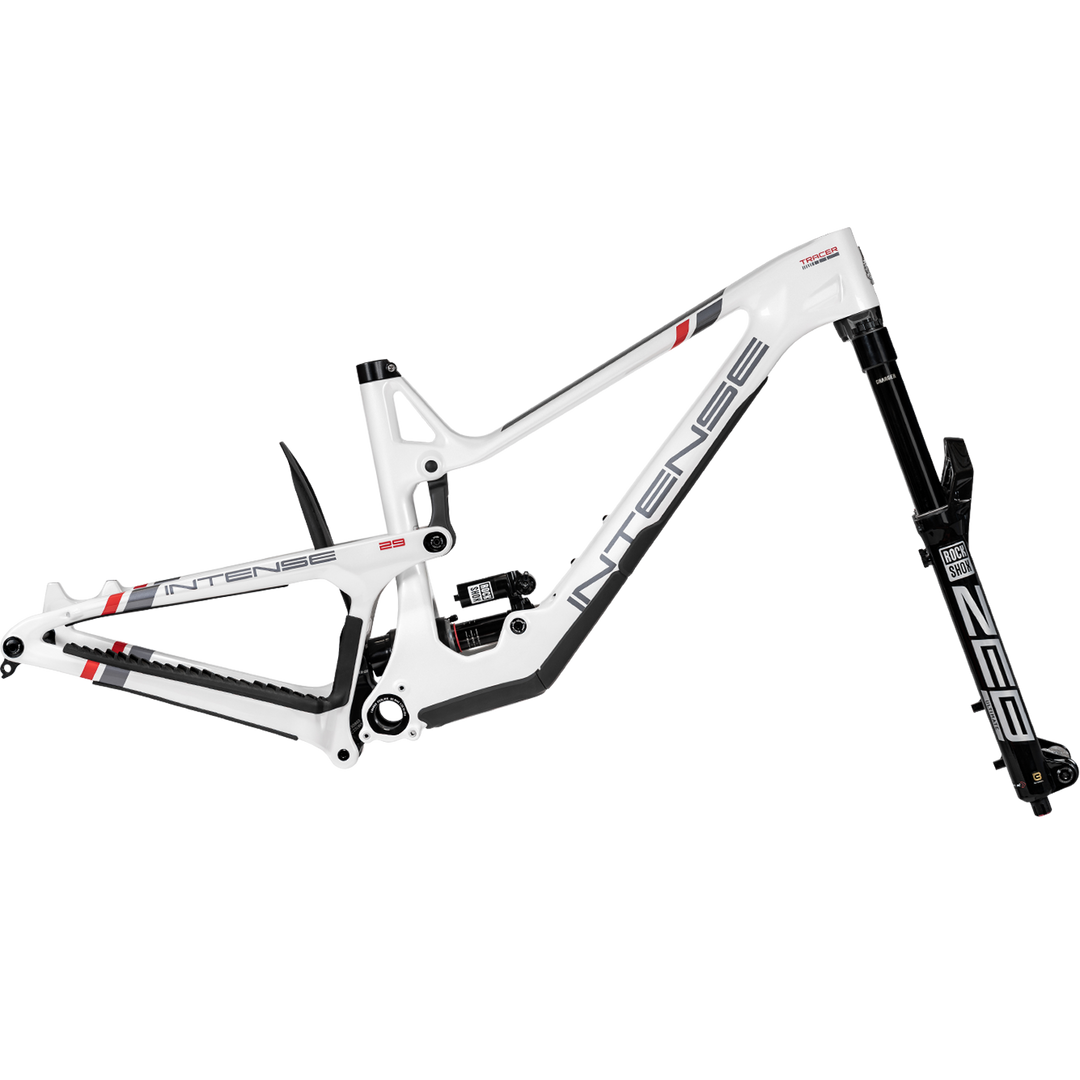

ROCKSHOX ZEBB ULTIMATE Charger 3.1 RC2's, 170mm travel, rebound adjustment, high/low speed compression, ButterCups, Debon Air+.

GEOMETRY MD LG XL
WEIGHT (NO SHOCK) 7lbs 8 oz 7lbs 11oz 7lbs 11oz
SIZING 5'4"-5'10" 5'8"-6'2" 6'1"-6'6"
REACH 450mm 475mm 500mm
HEADTUBE ANGLE 64° 64° 64°
SEATTUBE ANGLE (Effective) 77.4° 77.4° 77.4°
WHEELBASE 1236mm 1265mm 1295mm
CHAINSTAY LENGTH 447mm 447mm 447mm
BB HEIGHT 342mm 342mm 342mm
STACK 631mm 640mm 649mm
TOPTUBE LENGTH 591mm 619mm 647mm
HEADTUBE LENGTH 100mm 110mm 120mm
BB DROP 32.6mm 32.6mm 32.6mm
SEATTUBE ANGLE (Actual) 72.4° 72.4° 72.4°
SEATTUBE LENGTH 418mm 440mm 465mm
MAX SEATPOST DEPTH 260mm 260mm 280mm
LOWER HEADSET STACK HEIGHT 4mm 4mm 4mm
FRONT CENTER 791mm 820mm 849mm

*Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm

JS TUNED ENDURO LINK

The bottom-link-driven rear shock provides a firm pedaling platform and lowers the center of gravity, offering exceptional stability and control on descents.

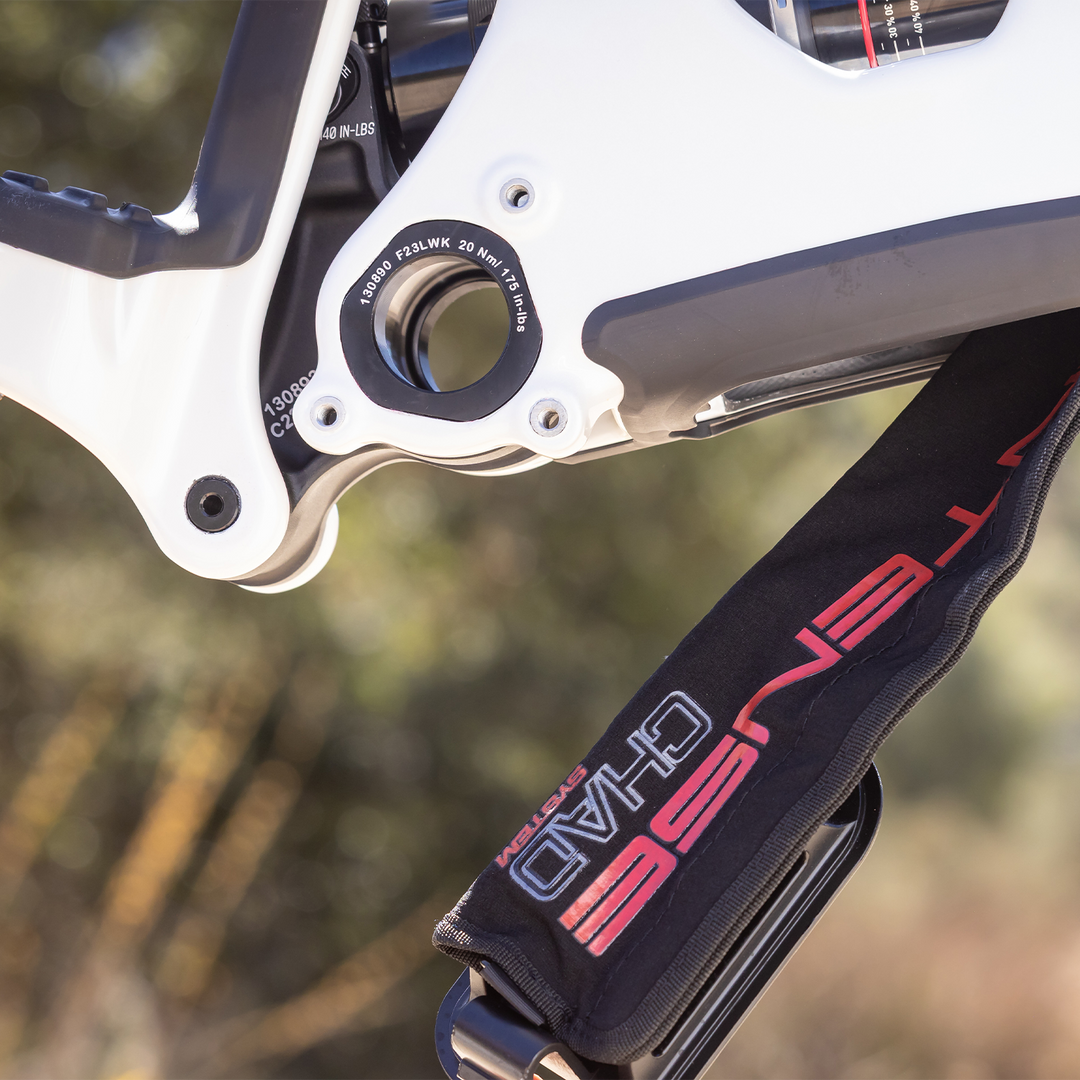

CHAD STORAGE SYSTEM

The in-frame storage solution system is designed to securely hold all your trail essentials, keeping your upper body unburdened.

INTEGRATED REAR FENDER

Stay clean and focused on the ride with a large rear mud flap designed to protect you from mud and debris.

INTERNAL CABLE ROUTING

Internally guided routing for the shifter, dropper post, and rear brake ensures the Primer remains clean, organized, noise-free, and easy to maintain.

CARBON INTEGRATED TOP LINK

Stiff, light, and exceptionally strong, seamlessly integrated into the frame—this component is a cornerstone of the Tracer’s JS Tuned suspension system.

FRAME PROTECTION

The Tracer’s downtube features molded frame protection and a shuttle guard, providing robust defense against impacts and wear.
