During the initial development stages, the 6-link high pivot design allowed us to isolate, adjust and customize every element of the M1’s ride characteristics. Our goal was to design a bike that would excel in all DH conditions, on any track, and honor the name and racing pedigree of our original M1 frames that we produced in the 1990s. With the new M1 we’ve created a bike that can smash through the roughest terrain, generate speed, accelerate efficiently when pedaling and stay active under braking.

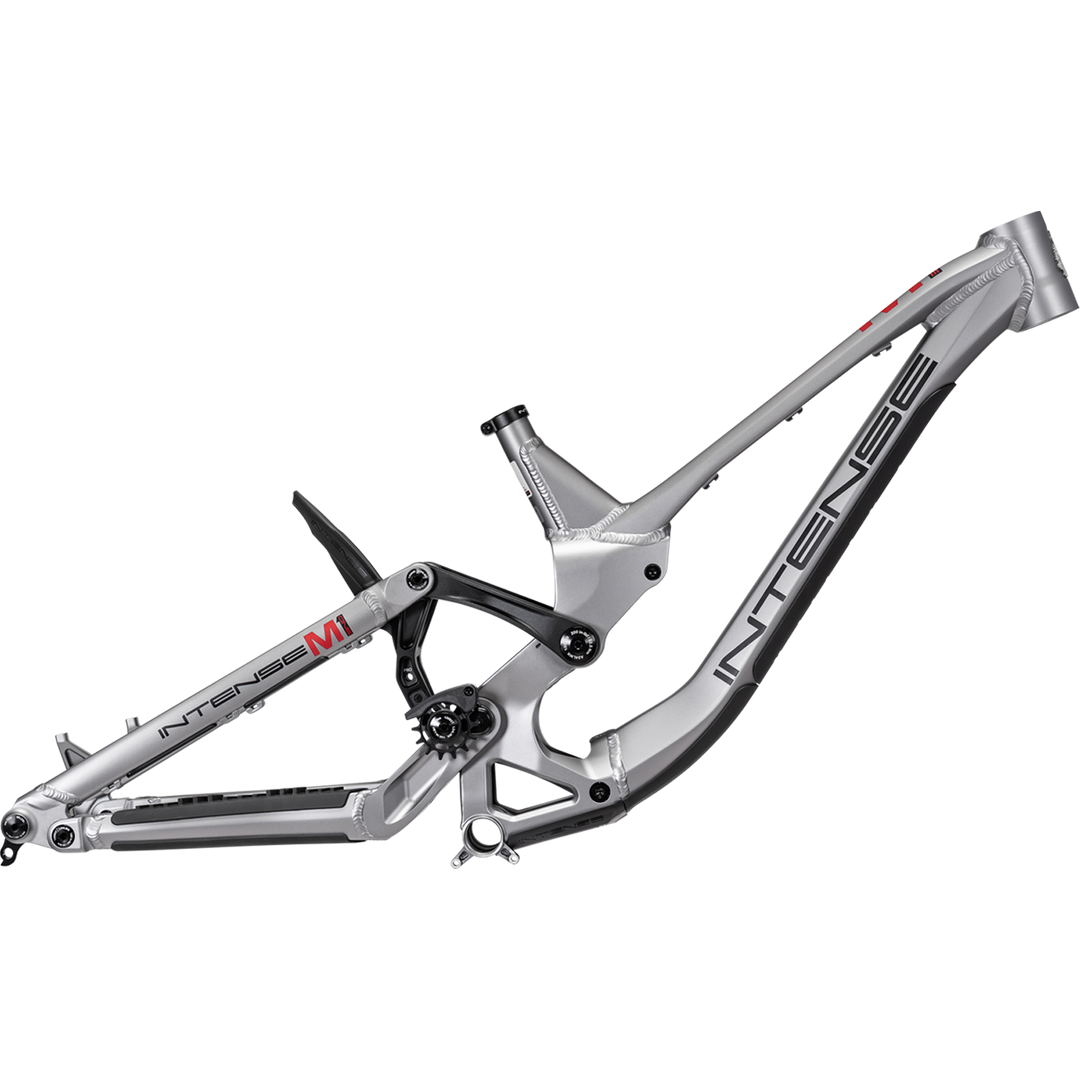

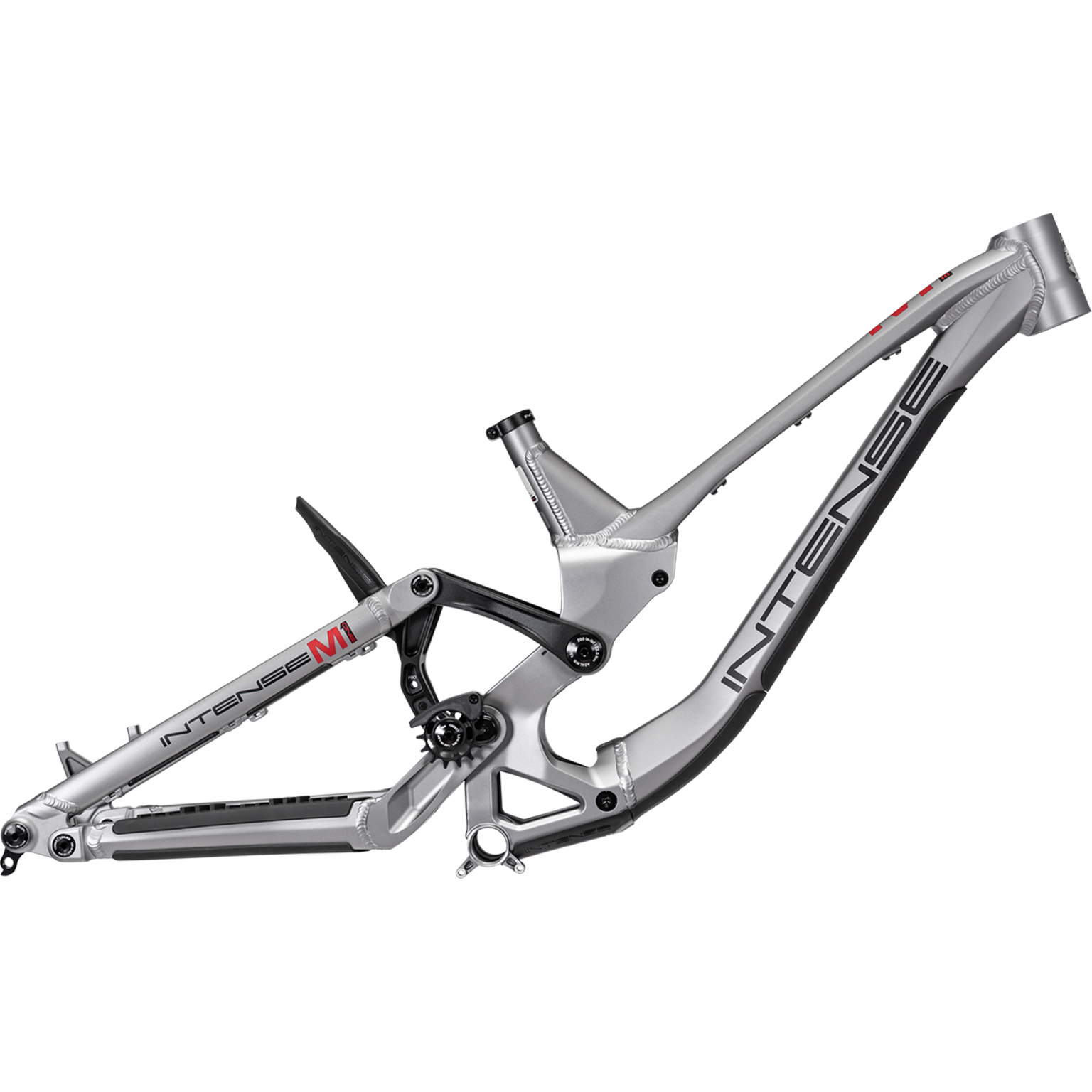

BUILD | M1 FACTORY FRAME |
WEIGHT | 11 lbs 8 oz // 5.21 kg, size MD, w/ axle, hanger, flak guard and mounting hardware. |

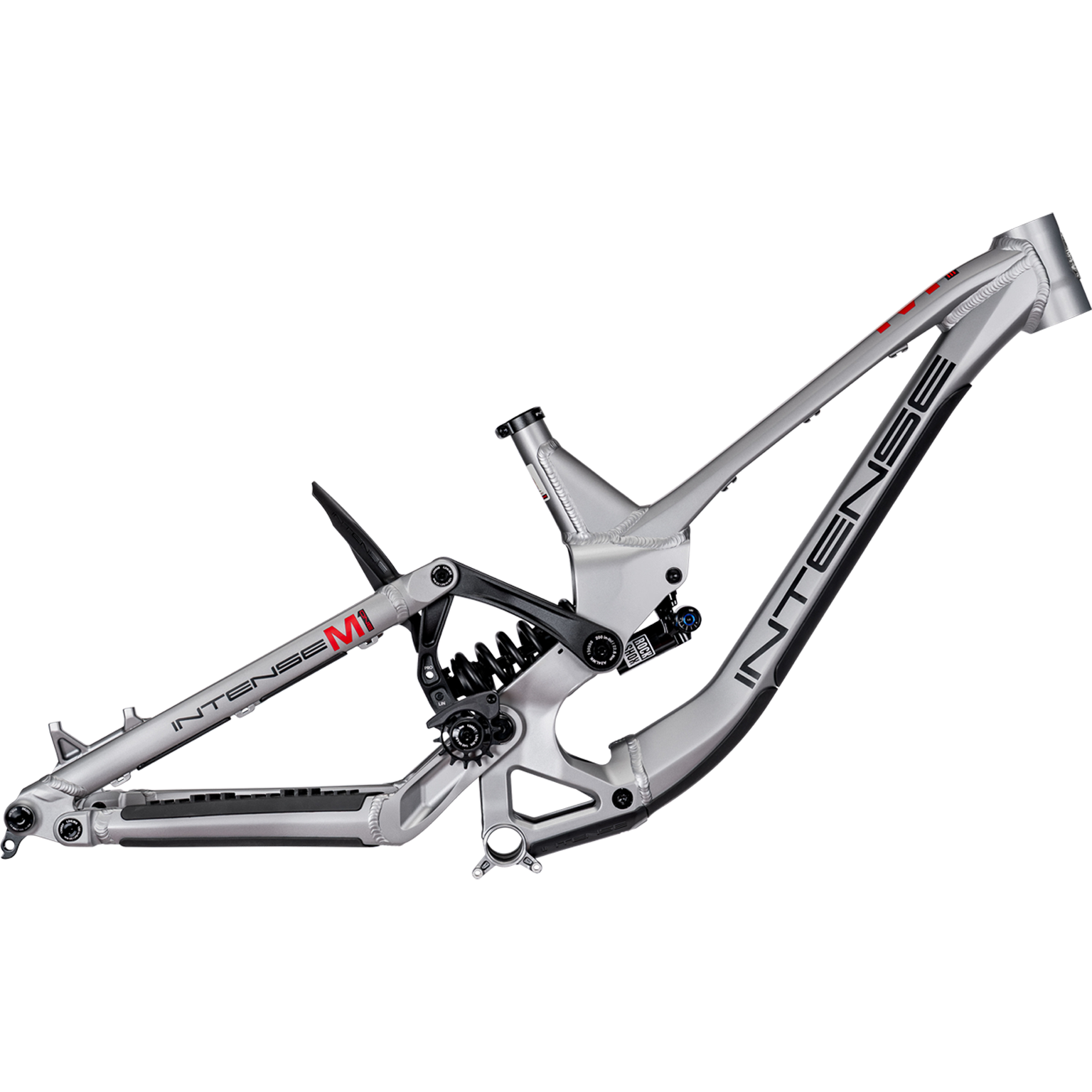

FRAME | M1 Performance Alloy Frame, Alloy Linkage, external cable mounts, ZS56/ZS56 headtube, full downhill flak guard armor, integrated mud guard, 203mm (linear), 212mm (progressive) rear travel. |
ROCKSHOX VIVID COIL ULTIMATE |
RS-VIVC-ULT-C1, RC2T Damper, Rebound Adjustment, Independent High and Low Speed Compression Adjustment, Hydraulic Bottom Out. |

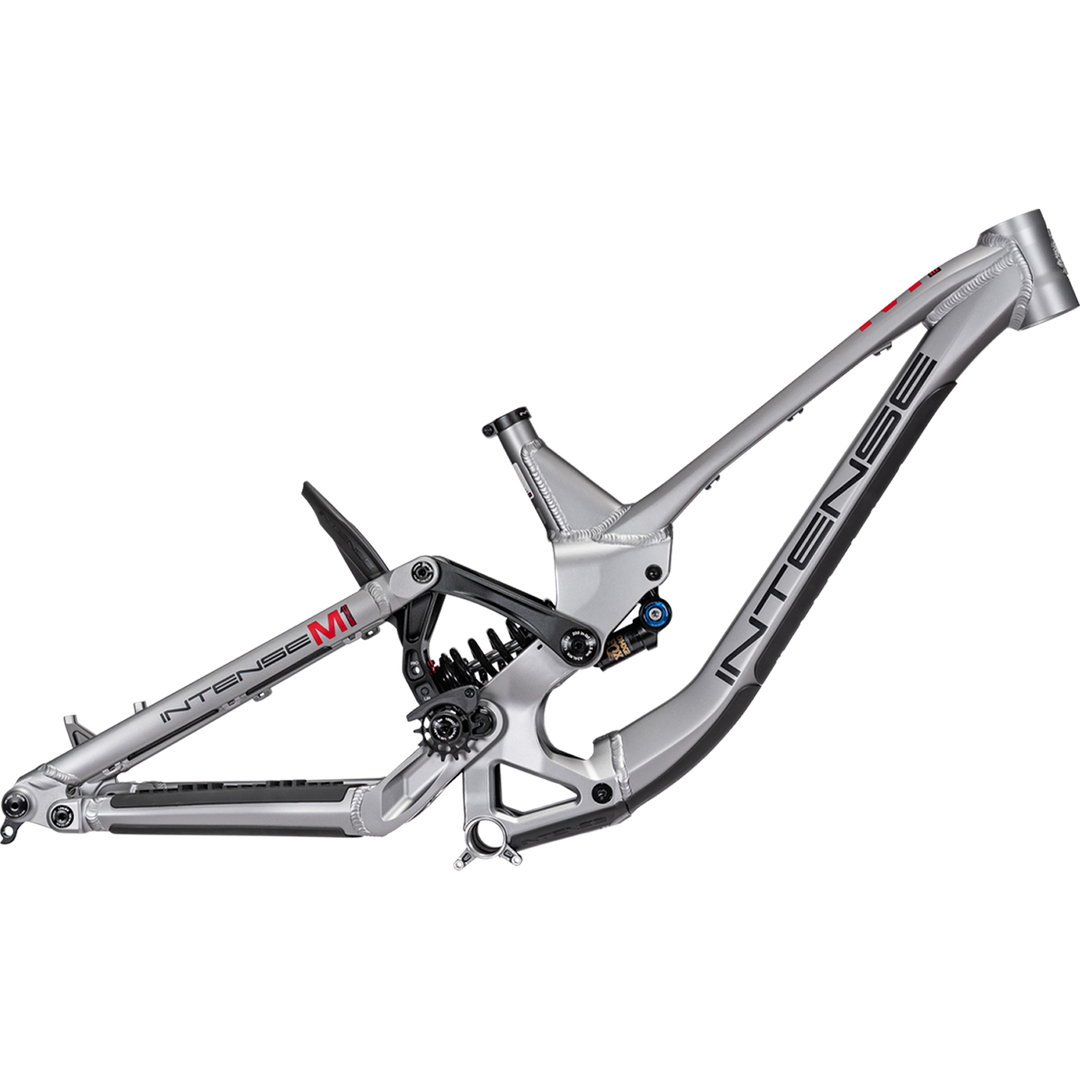

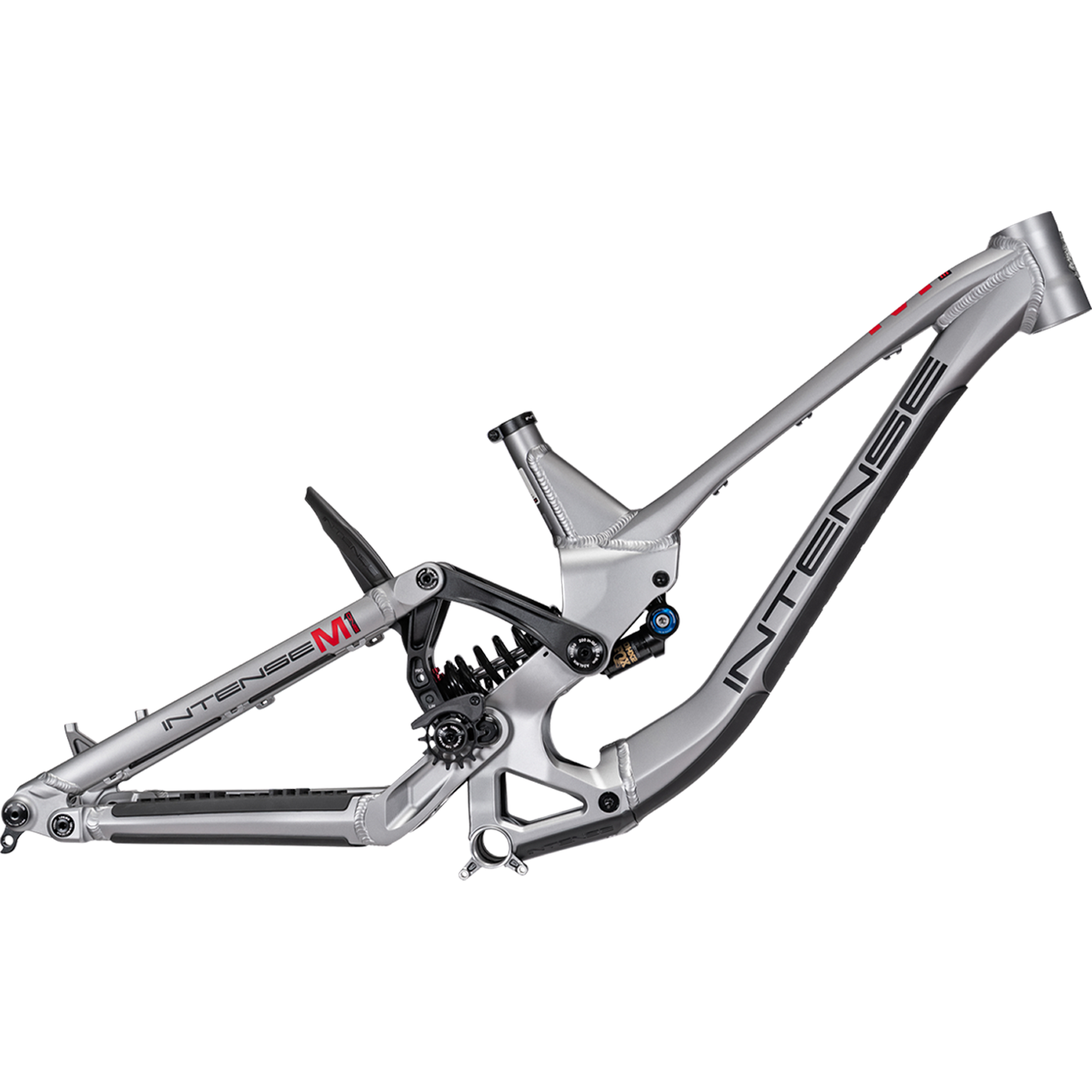

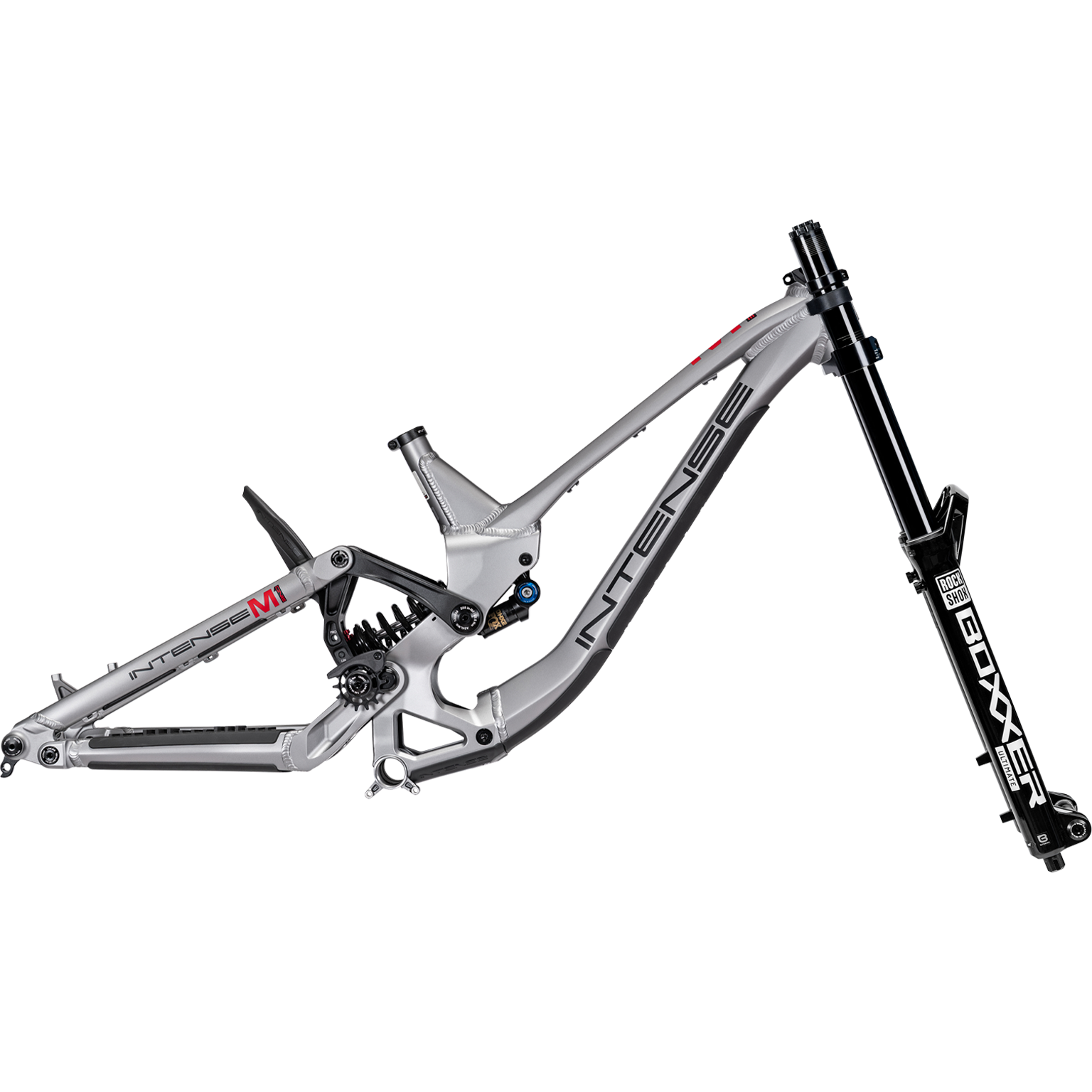

FOX FACTORY DHX2 | High/low speed compression and high/low speed rebound, 250mm x 75mm, 8mm x 40mm and 8mm x 20mm hardware |

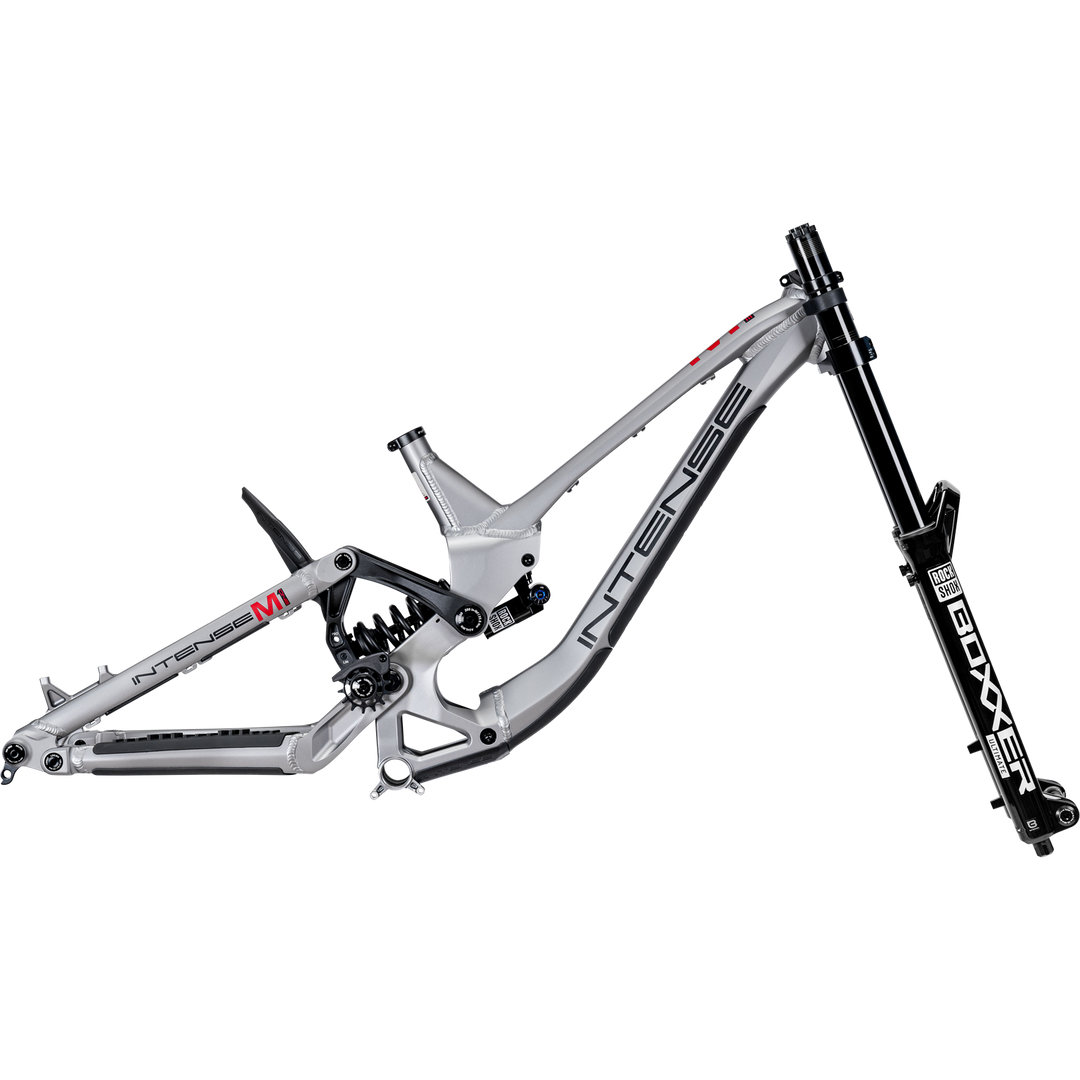

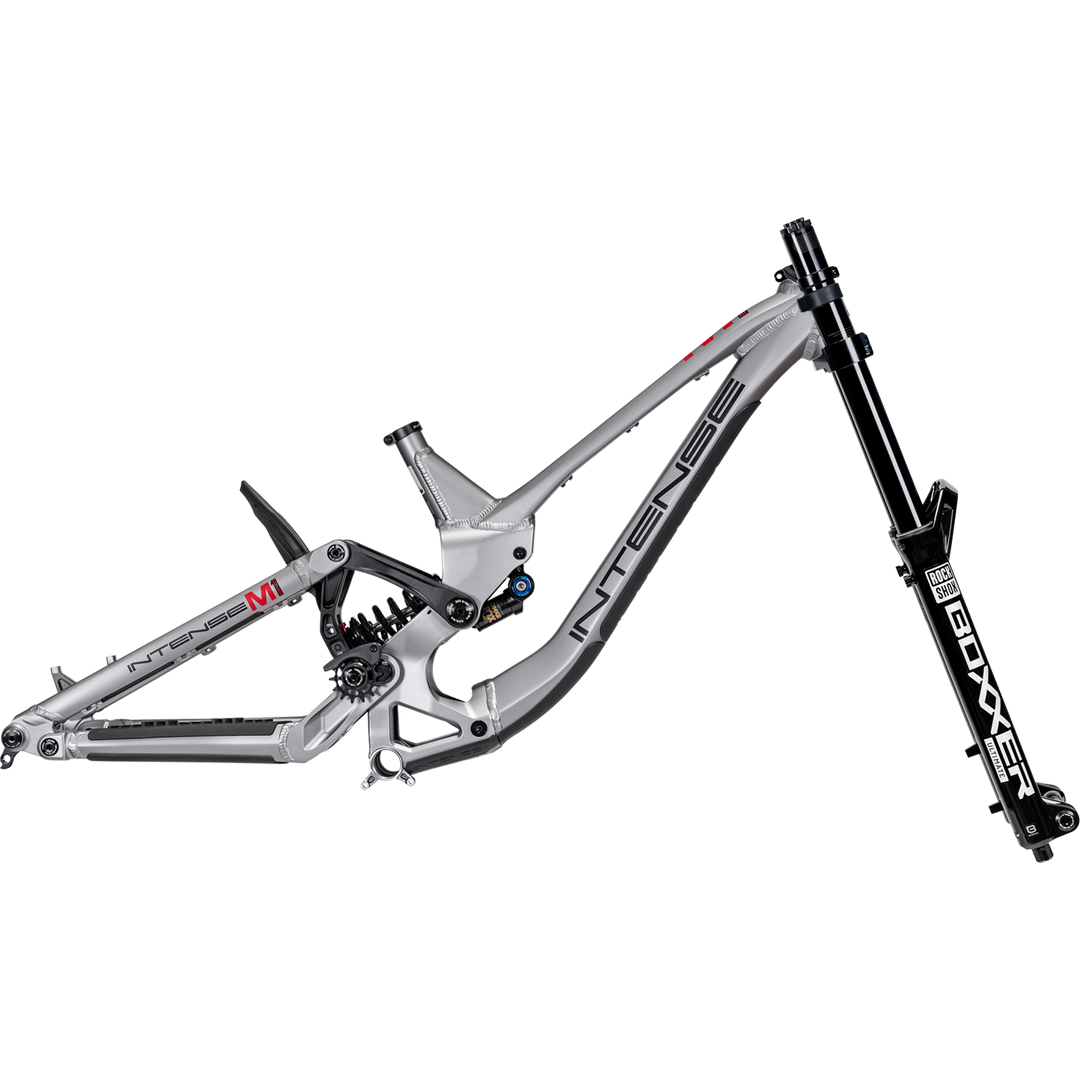

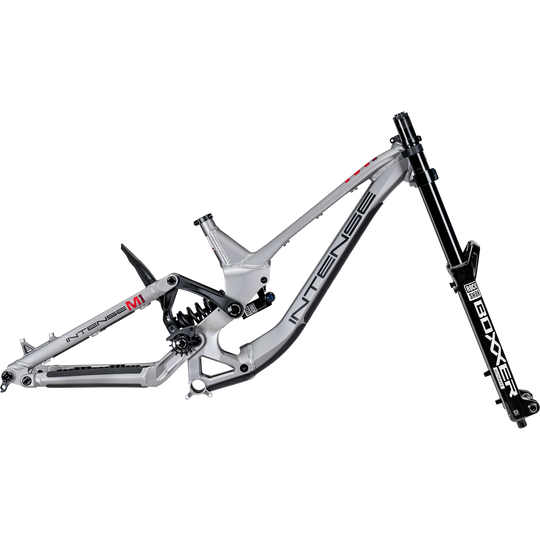

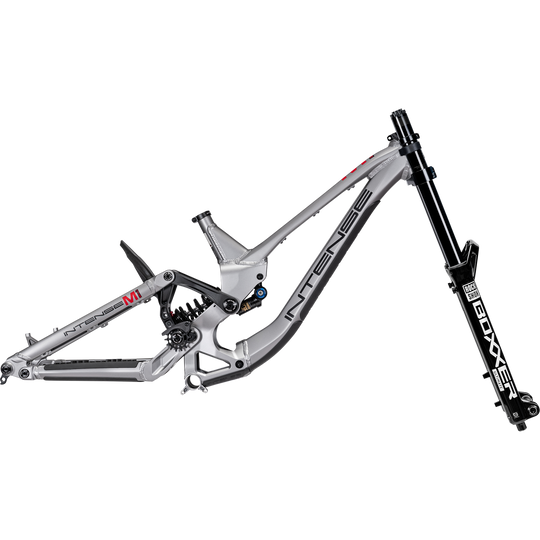

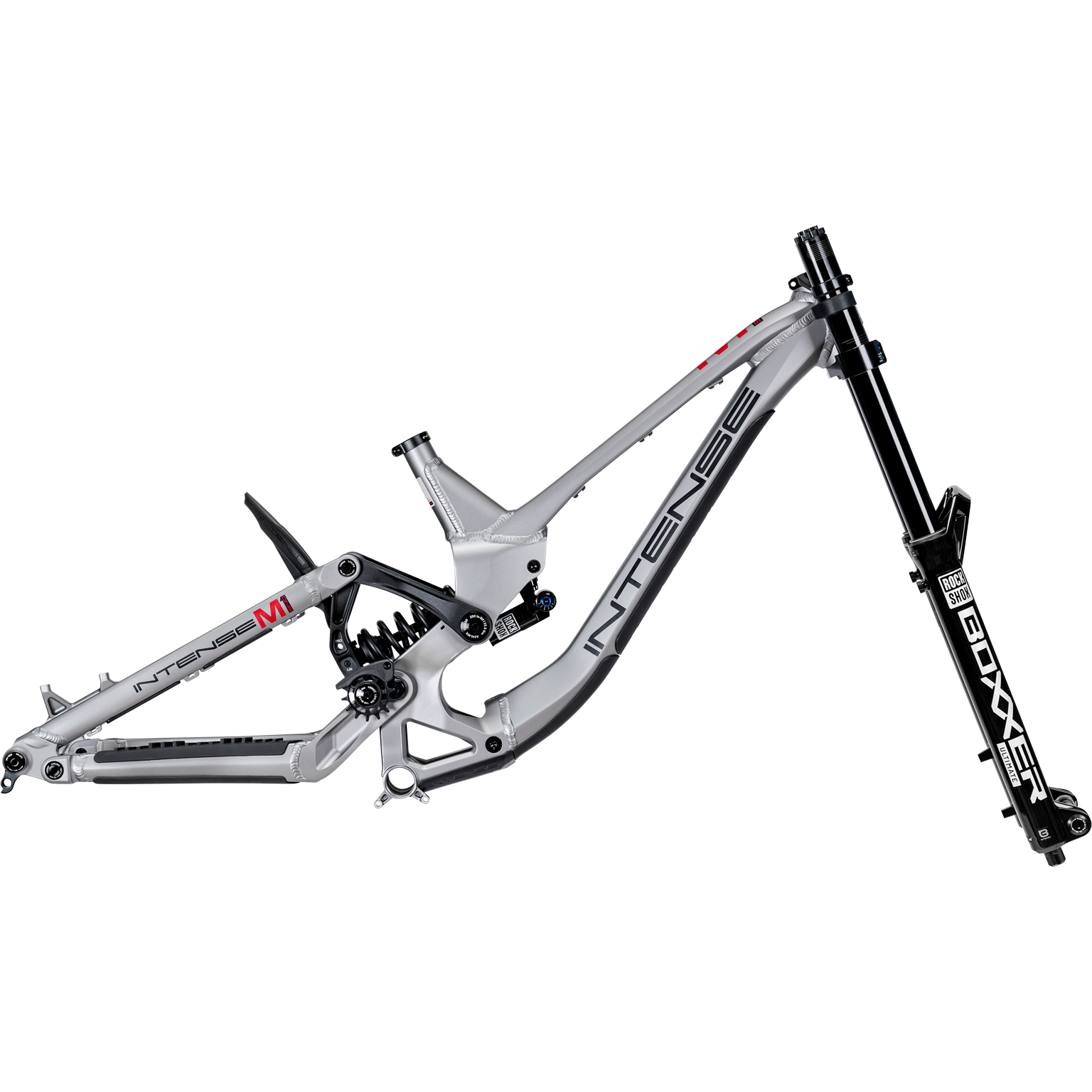

ROCKSHOX BOXXER | Charger™️ 3 RC2 dampers, downhill-tuned DebonAir+, ButterCups, SKF wiper seals, 20x110mm BOOST, 200mm travel. |
GEOMETRY | SM | MD | LG | XL |
Sizing | 5'0-5'6" | 5'4"-5'10" | 5'8"-6'2" | 6'1"-6'6" |
REACH | 430mm | 450mm | 470mm | 490mm |
HEADTUBE ANGLE | 63° | 63° | 63° | 63° |
SEATTUBE ANGLE (Effective) | 75° | 75° | 75° | 75° |
SEATUBE ANGLE (Actual) | 57° | 57° | 57° | 57° |
WHEELBASE | 1243mm | 1263mm | 1290mm | 1310mm |
CHAINSTAY LENGTH | 445mm | 445mm | 445mm | 445mm |
BB HEIGHT | 355mm | 355mm | 355mm | 355mm |
STACK | 628mm | 628mm | 641mm | 641mm |
TOPTUBE LENGTH | 593mm | 613mm | 637mm | 662mm |
HEADTUBE LENGTH | 100mm | 100mm | 115mm | 115mm |
BB DROP | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
SEATTUBE LENGTH | 405mm | 405mm | 440mm | 440mm |
STANDOVER HEIGHT | 812mm | 814mm | 821mm | 822mm |
FORK AXLE TO CROWN | 605mm | 605mm | 605mm | 605mm |

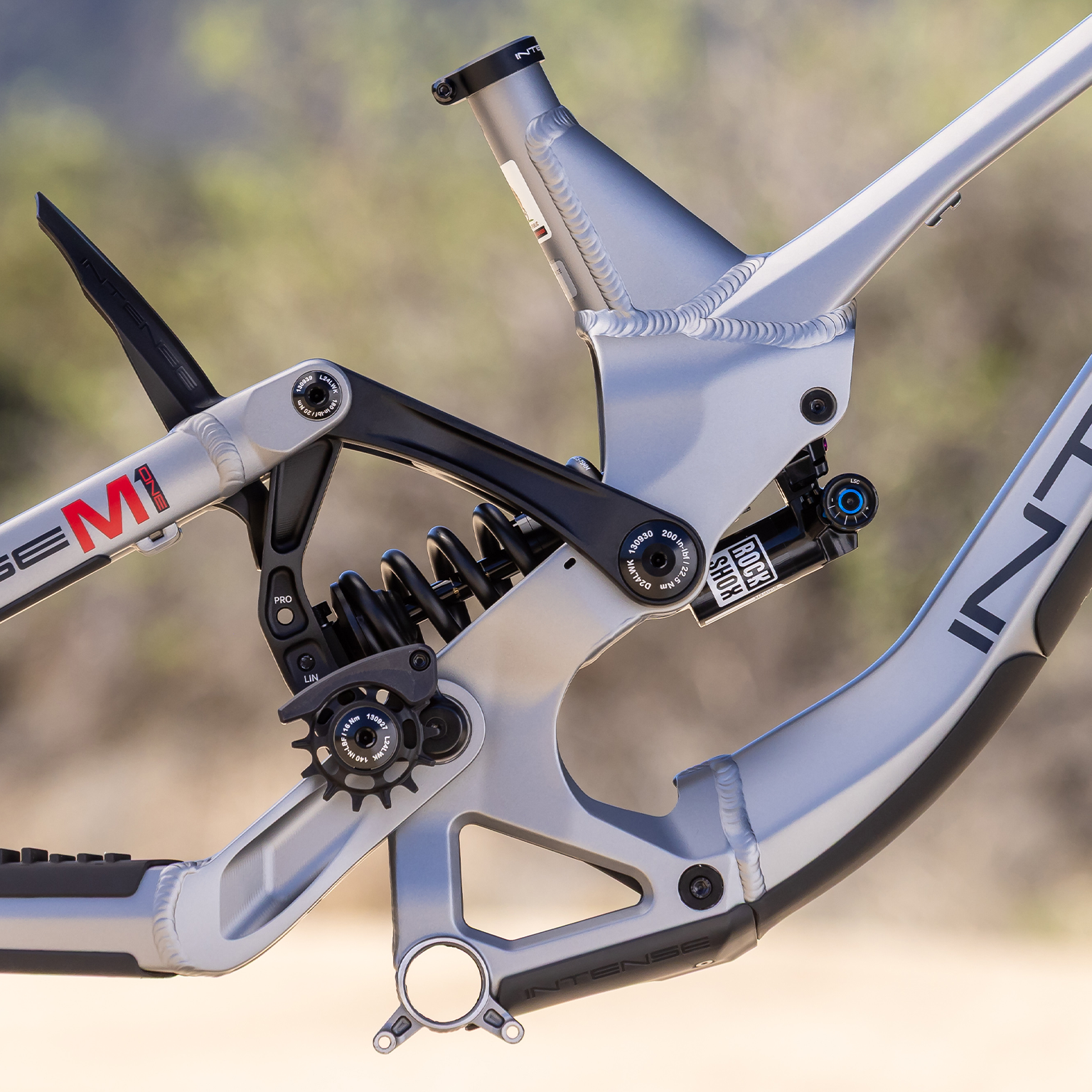

HIGH PIVOT

ULTIMATE SET-UP

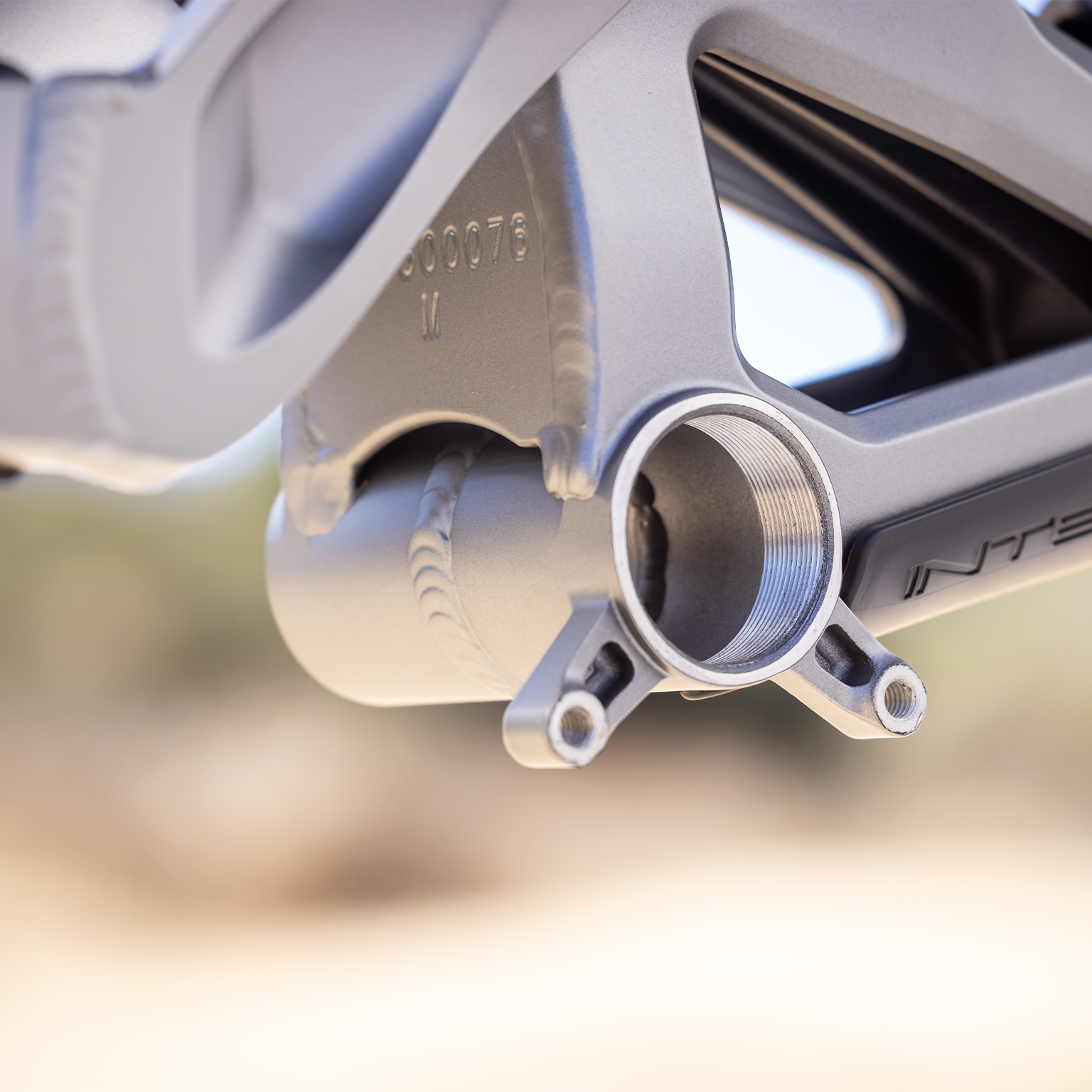

THREADED BB

EASY TO WORK ON

Full Size Head Tube
