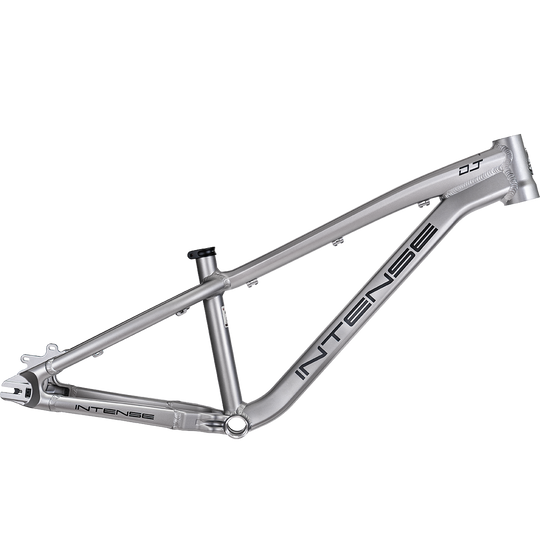

Designed around 26” wheels, the custom-butted 6061-T6 aluminum frame features modern dirt jump geometry – 68.5° headangle, 72° seattube angle and short 385-395mm (15.2”-15.6”) chainstays. The high-grade aluminum frame enables a lightweight, robust build ready for whatever you throw its way. Available in three sizes, so you can find the perfect fit. Size-down if you want more of a BMX/responsive feel or size up if you want more of an MTB/stable ride.

| BUILD | DJ |
| FRAME | Alloy 6061, triple-butted (T4, T6), threaded BB, and adjustable horizontal dropouts (135mm hub spacing), extra loop for brake hose. |

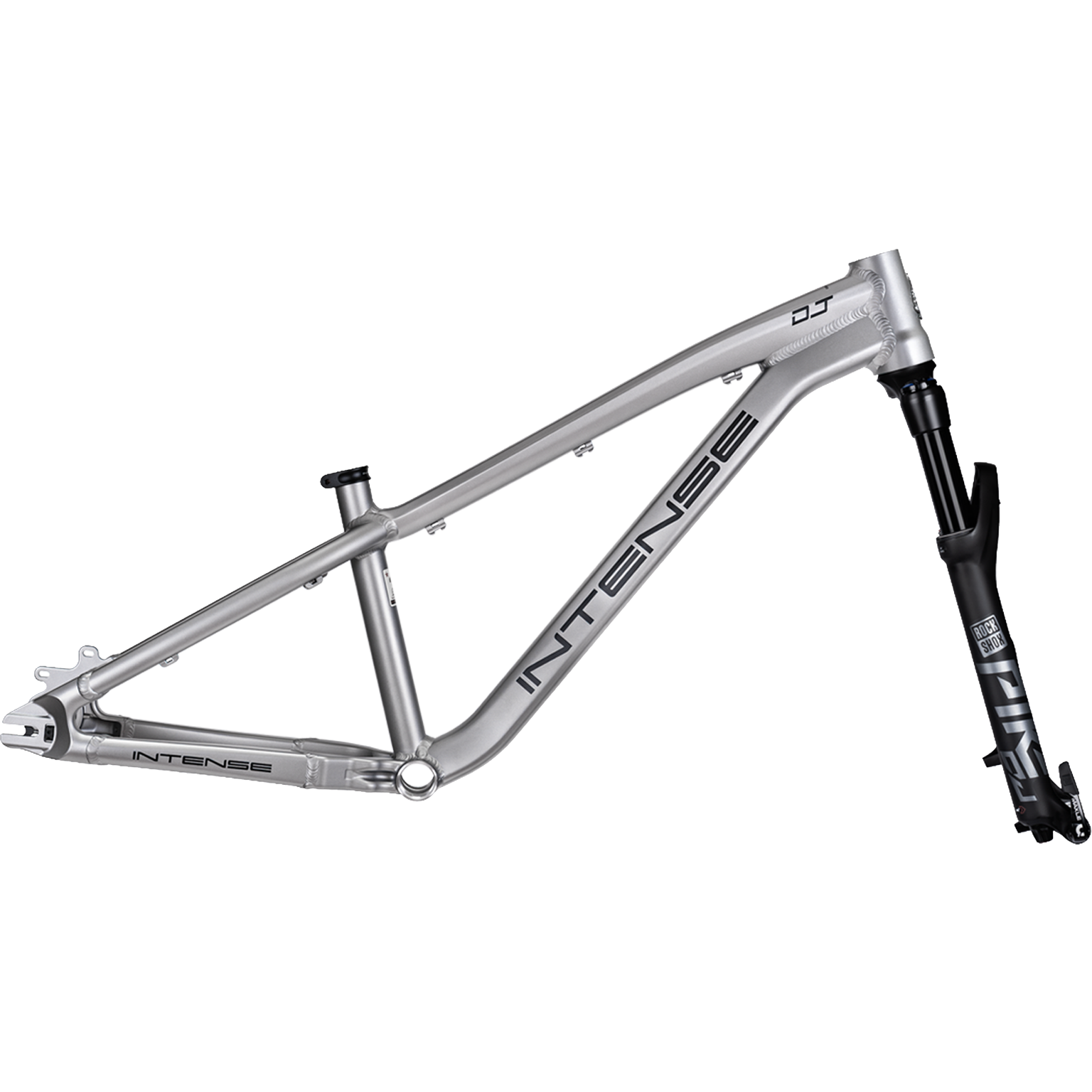

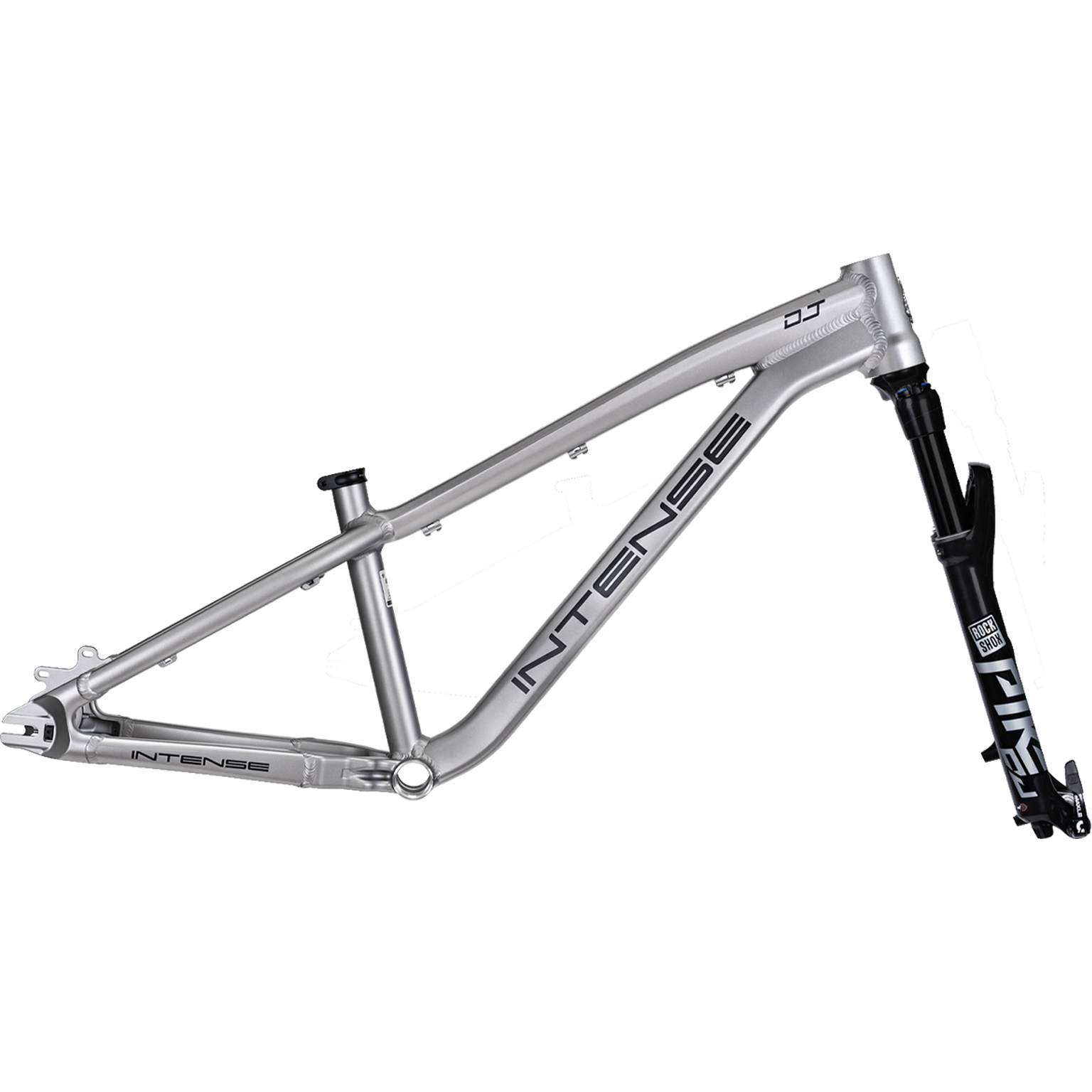

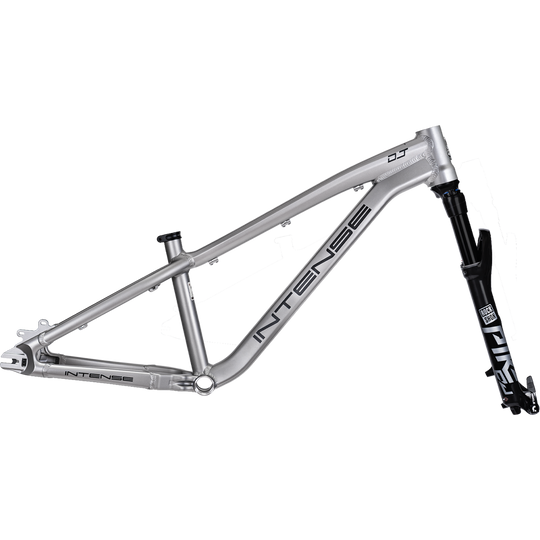

| ROCKSHOX PIKE | PIKE DJ, 26, 100mm, Charger, Solo Air, 35mm, anodized aluminum, 15x100mm, tapered. |
| FRAME SIZE | SM | MD | LG |
| WEIGHT (NO SHOCK) | 5lbs 4oz / 2.38kg | 5lbs 10oz / 2.55kg | 5lbs / 2.63kg |
| SIZING | 5'0-5'6" | 5'4"-5'10" | 5'8"-6'2" |
| REACH | 378mm | 403mm | 428mm |
| HEADTUBE ANGLE | 68.5° | 68.5° | 68.5° |
| SEATTUBE ANGLE (Effective) | 72° | 72° | 72° |
| WHEELBASE | 1016mm | 1041mm | 1066mm |
| CHAINSTAY LENGTH (MIN) | 385mm | 385mm | 385mm |
| CHAINSTAY LENGTH (MAX) | 395mm | 395mm | 395mm |
| BB DROP | 20mm | 20mm | 20mm |
| STACK | 560mm | 585mm | 610mm |
| TOPTUBE LENGTH | 560mm | 585mm | 610mm |
| HEADTUBE LENGTH | 115mm | 115mm | 115mm |
| SEATTUBE LENGTH | 315mm | 315mm | 315mm |
| MAX SEATPOST DEPTH | 200mm | 260mm | 260mm |
*Based off a 476mm axle to crown. The fork offset is based off 37mm. // **Based off Front tire OD of 660mm, Rear tire OD of 660mm

KEEP IT SIMPLE

MICRO ADJUST

THREADED BB

Tapered Head Tube

External Cable Routing
