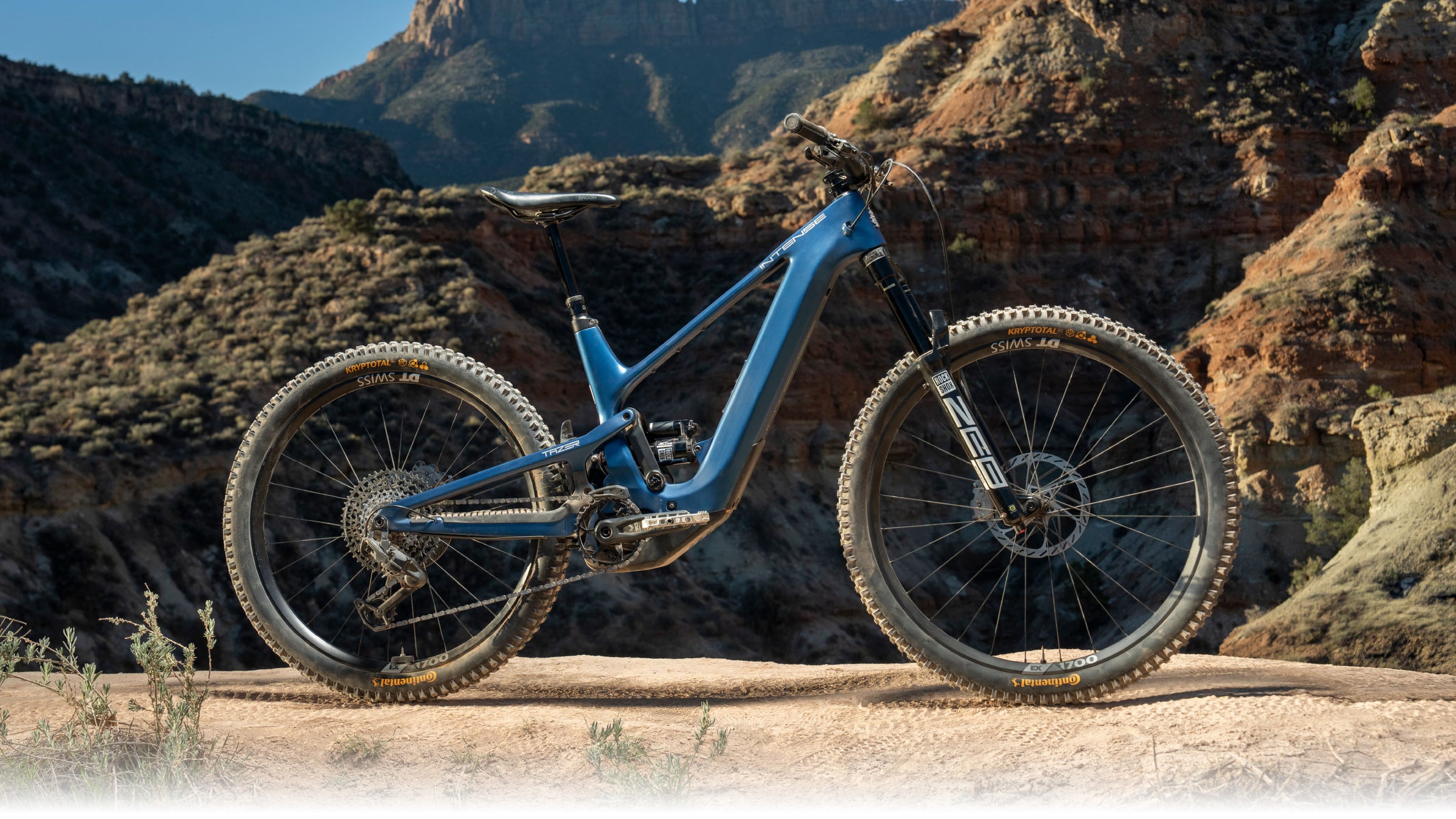

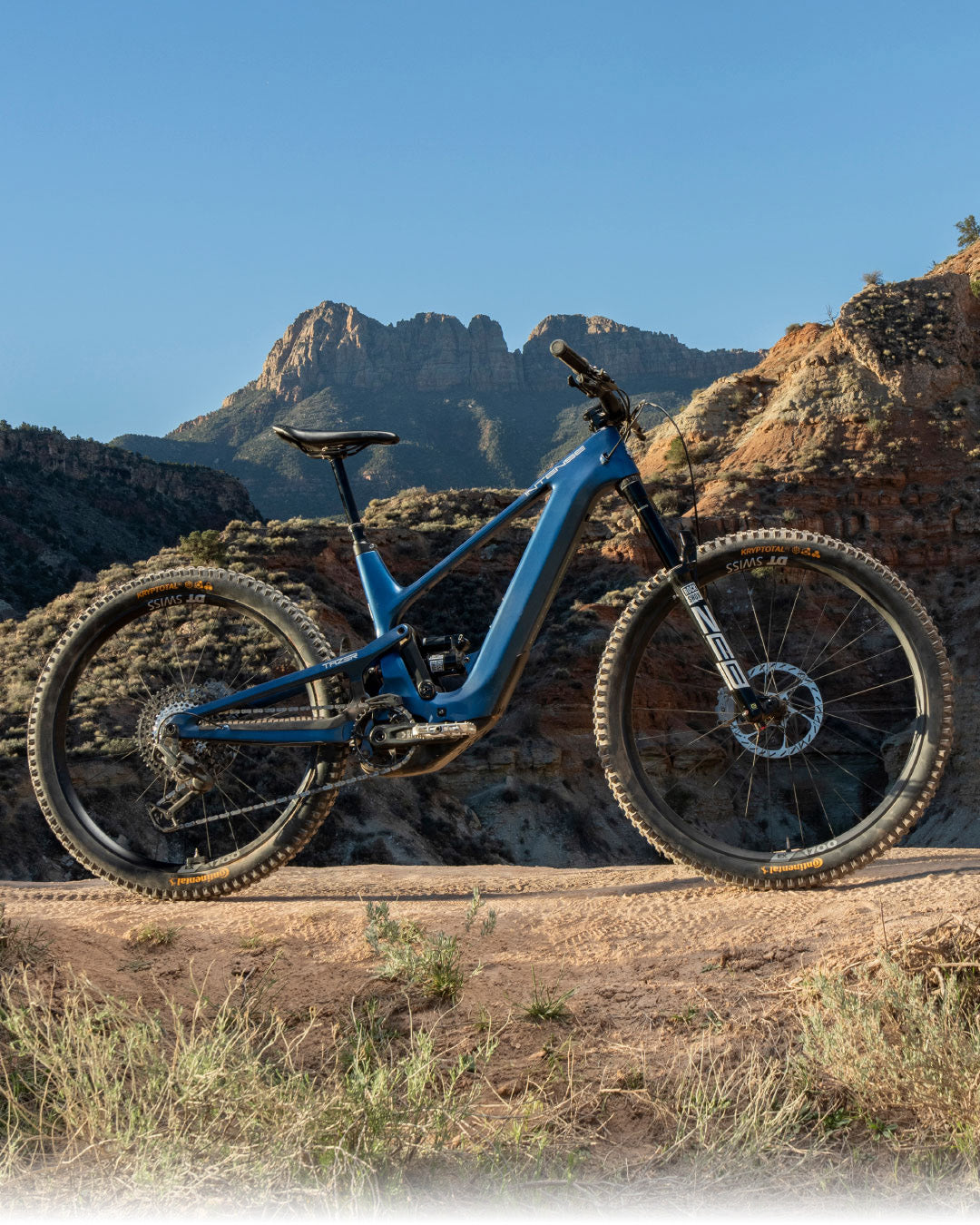

TRAIL E-MTB | 160mm/150MM | MX or 29" wheels
Built to push the limits of what a modern trail bike chassis is capable of, the all-new Tazer is the evolution of INTENSE Gravity DNA. Building off decades of speed-driven design paired with the Bosch Performance Line CX drive unit, the Tazer sets a new benchmark in powered trail riding.
The Tazer is a ground-up redesign built around the Dual Co-Rotating (DCR) Link suspension platform, engineered to deliver a ride that pushes you to go harder, faster, and further. Combined with Bosch’s latest fifth-generation Performance Line CX motor, delivering up to 120Nm of torque, the system and suspension work in complete unison. Maximizing traction, control, and confidence on every ride.
Available in both MX and 29” wheel configurations, with rider-tunable range options through 600Wh or 800Wh battery choices, and Powermore 250 compatibility. Offered in Satin Blue or UD Black, with the UD Black finish featuring a clear over carbon finish that reveals the raw carbon weave, giving every frame its own unique character and one of a kind appearance.
The result is a 160/150mm platform that delivers:
Reliable Power you need. Responsive Performance you Want.
Bring your All-New Custom Tazer build to life, with our 3D Configurator
| TAZER WITH 279 REAR | SM | MD | LG | XL |
| Reach | 430mm | 460mm | 480mm | 505mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (Effective) | 77.9° | 77.9° | 77.9° | 77.9° |
| Seattube Angle (Actual) | 72.8° | 72.8° | 72.8° | 72.8° |
| Wheelbase | 1205.4mm | 1241.9mm | 1266.1mm | 1293.3mm |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| Front Center | 756mm | 792.5mm | 816.8mm | 843.9mm |
| BB Height | 342mm | 342mm | 342mm | 342mm |
| Stack | 614.3mm | 627.8mm | 636.8mm | 641.4mm |
| Toptube Length | 560.9mm | 595mm | 617.8mm | 644.2mm |
| Headtube Length | 100mm | 115mm | 125mm | 130mm |
| BB Drop Front Wheel | 33mm | 33mm | 33mm | 33mm |
| BB Drop Rear Wheel | 13mm | 13mm | 13mm | 13mm |
| Seattube Length | 405mm | 415mm | 445mm | 470mm |
| Max Seatpost Insertion Depth | (S) 220mm | (M) 230mm | (L) 250mm | (XL) 280mm |
*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 715mm
| TAZER WITH 29 REAR | SM | MD | LG | XL |
| Reach | 430mm | 460mm | 480mm | 505mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (Effective) | 77.9° | 77.9° | 77.9° | 77.9° |
| Seattube Angle (Actual) | 72.8° | 72.8° | 72.8° | 72.8° |
| Wheelbase | 1206mm | 1242.5mm | 1266.8mm | 1293.9mm |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| Front Center | 756mm | 792.5mm | 816.8mm | 843.9mm |
| BB Height | 342mm | 342mm | 342mm | 342mm |
| Stack | 614.3mm | 627.8mm | 636.8mm | 641.4mm |
| Toptube Length | 560.9mm | 595mm | 617.8mm | 644.2mm |
| Headtube Length | 100mm | 115mm | 125mm | 130mm |
| BB Drop | 33mm | 33mm | 33mm | 33mm |
| Seattube Length | 405mm | 415mm | 445mm | 470mm |
| Max Seatpost Insertion Depth | (S) 220mm | (M) 230mm | (L) 250mm | (XL) 280mm |
*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 750mm
LEVERAGE RATIO: Compared to the previous Tazer, the all-new Tazer features a significantly refined suspension curve that remains smooth and consistent throughout the entire stroke. Where the old curve varied, the new one stays active and supple over chatter, builds progressively under load, and delivers confident support all the way to bottom-out.
AXLE PATH: The all-new Tazer features a significantly more rearward axle path compared to the original Tazer. Moving nearly 60% further back upon impact, the rear wheel now tracks up and over rocks, roots, and square edges rather than deflecting off them. That rearward movement translates to better bump compliance, improved traction, and a ride that stays smooth and planted.
| Model Year: 2027 |
| Category: E-Bike |
| Available Sizes: S, M, L, XL |
| Available Colors: Satin Blue, & UD Black |
| Frame Weight (No Shock): (S) TBD | (M) 24lbs 2 oz/ 10.94 Kg (L) 24lbs 5 oz/ 11.03 Kg (XL) TBD |
| Max Front Travel: 160mm |
| Max Rear Travel: 150mm |
| Non-Compatible Shocks: FOX Live Valve | RockShox Flight Attendant |
| Headset: ZS49 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.1mm (Intense Collar Only) |
| Max Seatpost Insertion Depth: (S) 220mm | (M) 230mm | (L) 250mm | (XL) 280mm |
| BB Shell Width: N/A |
| Max Chainring: 34T |
| Chainline: 55mm |
| Recommended Max Tire Width: 2.5mm |
| Brakes: Disc Brake Hydraulic, Post Mount / Direct |
| Min Brake Rotor Size: 200mm |
| Max Brake Rotor Size: 223mm (with adapter) |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Rear Hub Spacing: 12mm x 148mm Boost |
| Shock Size: 210mm x 55mm |
| Front Shock Mount Hardware: 8mm x 30mm |
| Rear Shock Mount Hardware: 8mm x 20mm |
INTENSE Gravity DNA
The all-new TAZER is the next evolution of INTENSE Gravity DNA. Forged from 33 years of building some of the world’s fastest bikes, it’s a ground-up design built around our DCR link platform. With an evolved silhouette and refined kinematics, the TAZER channels everything INTENSE stands for.
FEATURES
Tazer Evolved
Cleaner lines, minimized logos, and a fresh, modern look that speaks for itself. A sleek carbon front triangle pairs seamlessly with a sculpted rear design, creating a frame that’s as visually striking.
Dual Co-Rotating Link Suspension
Our Dual Co-Rotating Link (DCR) suspension keeps the chassis low, calm, and planted, so the bike tracks the ground and gives you incredible cornering traction, yet still feels playful, and highly active when you push into the trail.
Bosch Performance Line CX Gen 5
With 120nm of max torque and 750w of peak power, the BOSCH performance line cx drive unit delivers up to 600% motor support.
Frame Protection
Integrated frame protection keeps the front and rear triangle looking new, while a built-in rear fender helps shield the shock from dirt and debris.
Full Water Bottle & Accessory Mount
Equipped with a full water bottle and accessory mount under the top tube gives you a secure place to carry tools, air canisters, tire irons, and other essentials.
MX & 29" Configuration
Available in MX or full 29” rear triangle configurations. The Tazer is suited to match your riding style.
