Regular price$5,999.00
/

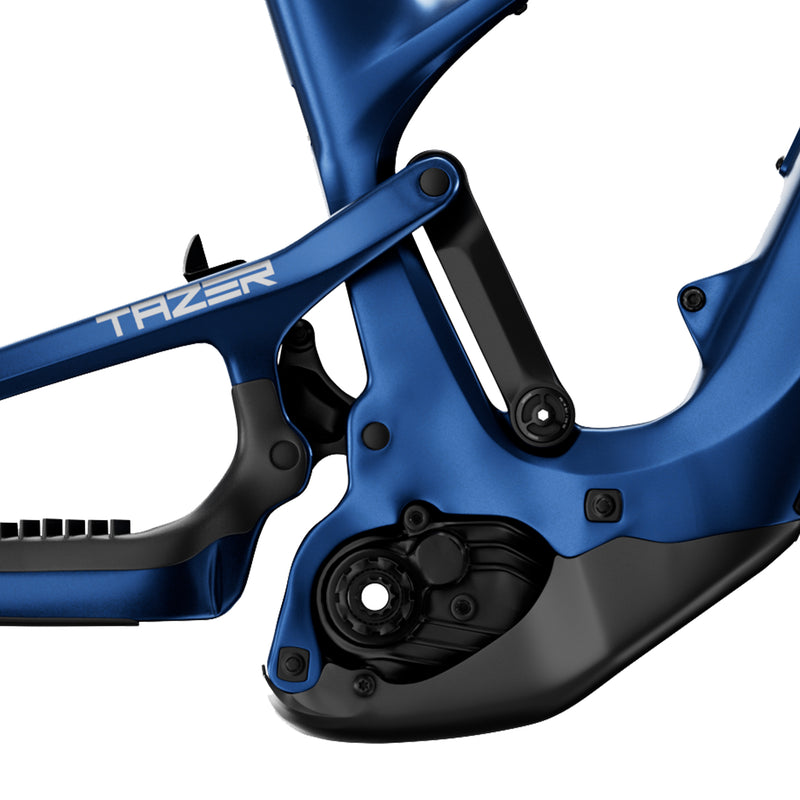

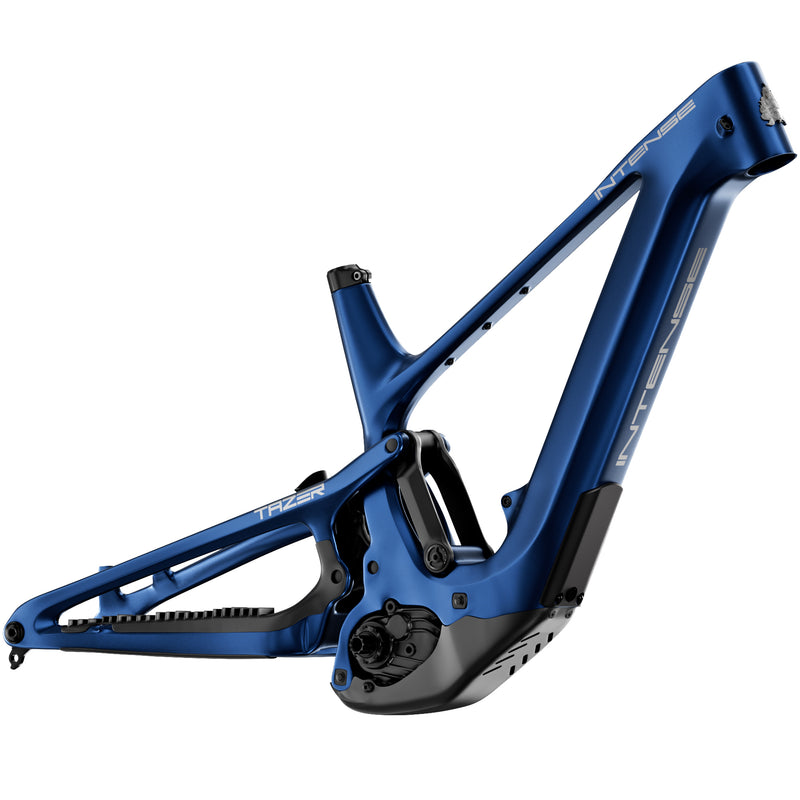

The All-New Tazer is a ground-up redesign built around the new Dual Co-Rotating (DCR) Link suspension platform, tailored specifically for powered riding. Paired with Bosch’s latest fifth-generation Performance Line CX motor, delivering up to 120Nm of torque, the system and suspension are engineered to work in complete unison—eliminating the traditional compromises between power and performance.

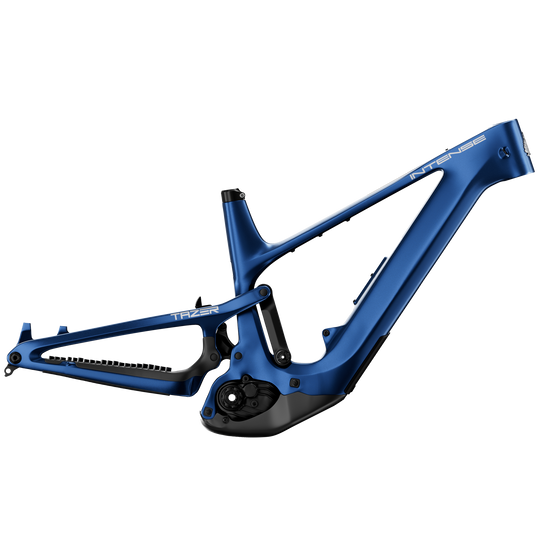

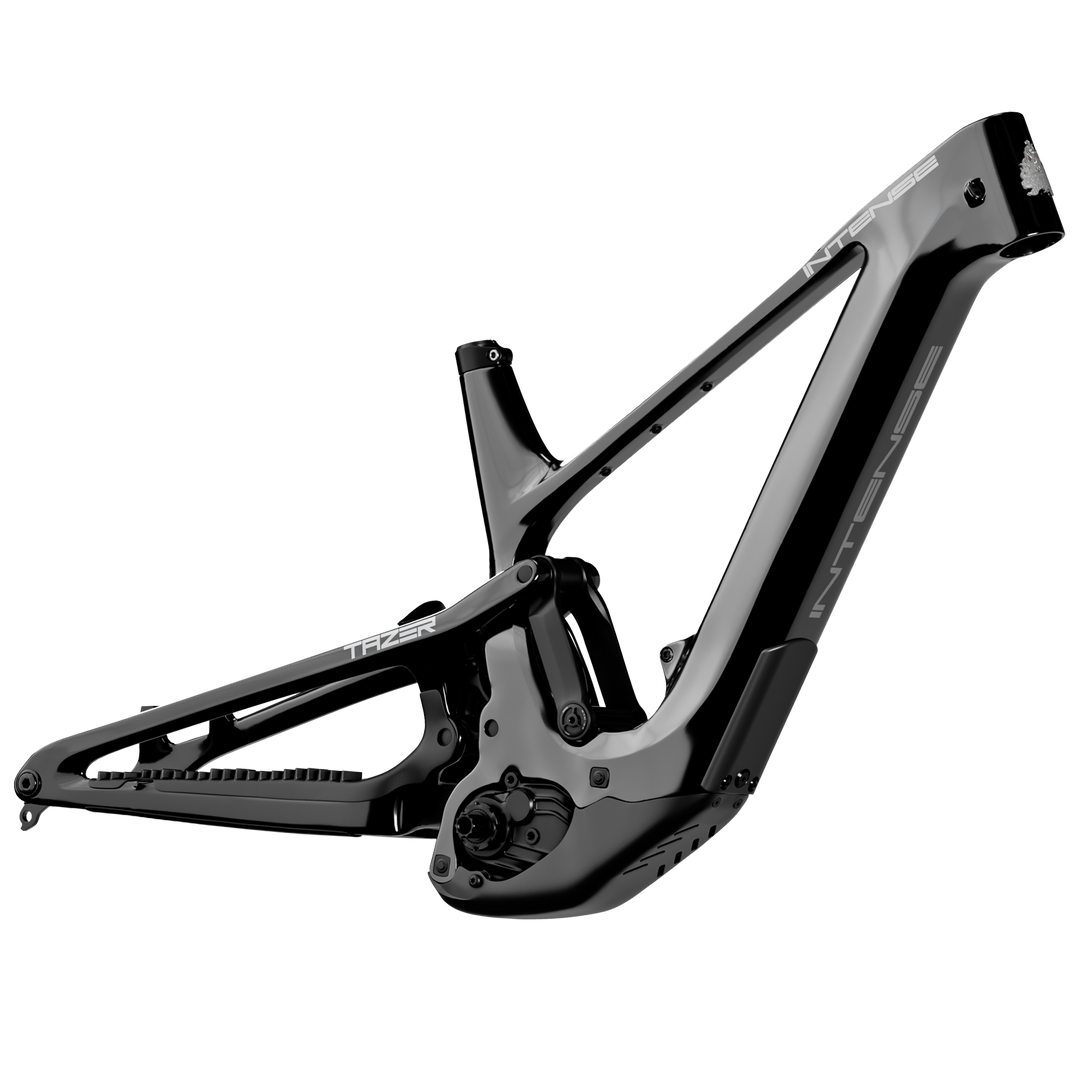

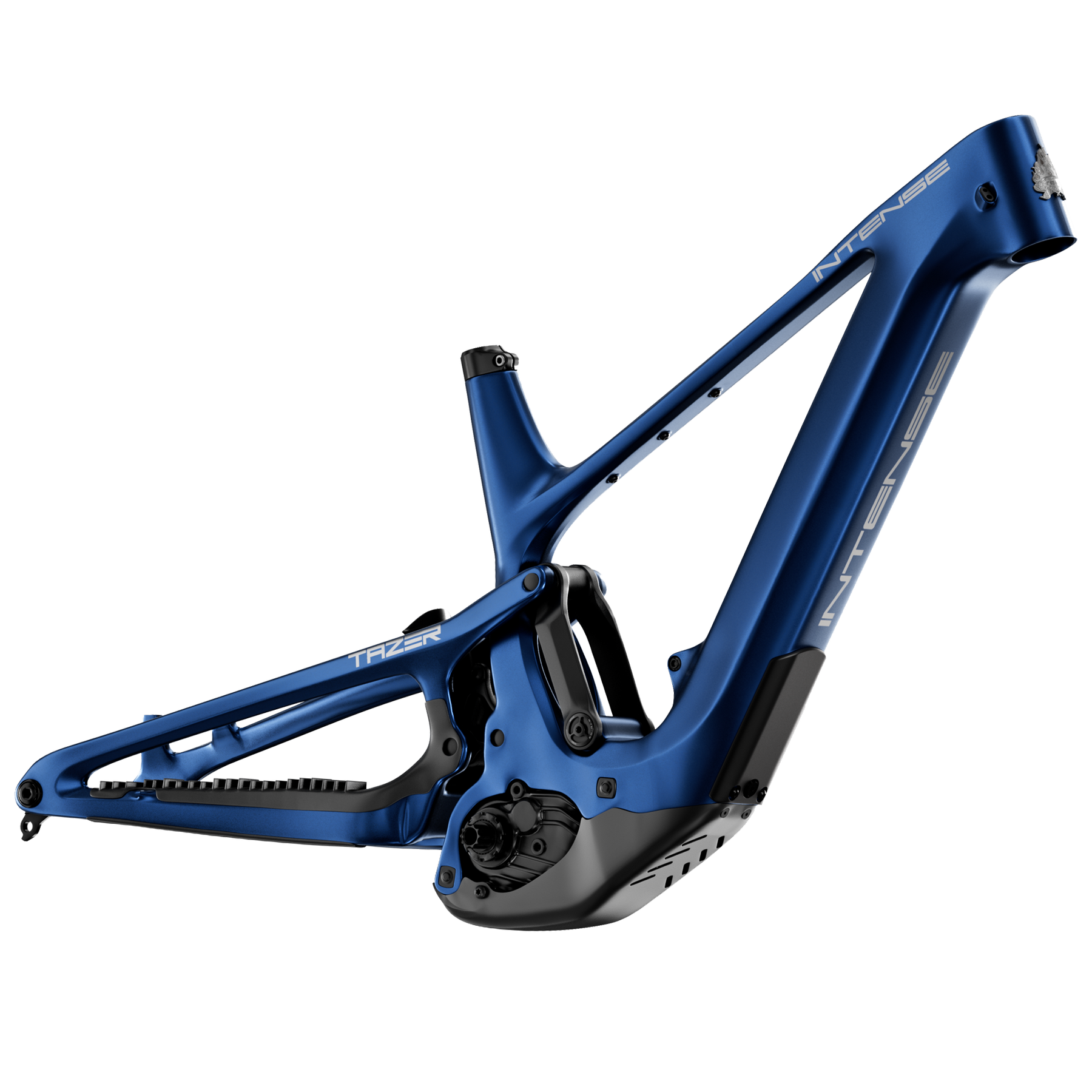

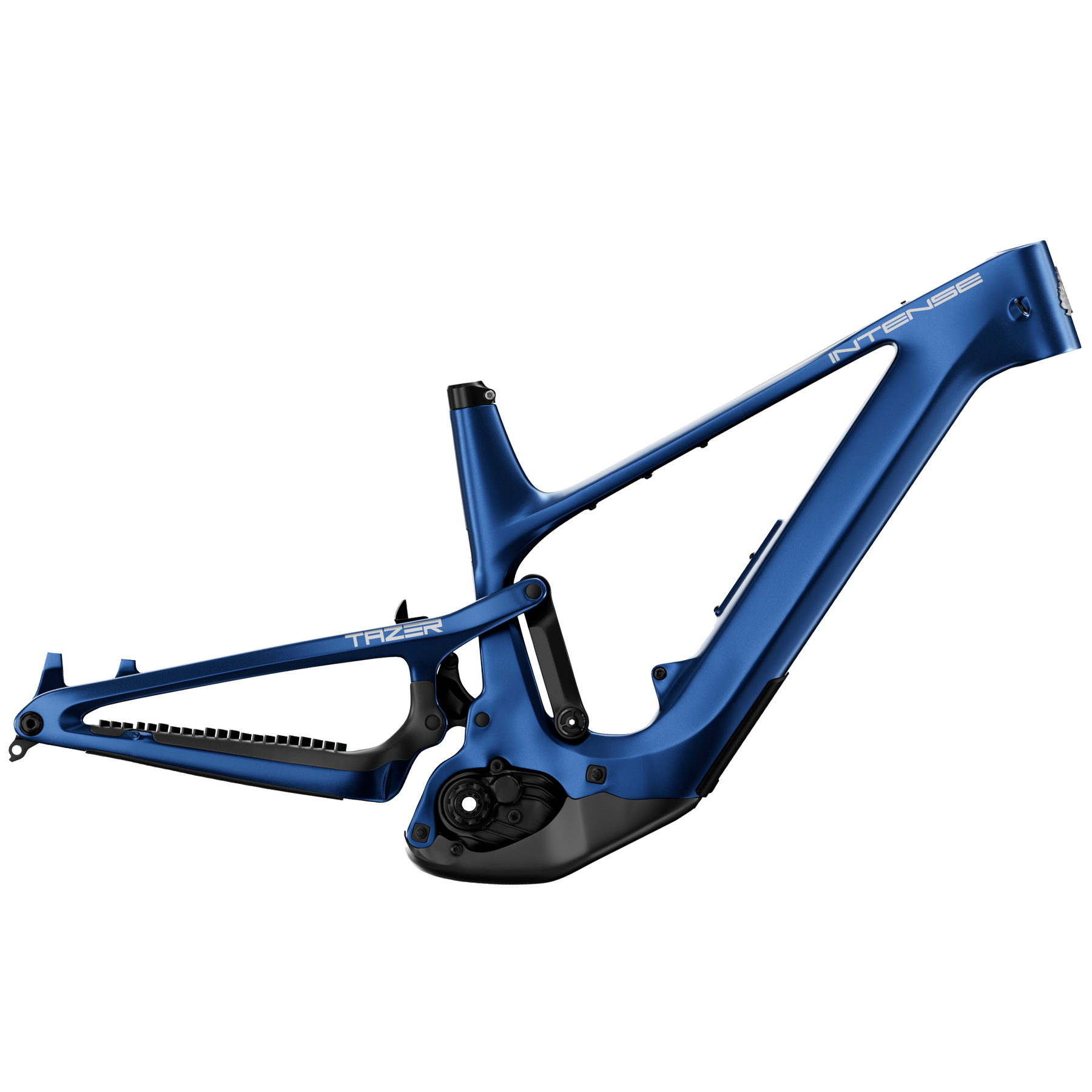

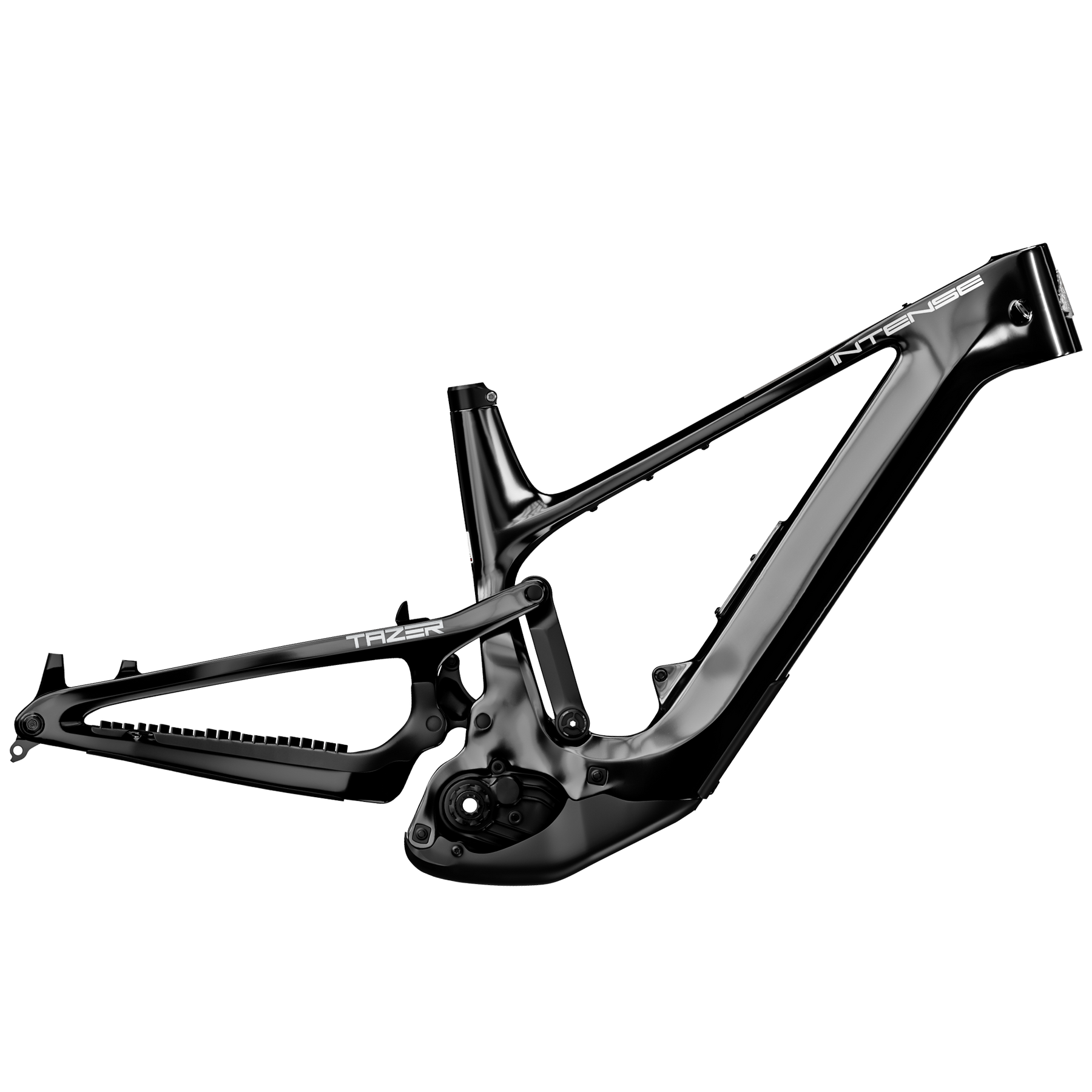

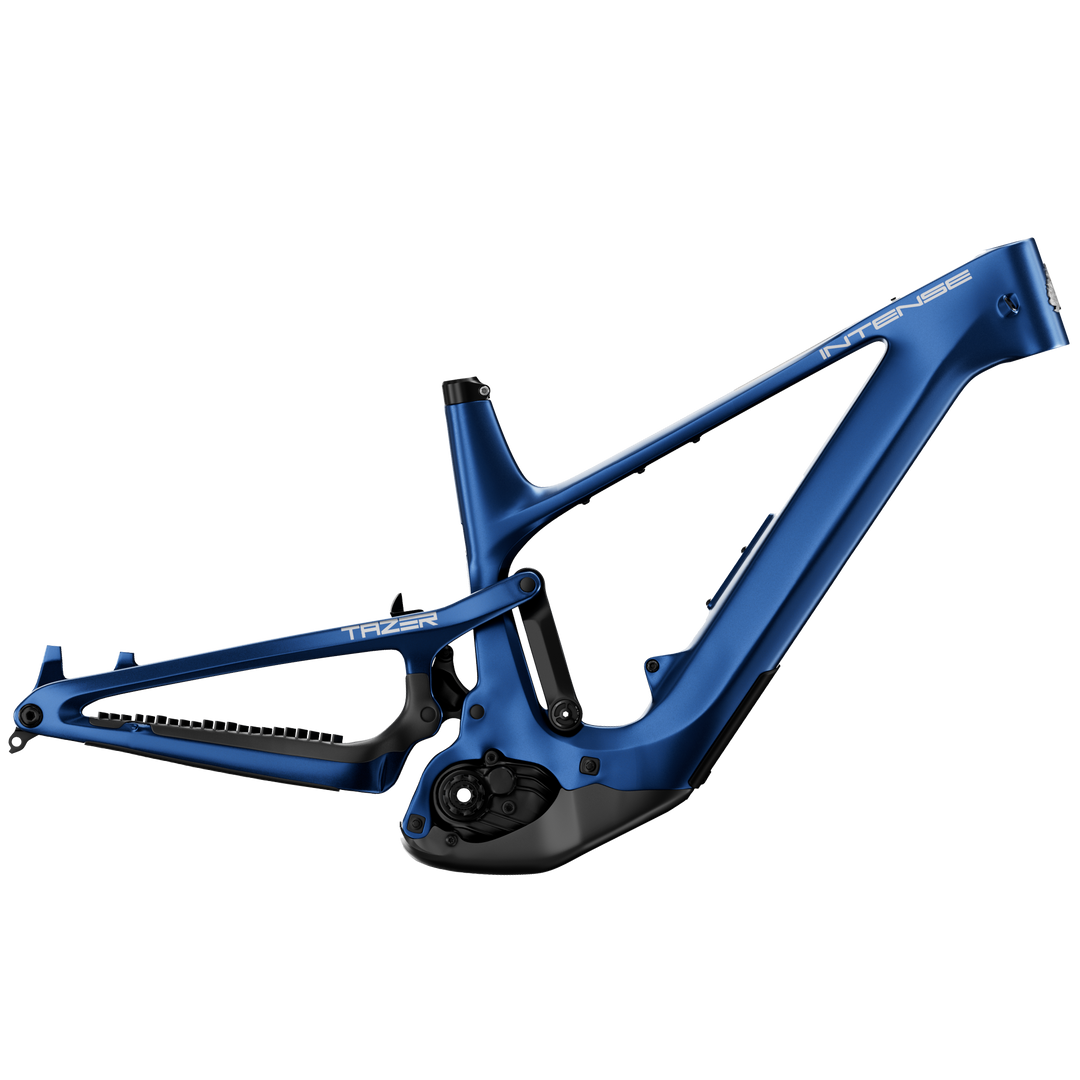

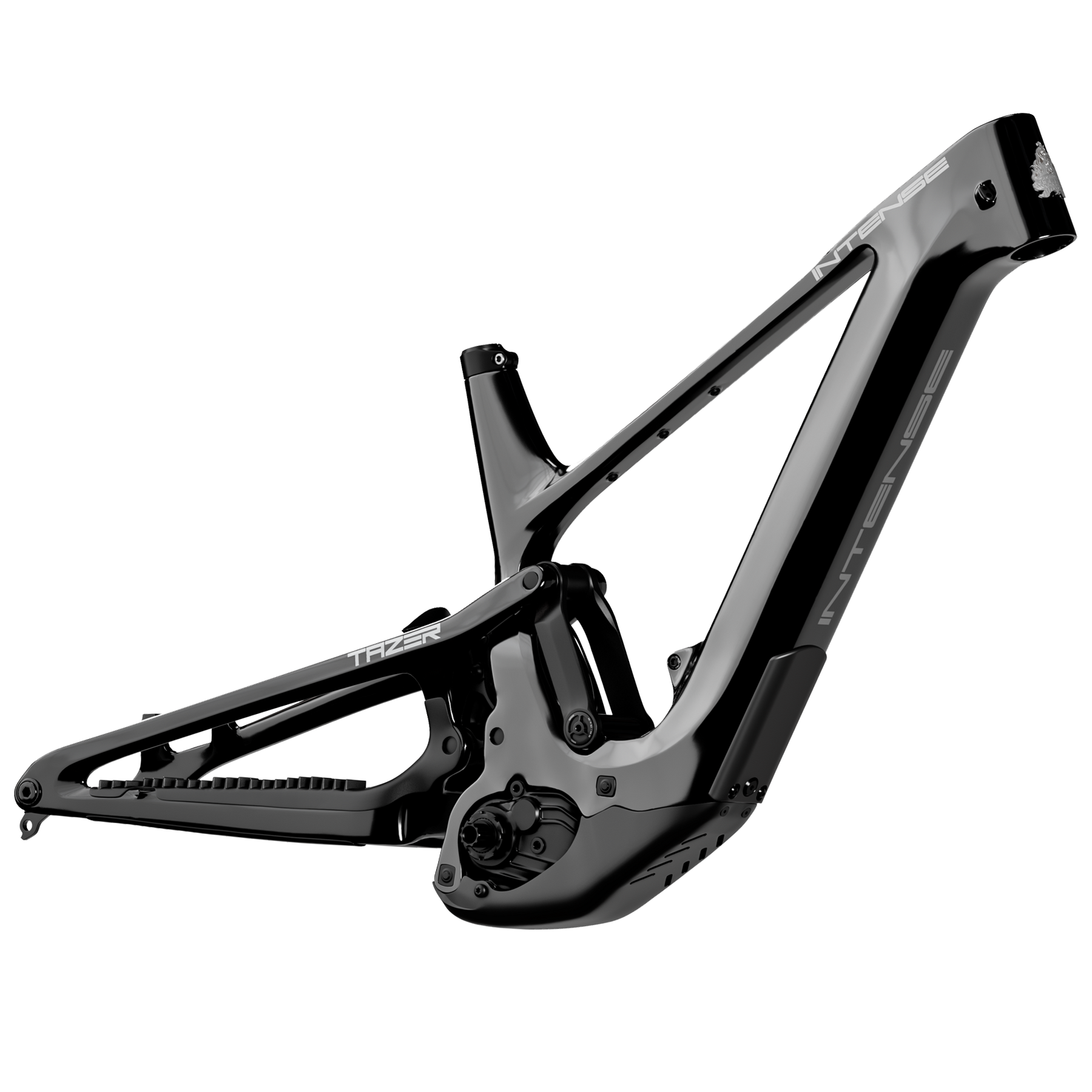

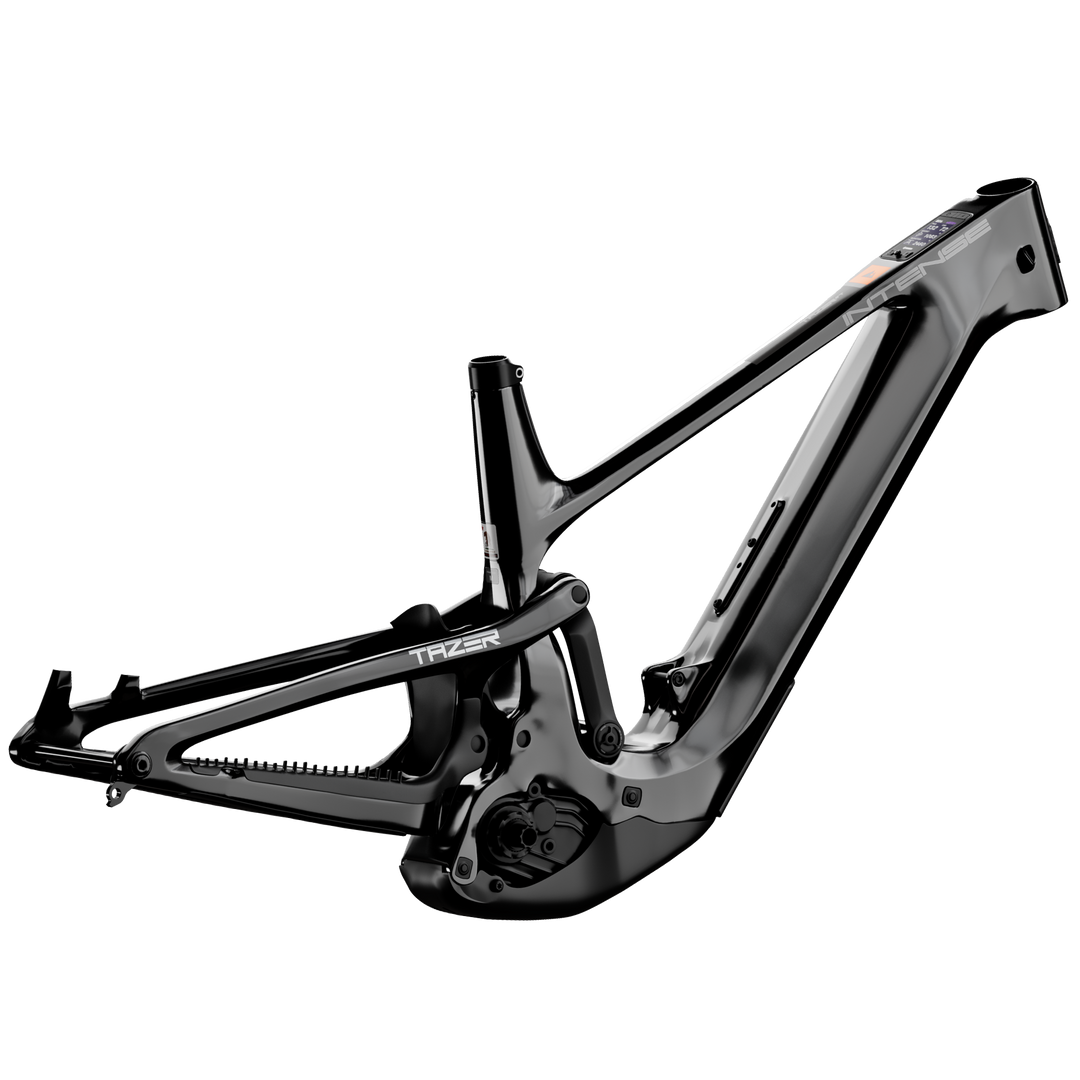

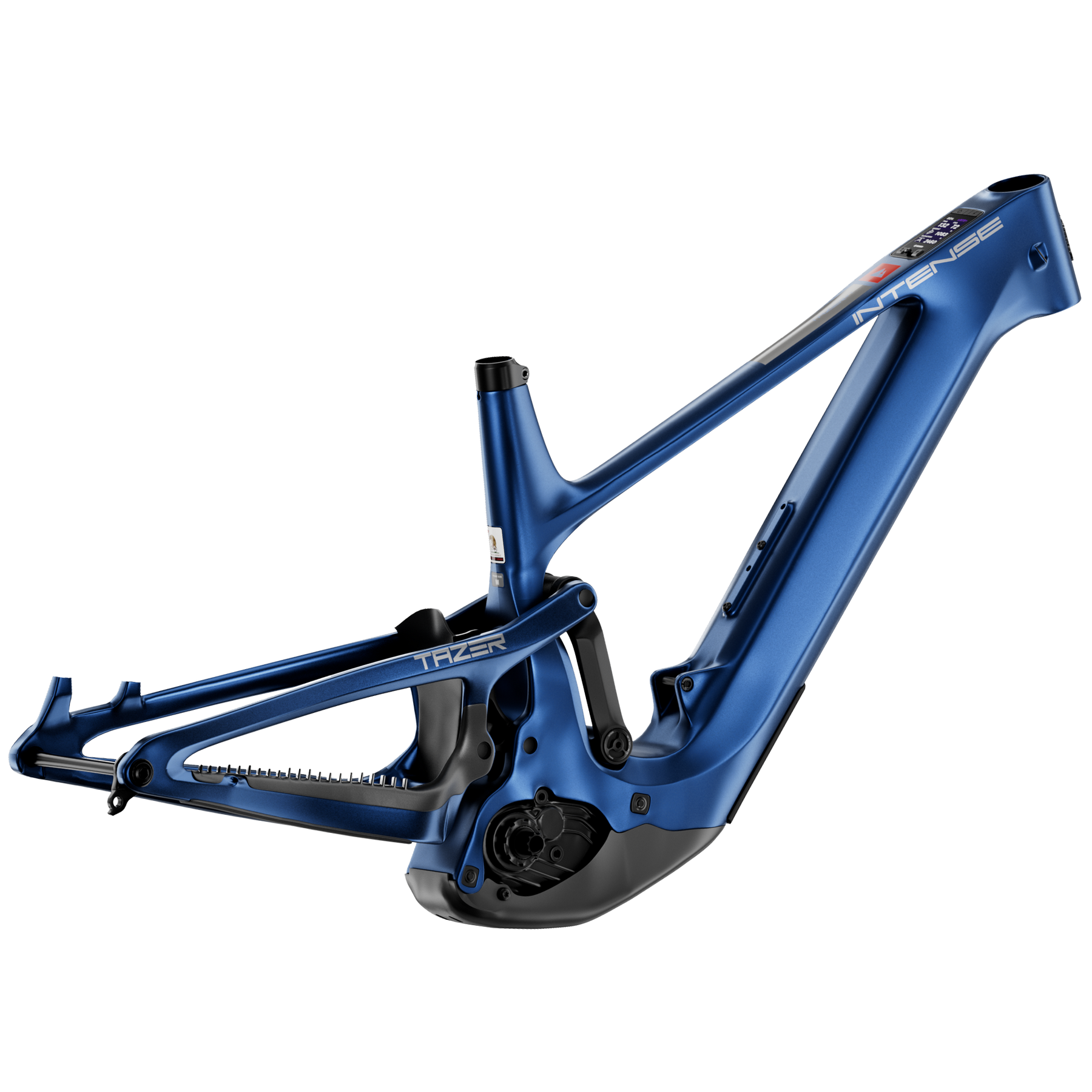

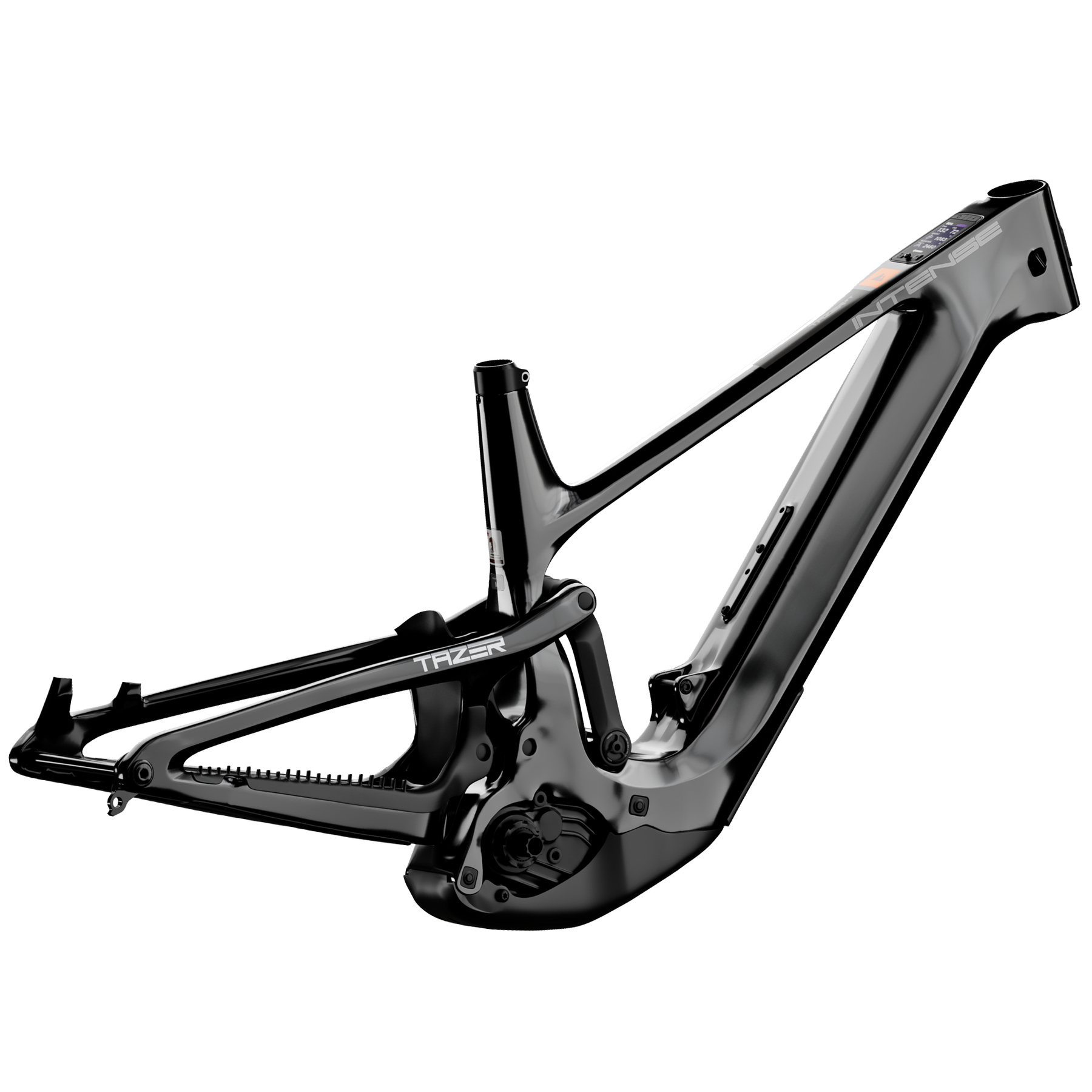

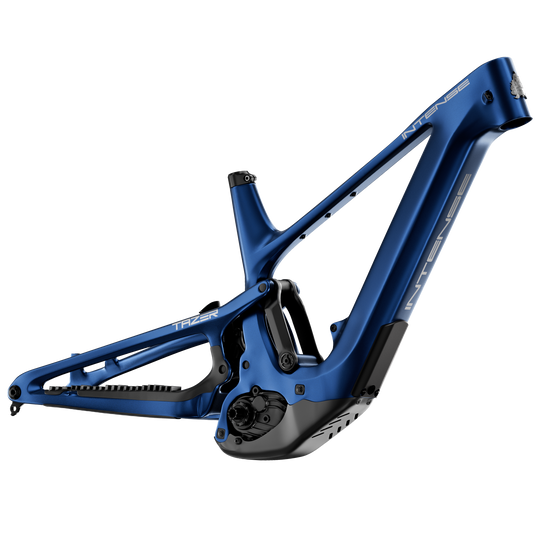

Available in both MX and 29” wheel configurations, with rider-tunable range options through 600Wh or 800Wh battery choices, and Powermore 250 compatibility. Offered in Satin Blue or UD Black, with the UD Black finish featuring a clear over carbon finish that reveals the raw carbon weave, giving every frame its own unique character and one of a kind appearance.

Wheel Size & Frame Color
Shock
Frame Size

Bring your All-New Custom Tazer build to life, with our 3D Configurator

TAZER WITH 279 REAR SM MD LG XL
Reach 430mm 460mm 480mm 505mm
Headtube Angle 64.5° 64.5° 64.5° 64.5°
Seattube Angle (Effective) 77.9° 77.9° 77.9° 77.9°
Seattube Angle (Actual) 72.8° 72.8° 72.8° 72.8°
Wheelbase 1205.4mm 1241.9mm 1266.1mm 1293.3mm
Chainstay Length 445mm 445mm 445mm 445mm
Front Center 756mm 792.5mm 816.8mm 843.9mm
BB Height 342mm 342mm 342mm 342mm
Stack 614.3mm 627.8mm 636.8mm 641.4mm
Toptube Length 560.9mm 595mm 617.8mm 644.2mm
Headtube Length 100mm 115mm 125mm 130mm
BB Drop Front Wheel 33mm 33mm 33mm 33mm
BB Drop Rear Wheel 13mm 13mm 13mm 13mm
Seattube Length 405mm 415mm 445mm 470mm
Max Seatpost Insertion Depth (S) 220mm (M) 230mm (L) 250mm (XL) 280mm

*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 715mm

TAZER WITH 29 REAR SM MD LG XL
Reach 430mm 460mm 480mm 505mm
Headtube Angle 64.5° 64.5° 64.5° 64.5°
Seattube Angle (Effective) 77.9° 77.9° 77.9° 77.9°
Seattube Angle (Actual) 72.8° 72.8° 72.8° 72.8°
Wheelbase 1206mm 1242.5mm 1266.8mm 1293.9mm
Chainstay Length 450mm 450mm 450mm 450mm
Front Center 756mm 792.5mm 816.8mm 843.9mm
BB Height 342mm 342mm 342mm 342mm
Stack 614.3mm 627.8mm 636.8mm 641.4mm
Toptube Length 560.9mm 595mm 617.8mm 644.2mm
Headtube Length 100mm 115mm 125mm 130mm
BB Drop 33mm 33mm 33mm 33mm
Seattube Length 405mm 415mm 445mm 470mm
Max Seatpost Insertion Depth (S) 220mm (M) 230mm (L) 250mm (XL) 280mm

*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 750mm

Spider Frame Size Chart
Model Year: 2027
Category: E-Bike
Available Sizes: S, M, L, XL
Available Colors: Satin Blue, & UD Black
Frame Weight (No Shock): (S) TBD | (M) 24lbs 2 oz/ 10.94 Kg | (L) 24lbs 5 oz/ 11.03 Kg | (XL) TBD
Max Front Travel: 160mm
Max Rear Travel: 150mm
Non-Compatible Shocks: FOX Live Valve | RockShox Flight Attendant
Headset: ZS49 Upper/ ZS56 Lower
Seattube Diameter: 31.6mm
Seatpost Clamp: 36.1mm (Intense Collar Only)
Max Seatpost Insertion Depth: (S) 220mm | (M) 230mm | (L) 250mm | (XL) 280mm
BB Shell Width: N/A
Max Chainring: 34T
Chainline: 55mm
Recommended Max Tire Width: 2.5mm
Brakes: Disc Brake Hydraulic, Post Mount/ Direct
Min Brake Rotor Size: 200mm
Max Brake Rotor Size: 223mm (with adapter)
Derailleur Hanger: UDH
T-Type Compatible: Yes
Rear Hub Spacing: 12mm x 148mm Boost
Shock Size: 210mm x 55mm
Front Shock Mount Hardware: 8mm x 30mm
Rear Shock Mount Hardware: 8mm x 20mm
Frame
Material: Size-Specific Carbon Layup

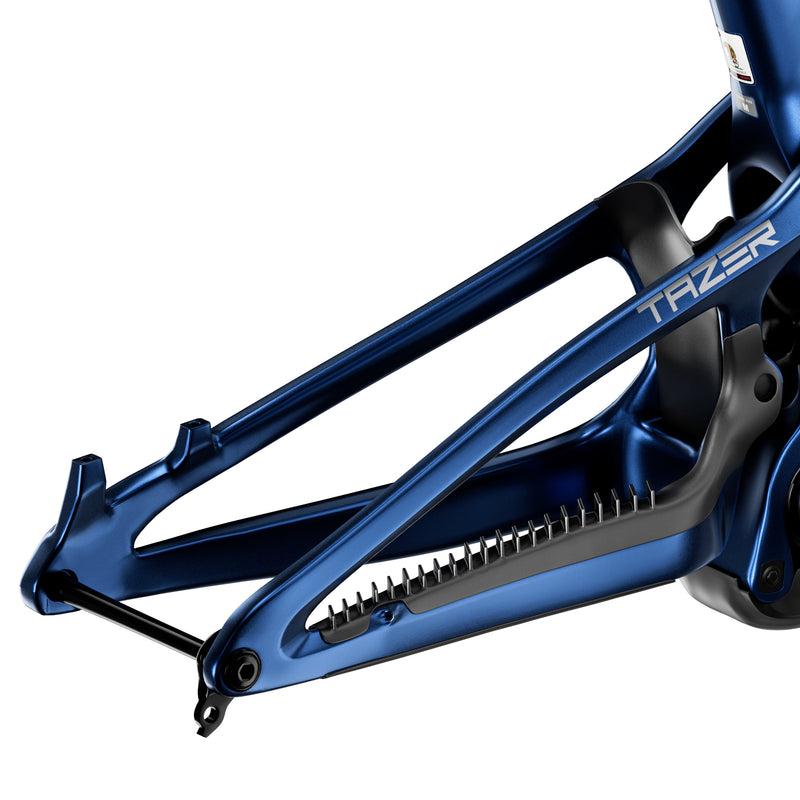

Wheel Size: MX or Full 29" Platform
Front / Rear Travel: 160mm / 150mm
Derailleur Hanger: UDH
T-Type Compatible: Yes
Cable Routing: Fully guided internal

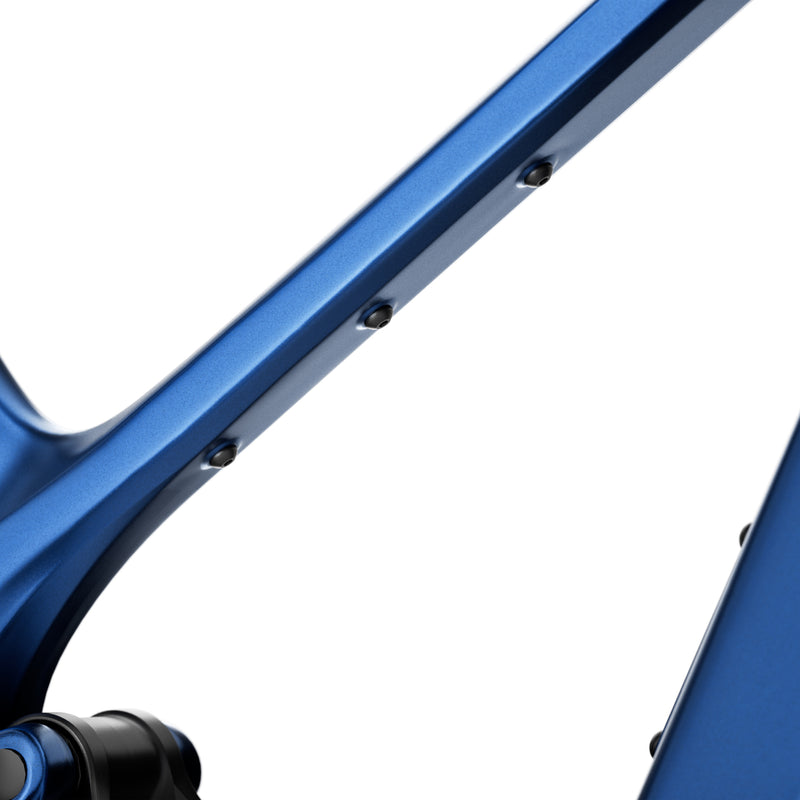

Accessory Mount: Integrated mount under top tube

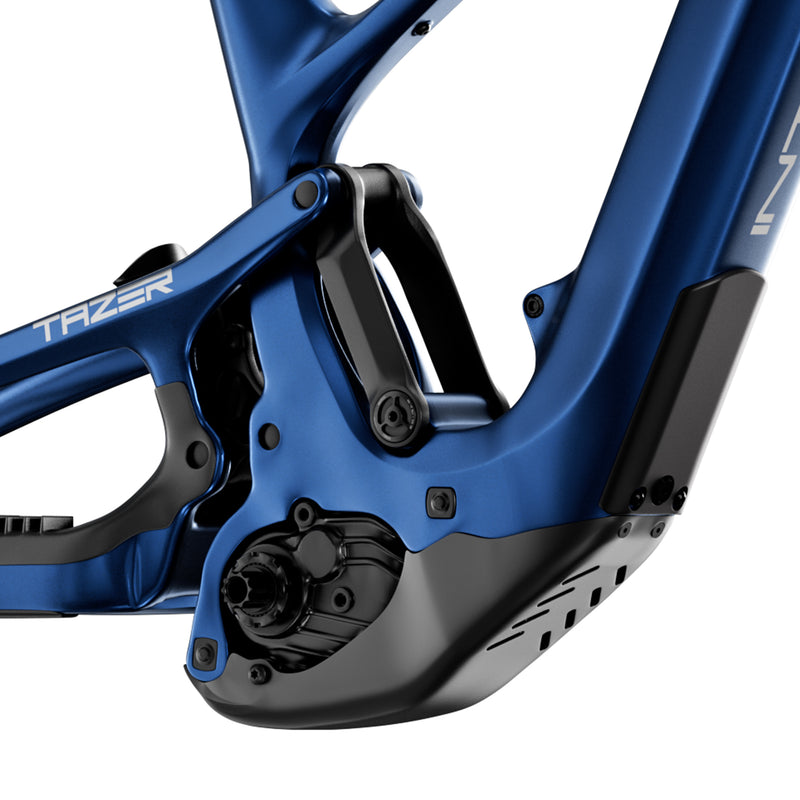

Frame Protection: Custom molded protection
Rear Fender: Integrated

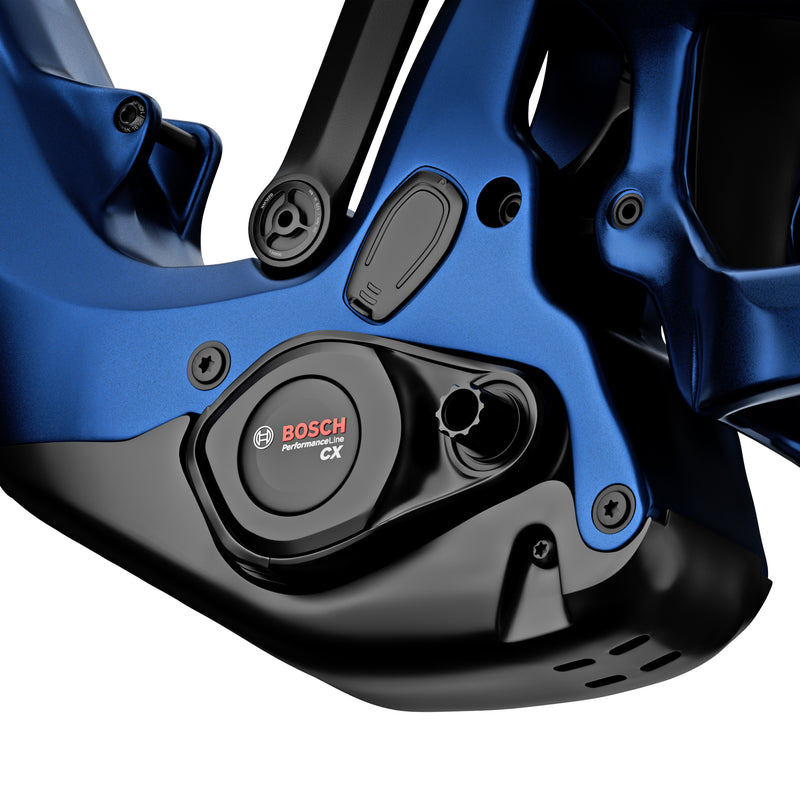

Bosch E-Components Motor: Performance Line CX Gen 5
Display: Kiox 400C
Battery: 800Wh
RockShox Super Deluxe Ultimate Damper: RC2T
Spring: DebonAir+ Linear XL Air Can
Adjustments: High-Speed Compression / Low-Speed Compression / Rebound
Modes: Open / Pedal / Lock (or Threshold)
Bottom-Out: Hydraulic Bottom-Out + Air Volume Adjustment (tokens)
Tune: Custom
Eye-to-Eye / Stroke: 210mm x 55mm
Mounting Hardware: Front: 8mm x 30mm / Rear: 8mm x 20mm
Fox Float X Factory Damper: FOX Float X Damper
Spring: EVOL LV Air Spring
Adjustments: Low-Speed Compression / Rebound
Modes: 2-position lever, Open / Firm
Bottom-Out: MCU Bottom-Out Bumper + Air Volume Spacers
Tune: Custom
Finish: Kashima Coating
Eye-to-Eye / Stroke: 210mm x 55mm
Mounting Hardware: Front: 8mm x 30mm / Rear: 8mm x 20mm
