Build Your Spider, Your Way!

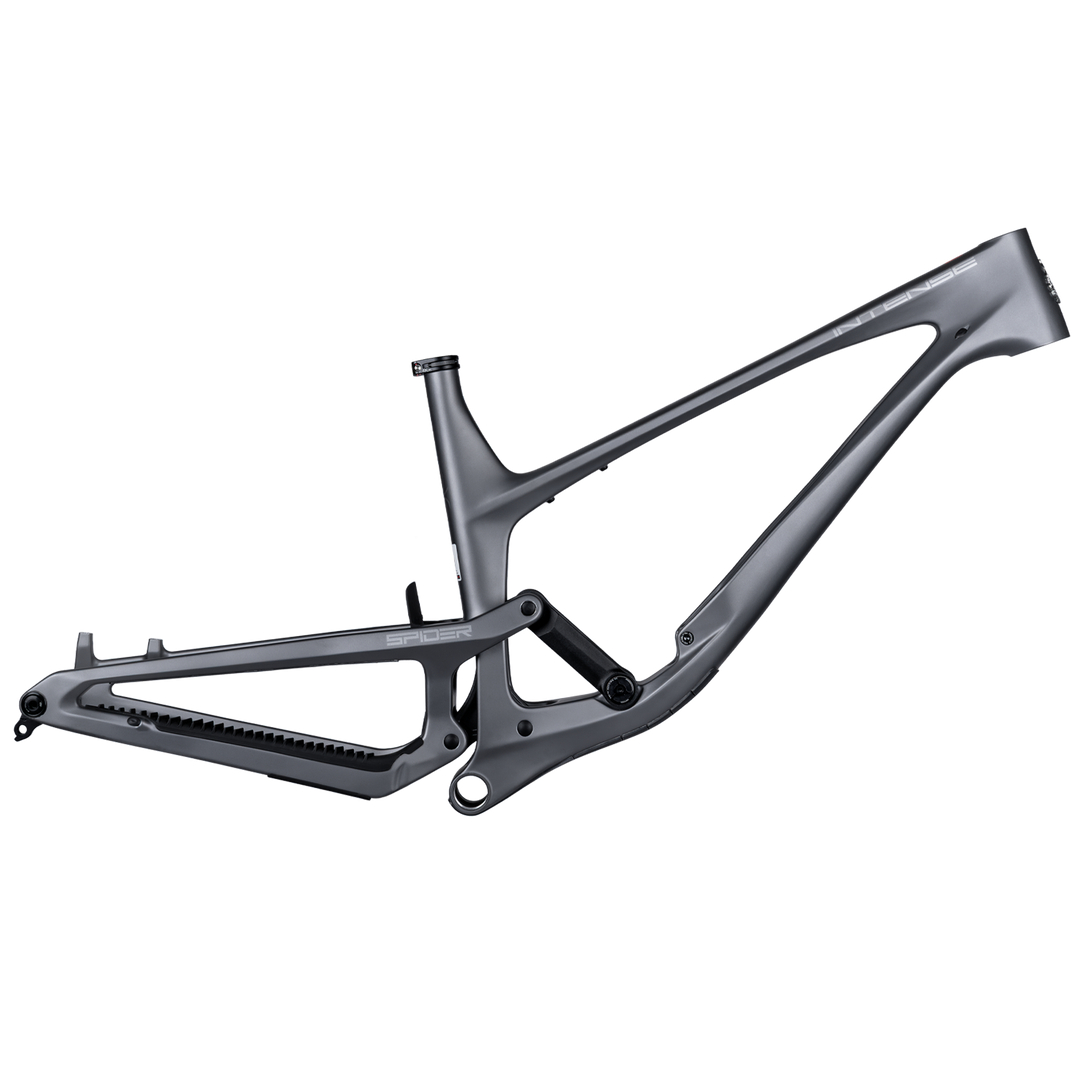

Start with the efficient Spider frame and bring your dream build to life. With our Frame First 3D Configurator, you choose every detail.

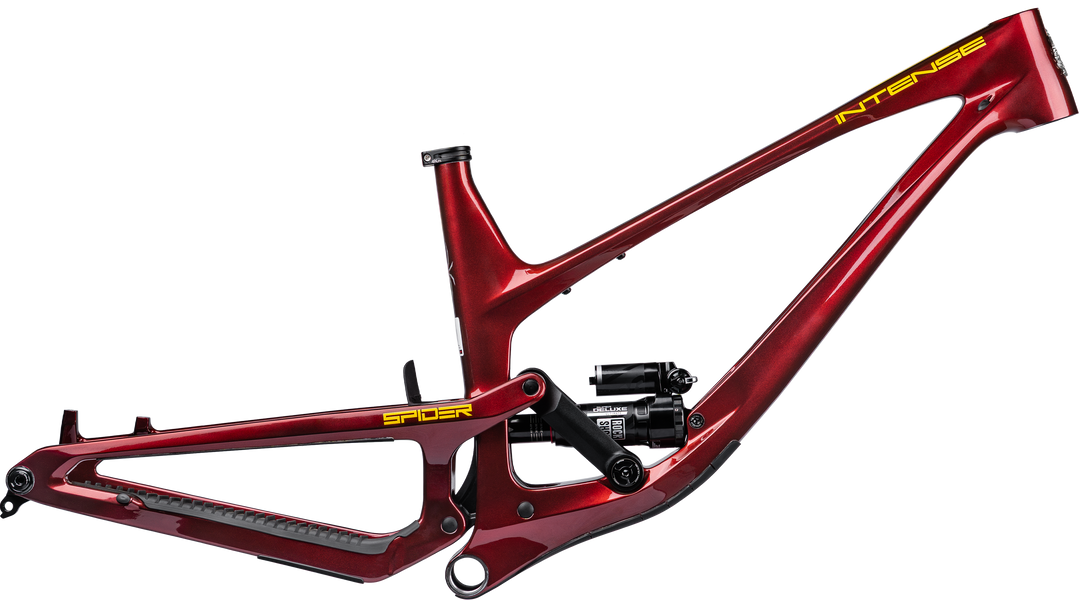

Oxblood red

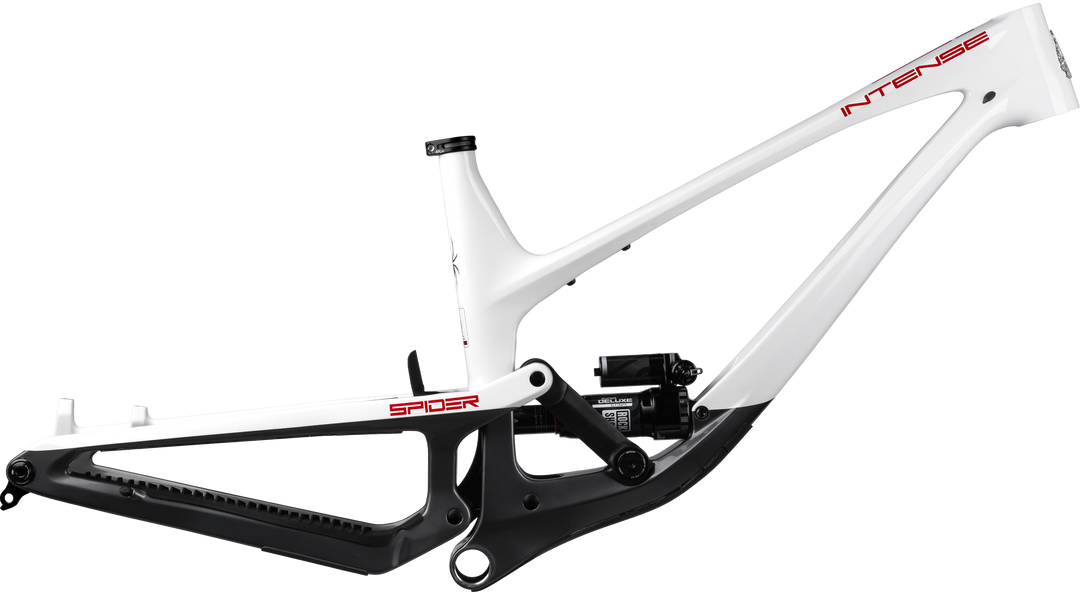

Chalk White

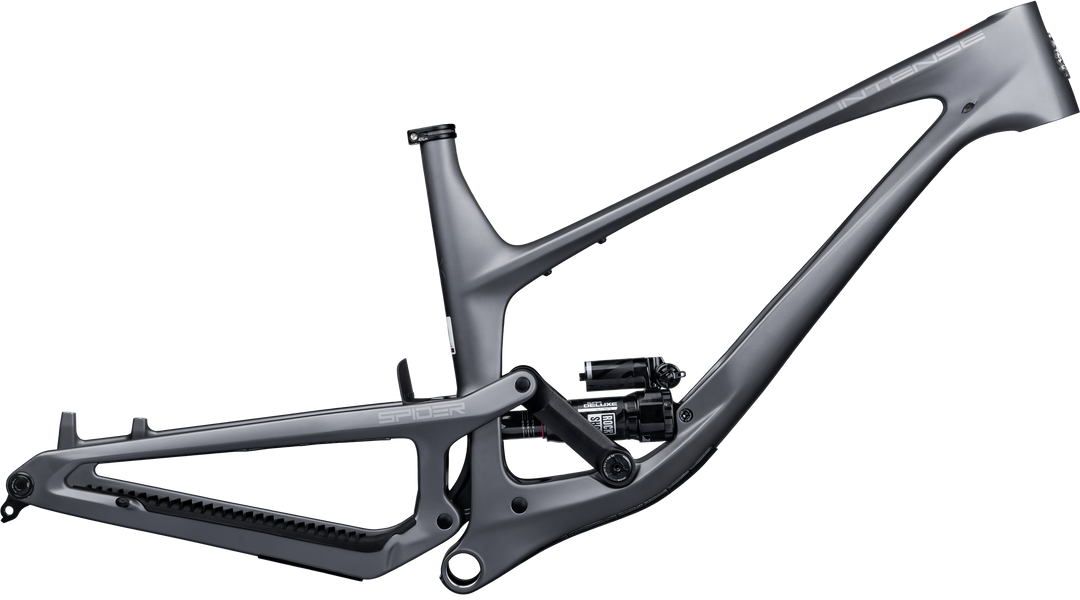

Satin Grey
Not for the Faint of heart.

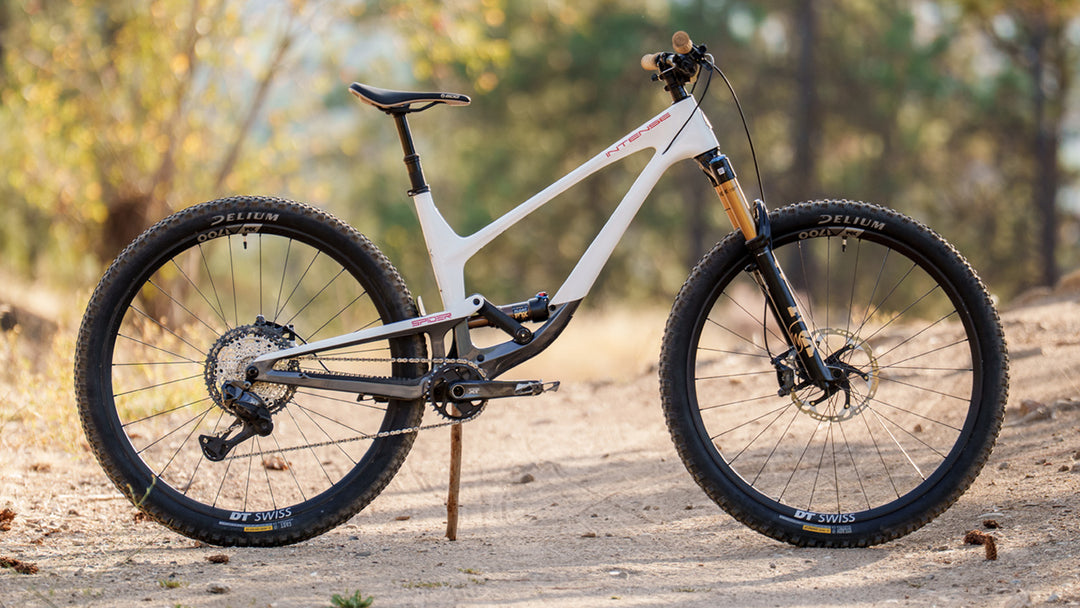

The all-new Spider breathes some fresh air into our Trail category with a completely reimagined carbon frame built for versatility and performance. Delivering 130mm front and rear travel on a full 29” wheel platform, the Spider is designed to excel on everything from long rides to dynamic, technical terrain and punches well above its weight class. Developed from decades of experience and innovation, its redesigned suspension layout and refined kinematics deliver smooth, efficient performance while maintaining the aggressive, responsive feel riders expect. With a bold new visual identity and advanced engineering, the Spider embodies what modern trail riding is all about.
features

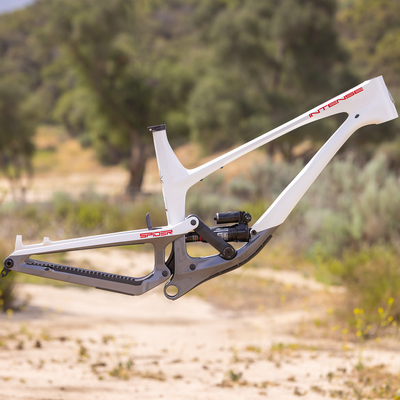

carbon fit

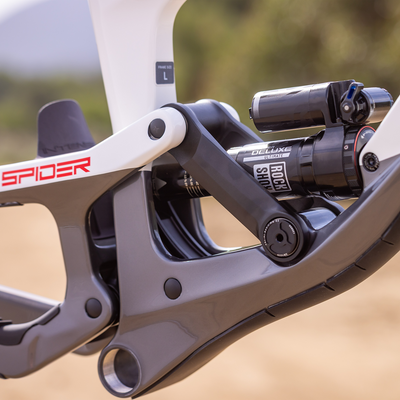

JS TUNED

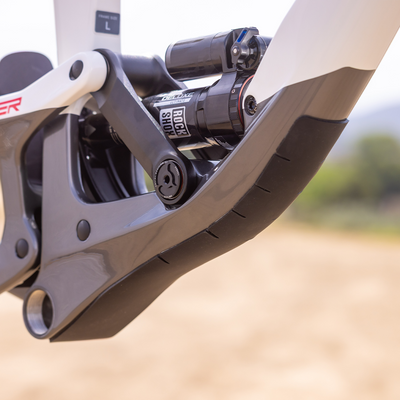

FRAME PROTECTION

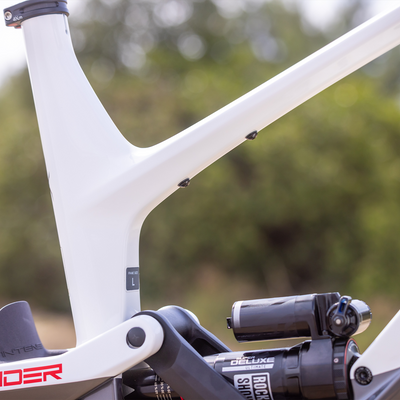

Accessory Mount

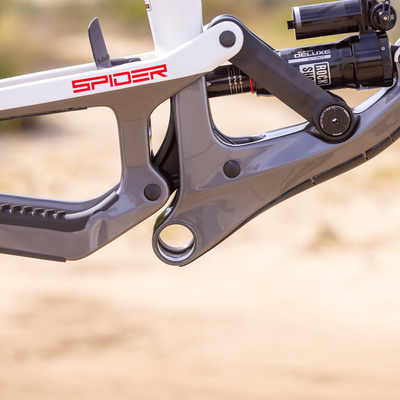

THREADED BB
-Bike Geometry and Size Chart
FRAME SIZE | SM | MD | LG | XL |
WEIGHT (NO SHOCK) | 5lbs 12oz / 2.3kg | 6lbs / 2.72kg | 6lbs 3oz / 2.8kg | 6lbs 6oz / 2.89 |
SIZING | 5'0-5'6" | 5'4"-5'10" | 5'8"-6'2" | 6'1"-6'6" |
REACH | 430mm | 455mm | 475mm | 505mm |
HEADTUBE ANGLE | 65° | 65° | 65° | 65° |
SEATTUBE ANGLE (Effective) | 78° | 78° | 78° | 78° |
SEATUBE ANGLE (Actual) | 74° | 74° | 74° | 74° |
WHEELBASE | 1177mm | 1206mm | 1230mm | 1264mm |
CHAINSTAY LENGTH | 435mm | 435mm | 435mm | 435mm |
BB HEIGHT | 336mm | 336mm | 336mm | 336mm |
STACK | 602mm | 612mm | 620mm | 630mm |
TOPTUBE LENGTH | 557mm | 585mm | 607mm | 639mm |
HEADTUBE LENGTH | 100mm | 110mm | 120mm | 130mm |
BB DROP | 38.5mm | 38.5mm | 38.5mm | 38.5mm |
SEATTUBE LENGTH | 390mm | 415mm | 440mm | 465mm |
MAX SEATPOST DEPTH | 215mm | 250mm | 275mm | 300mm |
*Based Off a 605mm axle to crown, 52mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 711mm
