DIRT JUMPER | 100MM | 26" wheels
The INTENSE Dirt Jump (DJ) delivers a lightweight, durable aluminum frame built for precision handling and a responsive, agile ride. Whether you’re hitting trail sessions, ripping laps on the pump track, racing head-to-head in dual slalom, or going big on a slopestyle course, the DJ is built to perform. Plus, you can add a rear derailleur and run some gears.
| Frame Size | SM | MD | LG |
| Reach | 378mm | 403mm | 428mm |
| Headtube Angle | 68.5° | 68.5° | 68.5° |
| Seattube Angle (Effective) | 72° | 72° | 72° |
| Seattube Angle (Actual) | 72° | 72° | 72° |
| Wheelbase | 1016mm | 1041mm | 1066mm |
| Chainstay Length (Min) | 385mm | 385mm | 385mm |
| Chainstay Length (Max) | 395mm | 395mm | 395mm |
| Front Center | 560mm | 585mm | 610mm |
| BB Height | 310mm | 310mm | 310mm |
| Stack | 560mm | 585mm | 610mm |
| Toptube Length | 560mm | 585mm | 610mm |
| Headtube Length | 115mm | 115mm | 115mm |
| BB Drop | 20mm | 20mm | 20mm |
| Seattube Length | 315mm | 315mm | 315mm |
| Max Seatpost Insertion Depth | 200mm | 260mm | 260mm |
*Based off a 476mm axle to crown. The fork offset is based off 37mm. // **Based off Front tire OD of 660mm, Rear tire OD of 660mm
| Model: DJ |
| Model Year: 2026 |
| Category: Dirt Jump |
| Available Sizes: S, M, L |
| Available Colors: Titanium Gray & Red |
| Frame Weight (No Shock): (S) 5 lbs 4 oz / 2.38 kg | (M) 5 lbs 10 oz / 2.55 kg | (L) 5 lbs 13 oz / 2.63 kg |
| Max Front Travel: 100mm |
| Headset: ZS44 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.1mm |
| Max Seatpost Insertion Depth: (S) 200mm | (M) 260mm | (L) 260mm |
| BB Shell Width: BSA 73mm |
| Rear Hub Spacing: 135mm x 10mm Bolt-On |
| Chainline: 52mm (Single Speed) |
| Max Chainring: 32T |
| Derailleur Hanger: INTENSE DJ Hanger |
| T-Type Compatible: N/A |
| Recommended Max Tire Width: 2.3" |
| Brakes: I.S. to Post Mount Disc |
| Min Brake Rotor Size: 140mm |
| Max Brake Rotor Size: 180mm (with adapter) |
NOTHING BUT FUN.
Designed around 26” wheels, the custom-butted 6061-T6 aluminum frame features modern dirt jump geometry – 68.5° headangle, 72° seattube angle and short 385-395mm (15.2”-15.6”) chainstays. The high-grade aluminum frame enables a lightweight, robust build ready for whatever you throw its way. Available in three sizes, so you can find the perfect fit. Size-down if you want more of a BMX/responsive feel or size up if you want more of an MTB/stable ride.
FEATURES

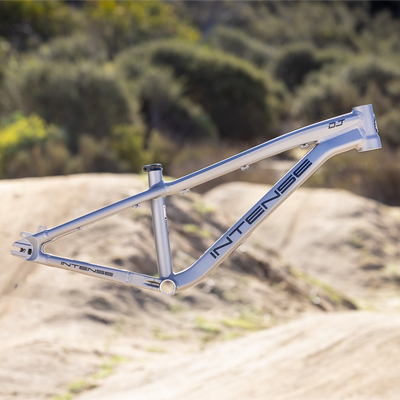

Keep It Simple
The frame is the core of any bike, and the DJ keeps it simple with a classic double diamond design crafted from durable 6061 aluminum and a subtle aesthetic. A forged chainstay wishbone adds strength and clearance, paired with 135mm rear hub spacing.
External Cable Routing
The DJ’s clean, straightforward frame features external cable routing, making assembly and adjustments quick and hassle-free. The DJ’s user-friendly design ensures you spend less time in the workshop and more time riding.

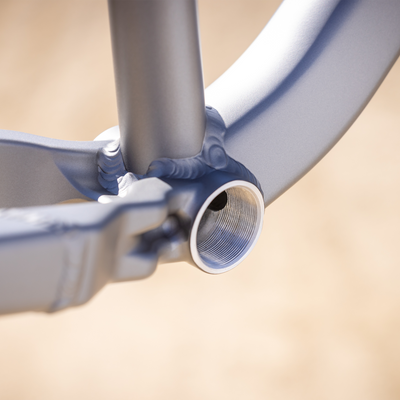

Threaded BB
The DJ’s threaded bottom bracket is the preferred choice for maintenance minded riders, offering reliable, creak-free performance over the long haul.

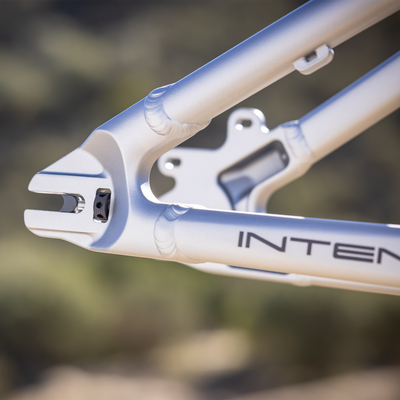

Micro Adjust
With a built-in integrated chain tension system, BMX-style horizontal forged dropouts allow for easy rear wheel adjustment that eliminates unwanted movement. With our proprietary derailleur hanger and a few component changes and additions, the DJ can be used with gears.

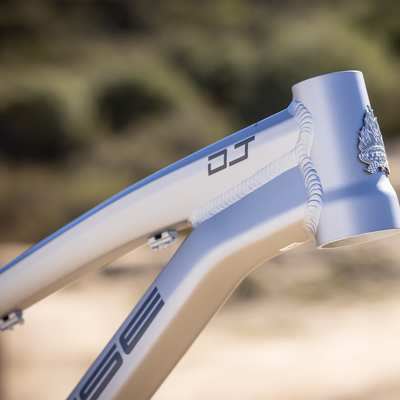

Tapered Headtube
The tapered head tube features enhanced strength and stiffness for a more responsive and controlled ride. It also ensures greater compatibility with a wider range of forks, for flexibility when choosing components and future proofing your setup for upgrades down the line.
Mounting System
The frame features a universal rear brake mounting system that accommodates a rotor size up to 180mm. The versatile design allows for easy customization and ensures compatibility with wide range of brake setups.
