RECON MX
RECON MX
SOLD EXCLUSIVELY THROUGH PARTS UNLIMITED
SUGGESTED RETAIL $4,999 USD
FEATURES
// 160mm travel front and 140mm travel rear gives you unparalleled confidence on the trail.
// Shimano E7000 drive unit allows for 3 power-assist modes and walk mode.
// 65.35° headtube angle achieves an aggressive geometry ready for any terrain.
// WTB ST I35 TCS 35mm 27.5" wheels are spec'd front and rear to get you where you need to go.

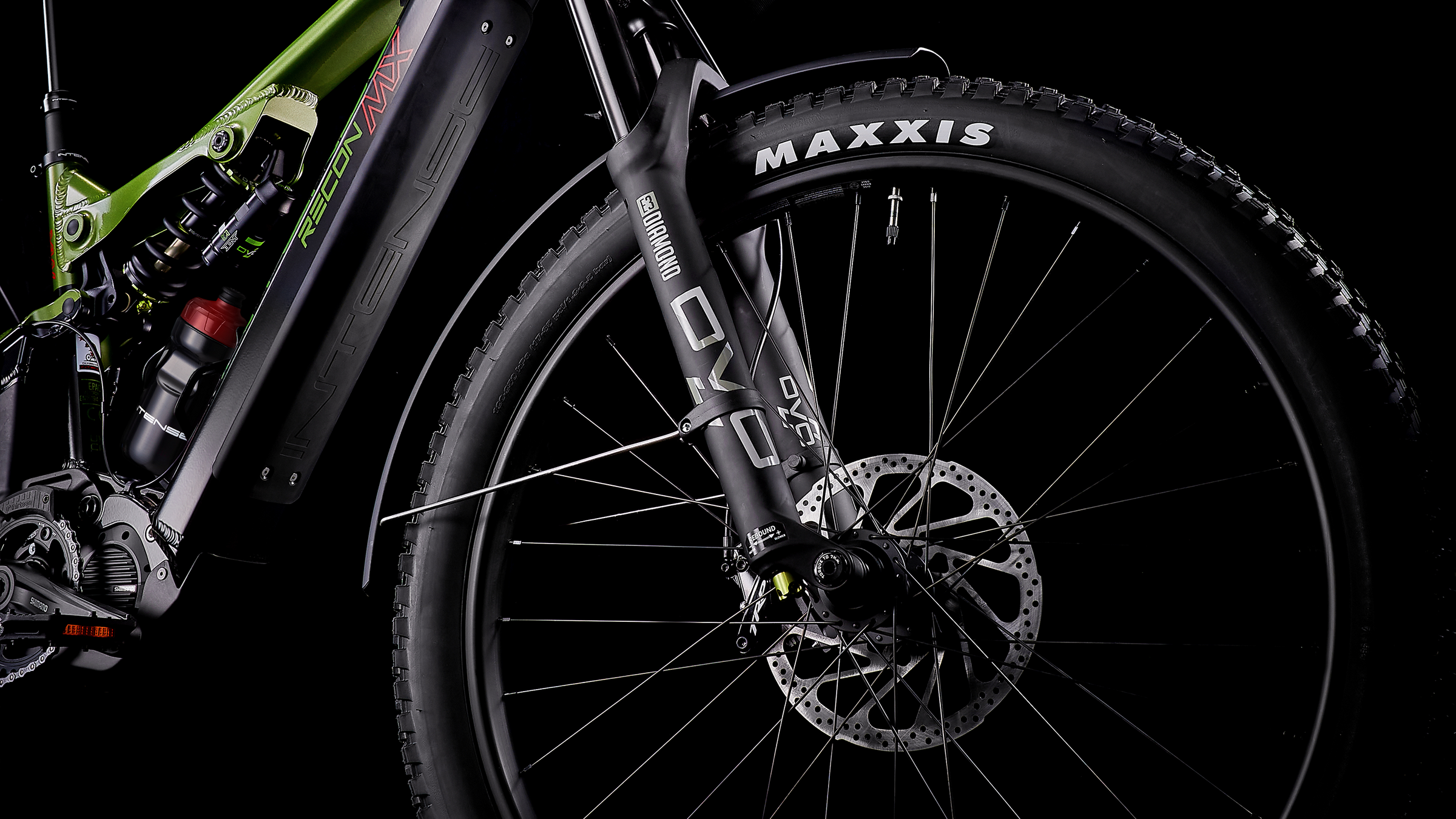

// DVO Diamond E3 single crown fork on the front and DVO Jade R shock in the rear gives you ample travel for your adventure.
// TRP Trail EVO brakes provide powerful stopping power coupled with the 203mm front/rear rotors.
// Shimano Deore 11-speed gearing give you effortless and dependable shifting from Shimano.

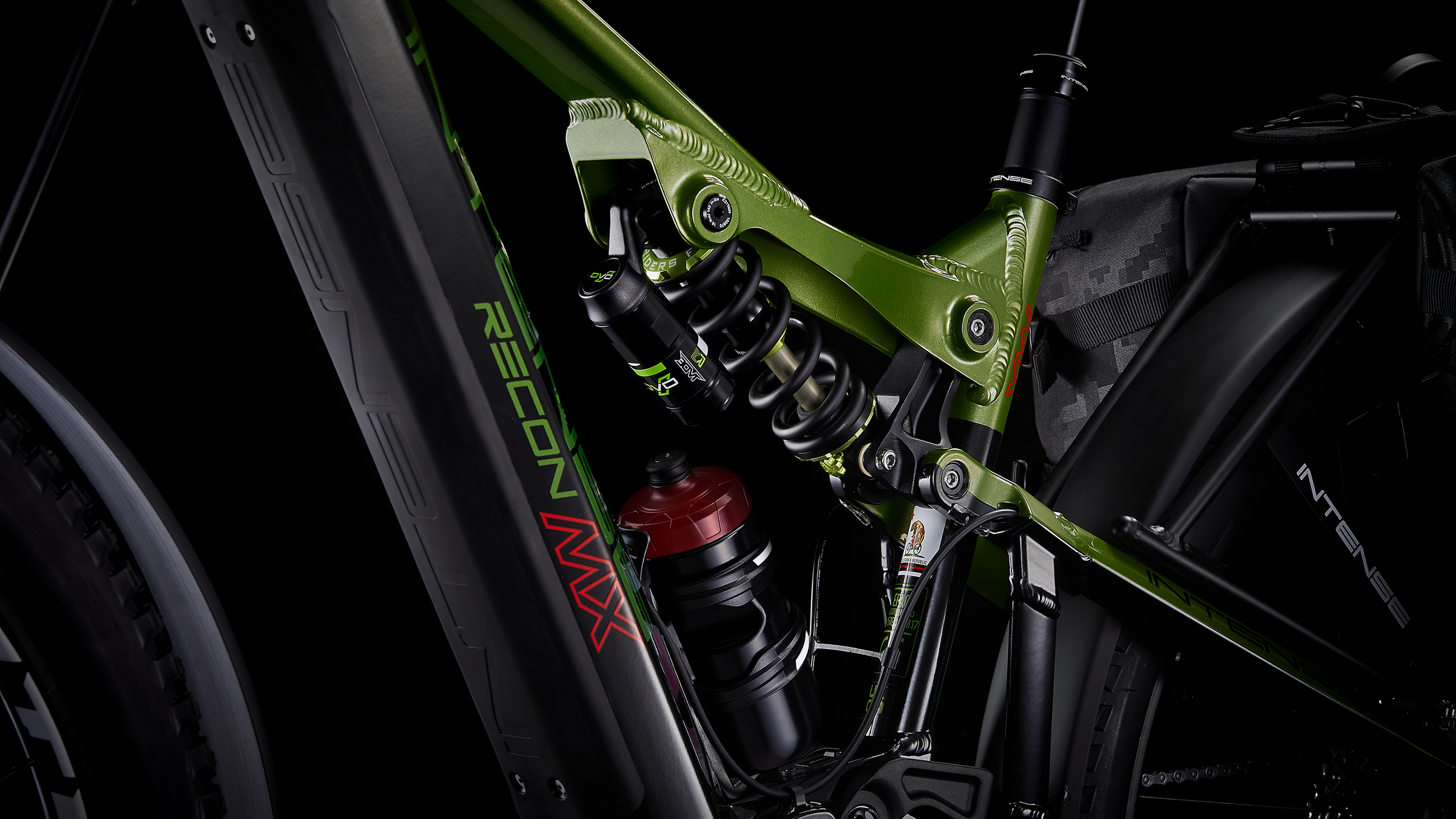

DVO SUSPENSION
DVO SUSPENSION
160mm DVO Diamond E3 single crown fork on the front and DVO Jade R coil in the rear.
FRONT & REAR FENDERS
FRONT & REAR FENDERS
We use front & rear fenders on the Recon MX to protect the bike and rider from rock strikes and trail debris.

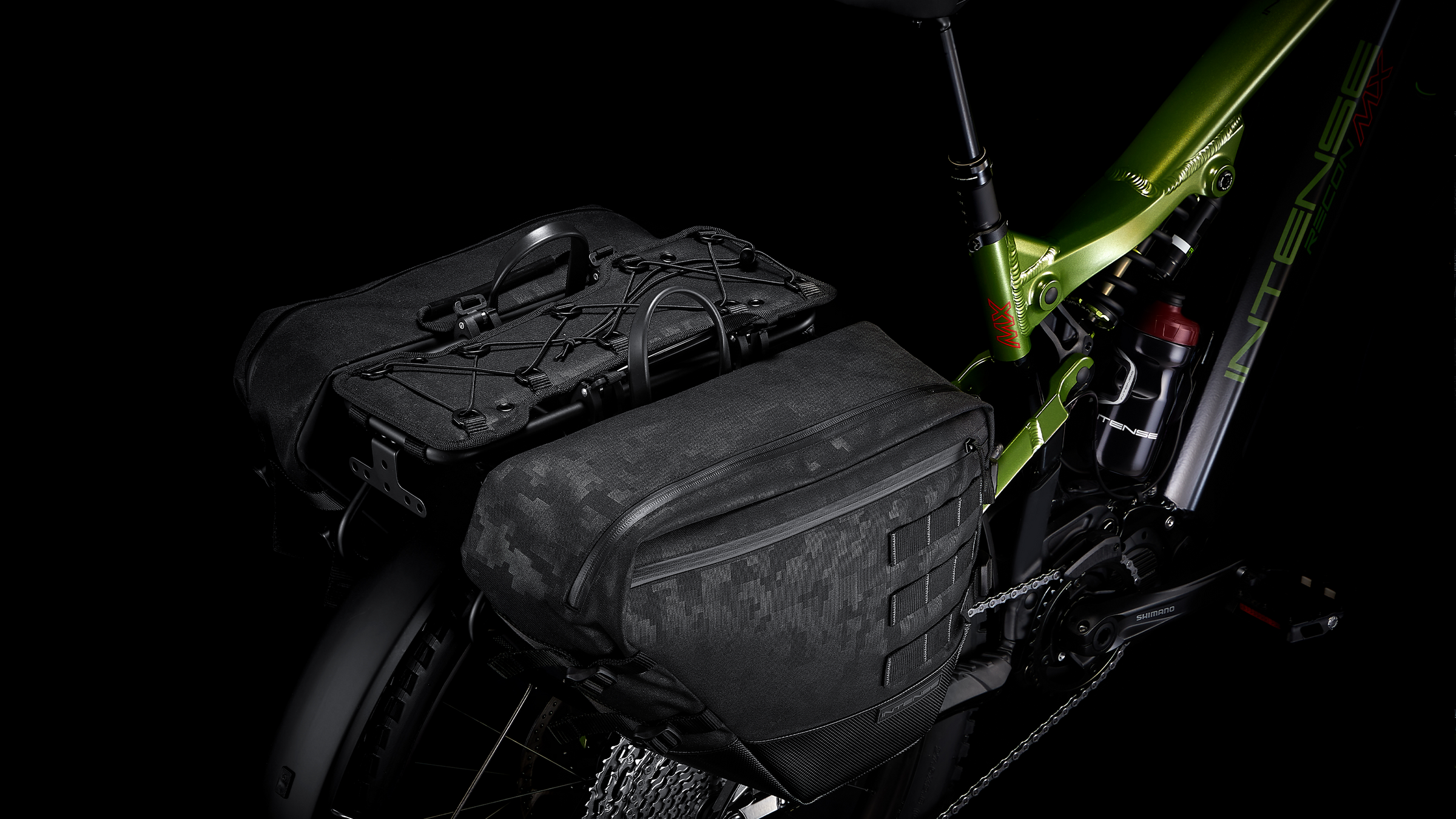

CUSTOM RACK & BAG SYSTEM
CUSTOM RACK & BAG SYSTEM
THE RECON MX COMES WITH A HANDLEBAR BAG, REAR RACK, TWO PANNIER BAGS AS WELL AS A BUNGEE DRAWCORD TO SECURE EXTRA ITEMS.
INTEGRATED BATTERY
INTEGRATED BATTERY
With a new compact design, the Shimano 504Wh battery is stored in the frames downtube.
SHIMANO STEPS LCD DISPLAY
SHIMANO STEPS LCD DISPLAY
Interact with your Shimano motor and battery system through Shimano's sleek display of the electrical system.
RECON MX BUILD SPECIFICATIONS
DRIVE UNIT SPECIFICATIONS
MOTOR: Shimano E7000 STEPS Motor
BATTERY: BT-E8035, for STEPS, 504Wh Battery lock with 2 keys
DISPLAY: Shimano STEPS SC-E7000 Display
BIKE SPECIFICATIONS
FRAME: Alloy 27.5”+ Front and 27.5"+ Rear Triangle, Enduro link Pivot System, Downtube Flak Guard Armor, Internal Derailleur, Brake, Dropper Post, and Display Unit Routing, ISCG 05 Mount, 140mm travel
FORK: DVO Diamond E3 27.5", 160mm, 44mm Rake
REAR SHOCK: DVO Jade R Coil, 140mm Travel, 185x55mm, Spring 450lb (SM/MD), 550lb (LG/XL)
HEADSET: INTENSE ZS49/ZS56
SHIFTER: Shimano Deore SL-M5100, 11-Speed
REAR DERAILLEUR: Shimano Deore RD-M5100, 11-Speed
CRANKSET: Shimano FC-E8000 165mm, 34T
PEDALS: Wellgo B223N
CHAIN: KMC E 11-Speed
CASSETTE: Shimano CS-M5100 11-Speed, 11-51t
BRAKES: TRP Trail EVO HD-M843, 203 rotors
FRONT WHEELSET: WBT ST I35 TCS 27.5, 35mm
REAR WHEELSET: WBT ST I35 TCS 27.5, 35mm
FRONT TIRE: Maxxis Rekon 3C EXO+ Tubeless-Ready 27.5" x 2.80"
REAR TIRE: Maxxis Rekon 3C EXO+ Tubeless-Ready 27.5" x 2.80"
HANDLEBAR: INTENSE Recon Alloy 35mm / 800mm width / 30mm Rise
STEM: INTENSE Recon 35mm / 45mm
GRIPS: INTENSE Lock-On
SEATPOST: INTENSE Recon Dropper (SM/MD 125mm, LG/XL 150mm)
SADDLE: WTB Volt
WEIGHT: 67lbs 9.6oz (Size SM/MD includes pedals, handlebar bags, rear rack, pannier bags, headlight and tubes), 61lbs 12.8oz (Size SM/MD with pedals, rear rack and tubes only)
WHOLE BIKE WARRANTY
We deal with warranty on all parts on our bikes, so you don't have to worry about the hassle.
CRASH REPLACEMENT
If your frame is damaged because of a crash we will make a replacement available, at a discounted charge.
EXCHANGE AND RETURNS
INTENSE LLC wants you to love your new bike! If you don’t, simply send it back for a full refund.
