Borrowing design inspiration and technology from our M29 downhill bike, utilizing its bottom link driven rear shock and suspension design, we have created a bike with plush travel for the roughest of descents, and a firm pedal platform when needed. We’ve positioned the rear shock low down and centered in the frame, allowing the Tracer to descend and handle terrain impeccably.
| BUILD | PRO | |
| WEIGHT | 35 lbs 11 oz // 16.2 kg | |

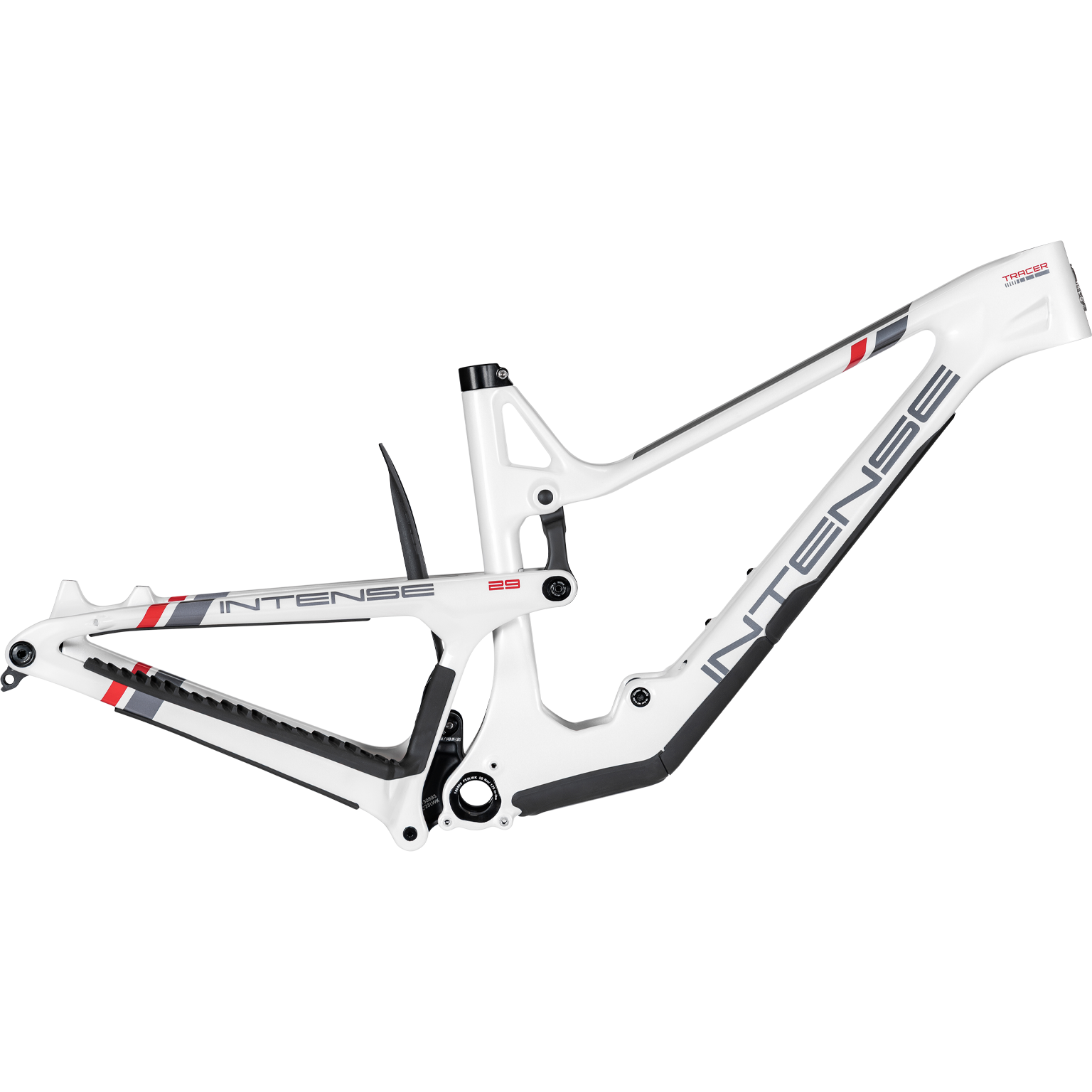

| FRAME | Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB an updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the 'tube bag' included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing), Universal Derailleur Hanger (UDH), SRAM T-Type compatible. | |
| FORK | FOX Performance Elite 38 Float, 170mm, Grip 2 Damper, High/Low Speed Compression and Rebound Adjust, Air Bleed Valve | |
| SHOCK | FOX Performance Float X2 205 x 65mm, 2-position adjustment | |
| HEADSET | Cane Creek 40 ZS49-ZS56/40 | |
| STEM | e*thirteen Plus 35 40mm | |
| HANDLEBARS | e*thirteen Race Carbon 35 800mm | |
| GRIPS | INTENSE Lock-On | |
| BRAKES | Shimano XT BR-M8120 | |
| BRAKE LEVERS | Shimano XT BL-M8100 | |
| BRAKE ROTORS | Shimano XT 203mm | |
| SHIFTER | Shimano XT 12sp, I-Spec | |
| DERAILLEUR | Shimano XT 12sp | |
| CRANKS | e*thirteen Helix Base 30t 170mm | |
| CHAINGUIDE | e*thirteen Vario Guide & Bash | |
| B/B | e*thirteen | |
| CASSETTE |
Shimano SLX 12sp. 10-51t |
|
| CHAIN | Shimano SLX 12sp | |
| RIMS | e*thirteen LG1 Enduro 30mm | |
| SPOKES | e*thirteen | |
| WHEELSET | e*thirteen LG1 Enduro 30mm Wheelset | |
| TIRES | Front/Rear: Maxxis Assegai WT Maxx Terra 3C EXO+ 29" x 2.50" | |
| DROPPER POST | e*thirteen Infinite Dropper I-Spec, 31.6mm, length 120mm SM / 150mm MD / 180mm Lg / 210mm XL | |
| SADDLE | SDG Radar |
*INTENSE reserves the right to change the product information on this site at any time without notice. Weights may vary in final production.
*INTENSE does not recommend running a dual-crown fork on any Tracer frame. If you choose to do so, it will void the INTENSE warranty.
