Bring your All-New Custom Spider build to life, with our 3D Configurator
| Frame Size | SM | MD | LG | XL |
| Reach | 430mm | 455mm | 475mm | 505mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (Effective) | 78° | 78° | 78° | 78° |
| Seattube Angle (Actual) | 74° | 74° | 74° | 74° |
| Wheelbase | 1177mm | 1206mm | 1230mm | 1264mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Front Center | 742mm | 771mm | 800mm | 829mm |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| Stack | 602mm | 612mm | 620mm | 630mm |
| Toptube Length | 557mm | 585mm | 607mm | 639mm |
| Headtube Length | 100mm | 110mm | 120mm | 130mm |
| BB Drop | 38.5mm | 38.5mm | 38.5mm | 38.5mm |
| Seattube Length | 390mm | 415mm | 440mm | 465mm |
| Max Seatpost Insertion Depth | 215mm | 250mm | 275mm | 300mm |
*Based off a 537mm axle to crown, 44mm offset fork // **Based off front tire OD of 750mm, rear tire OD of 750mm
| Model Year: 2026 |
| Category: Trail |
| Available Sizes: S, M, L, XL |

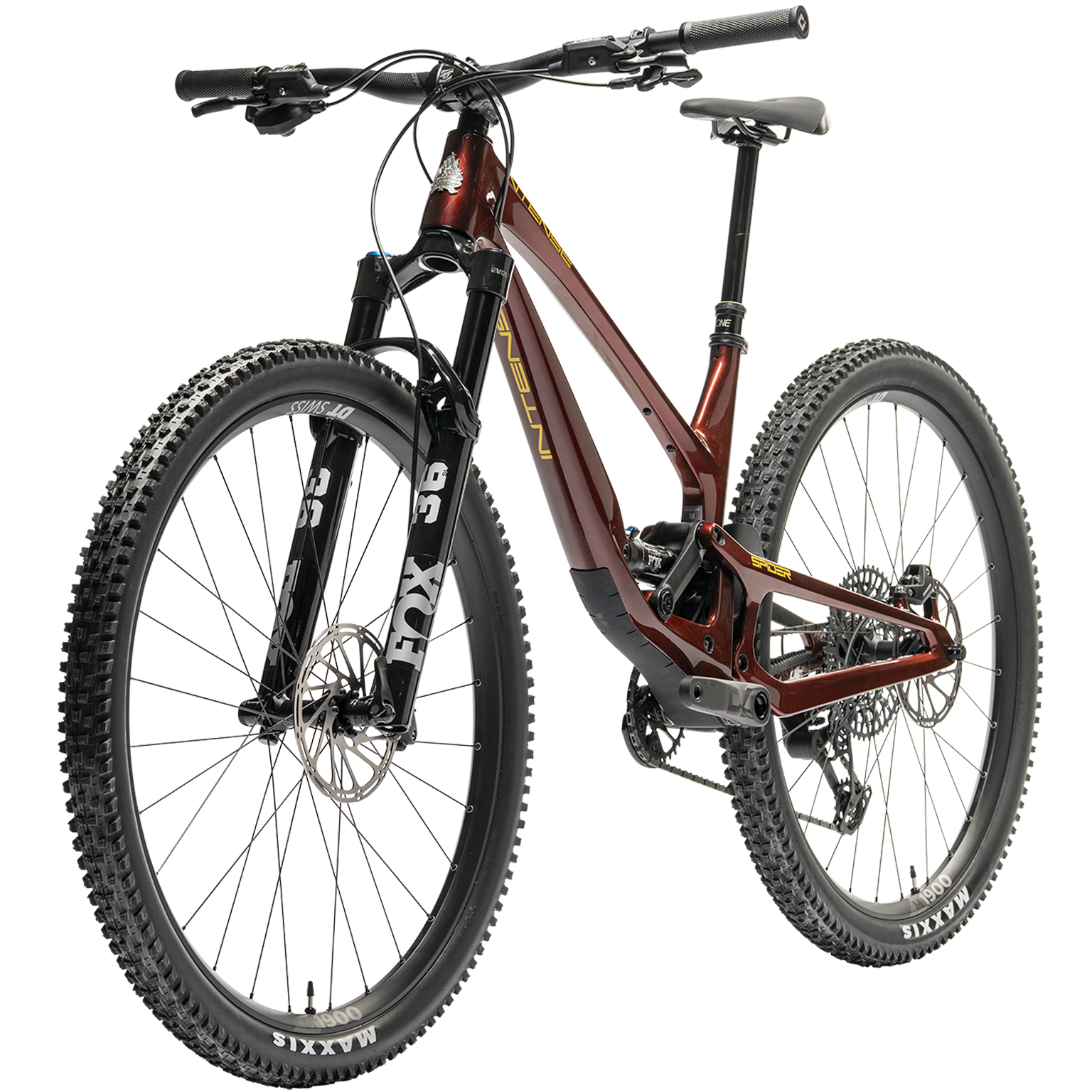

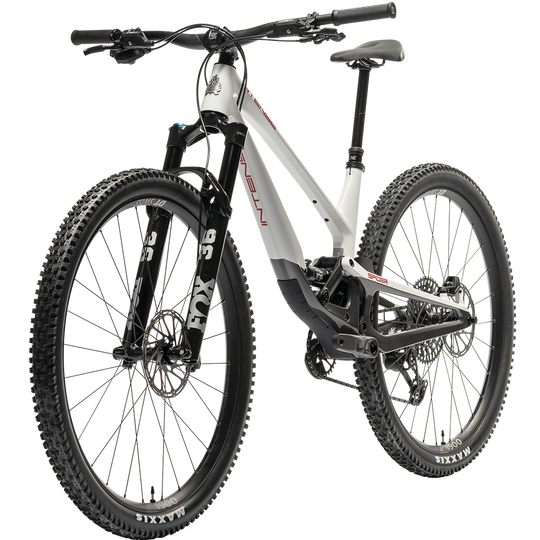

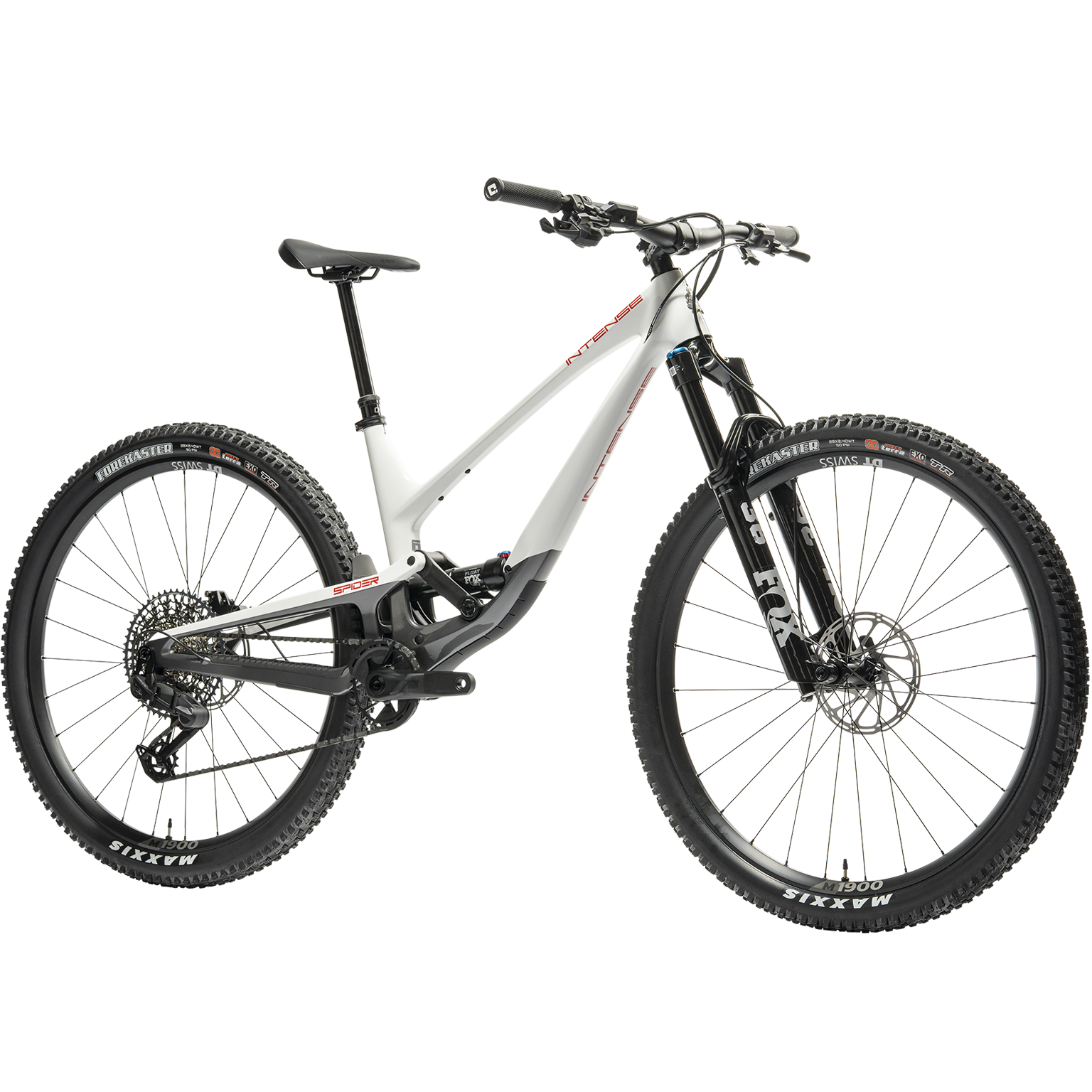

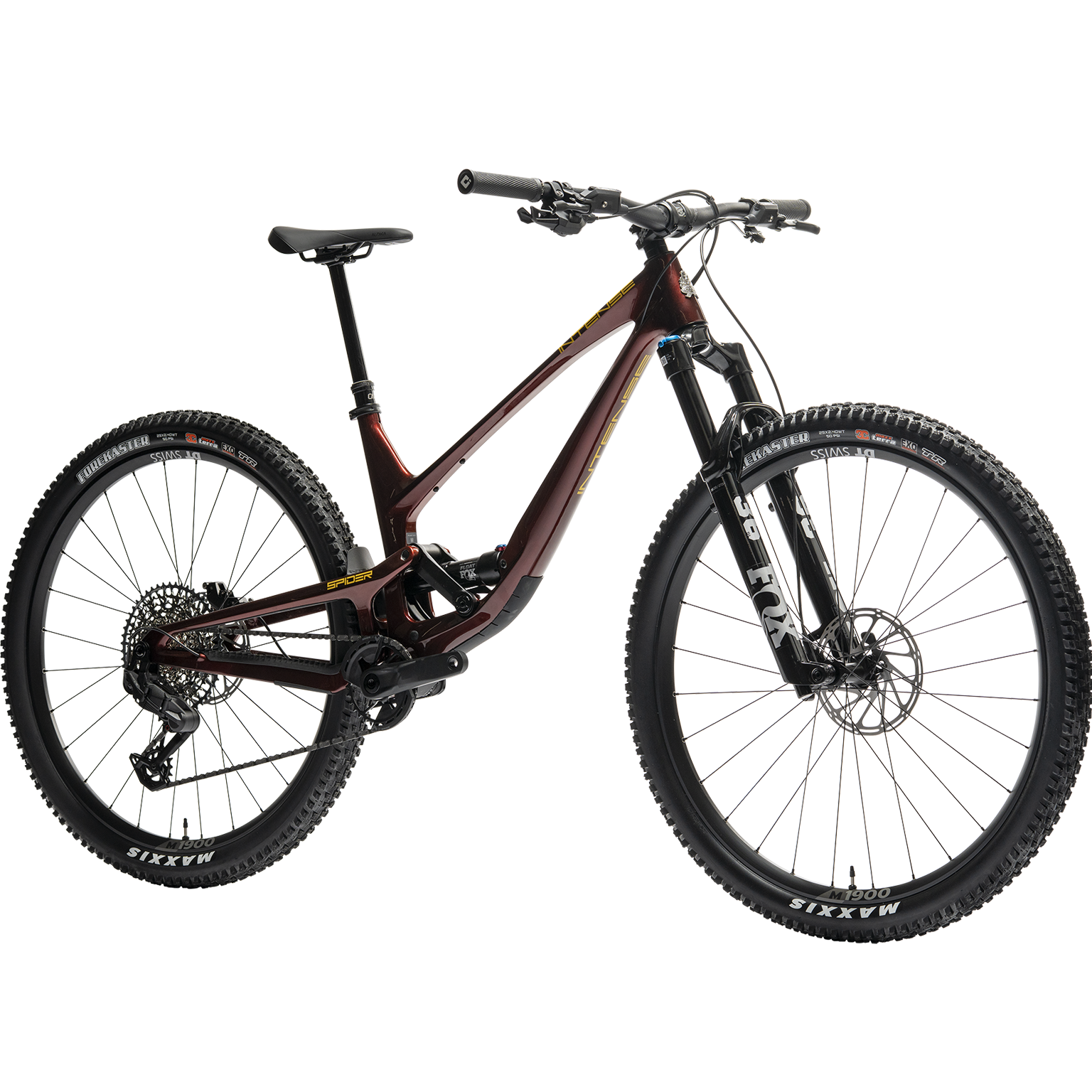

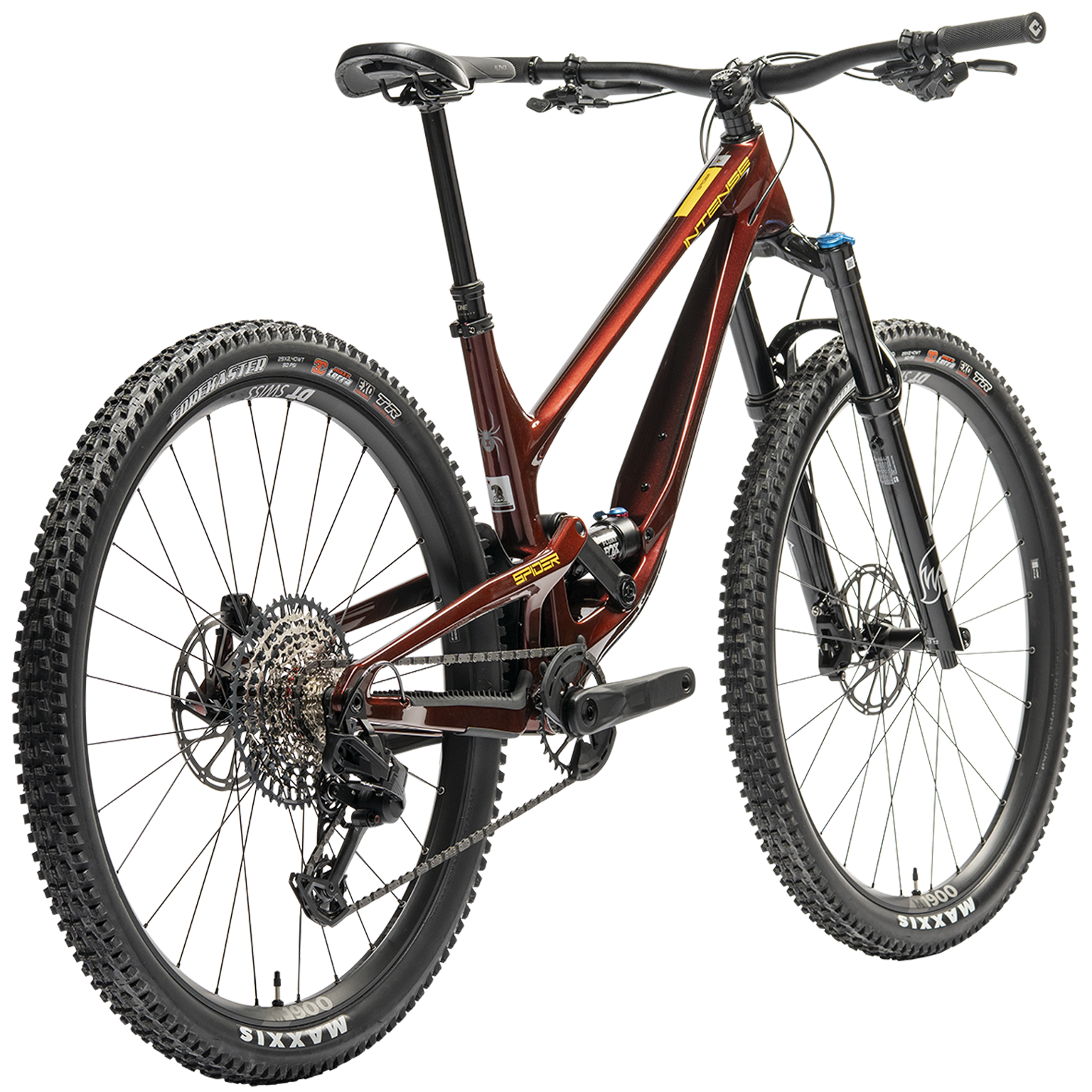

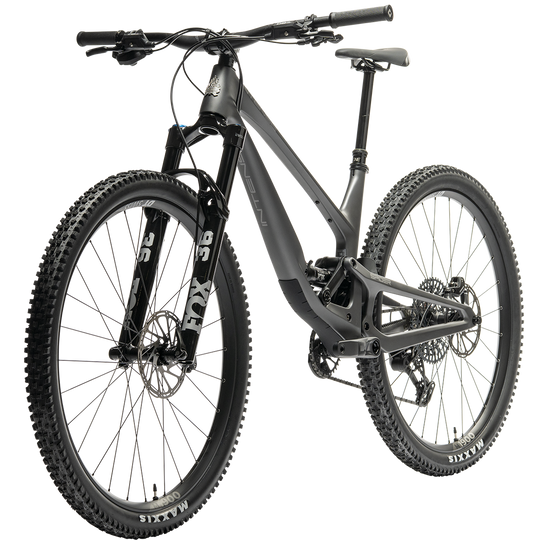

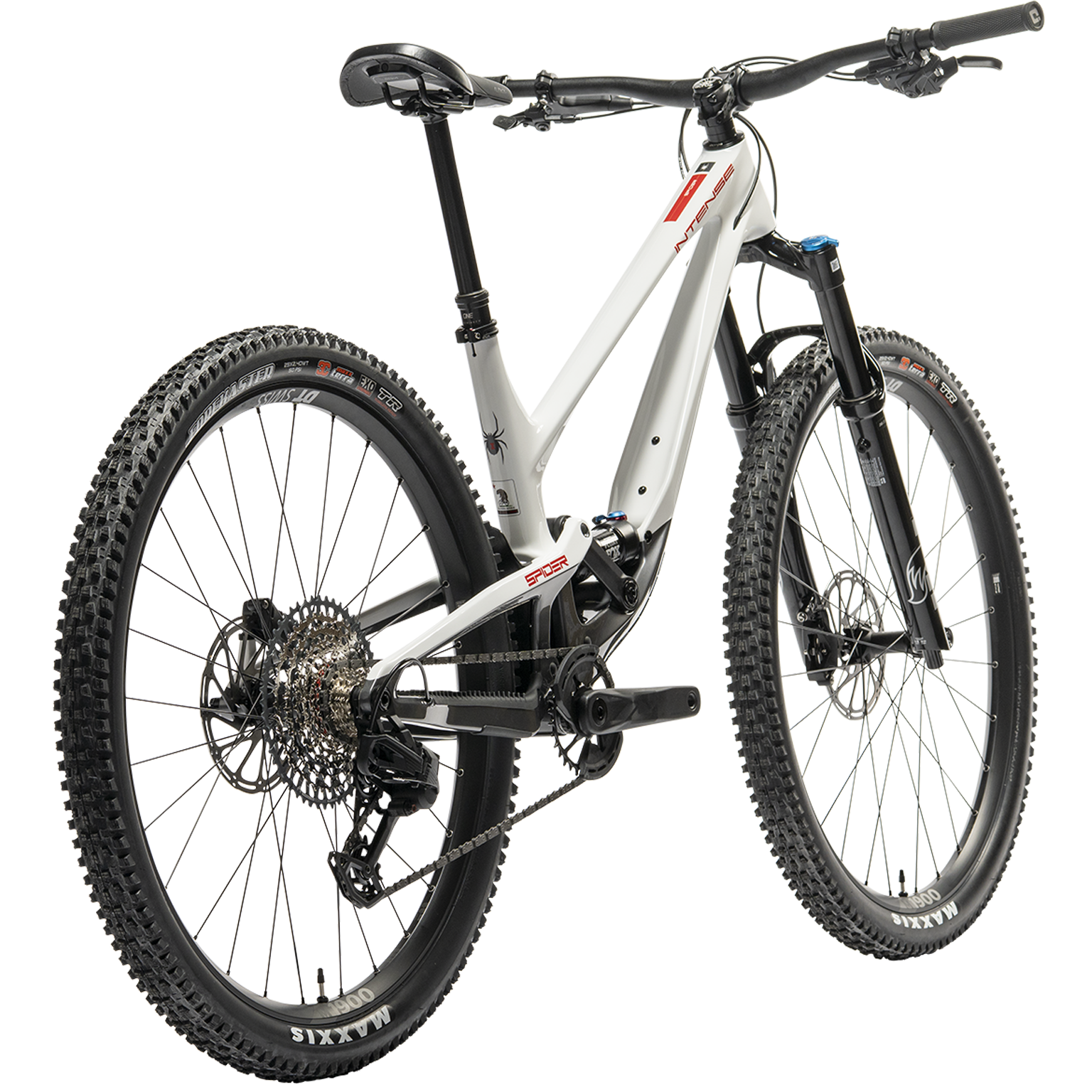

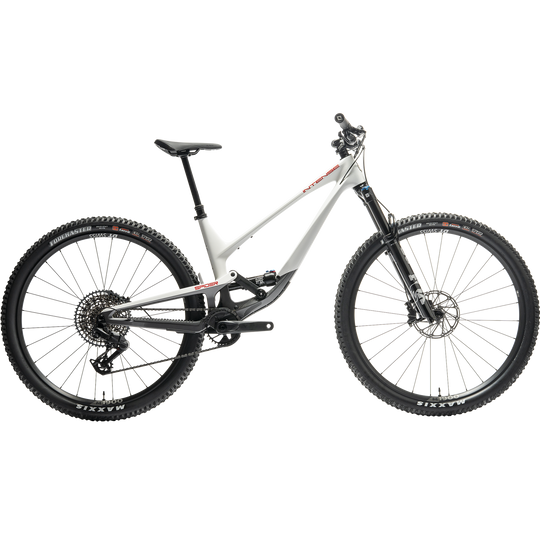

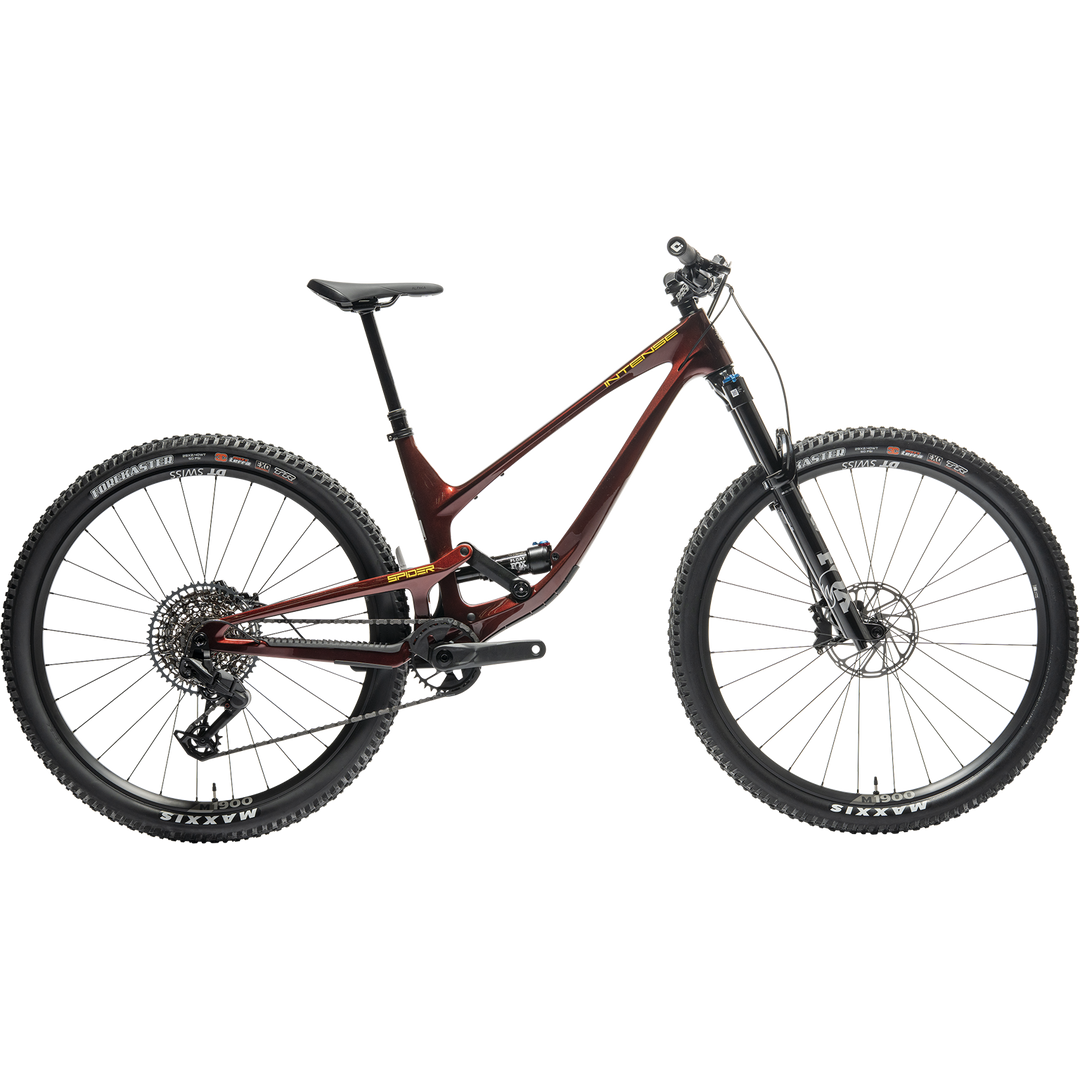

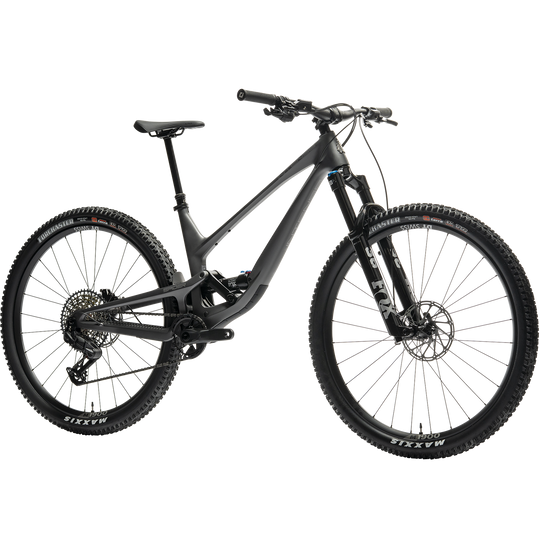

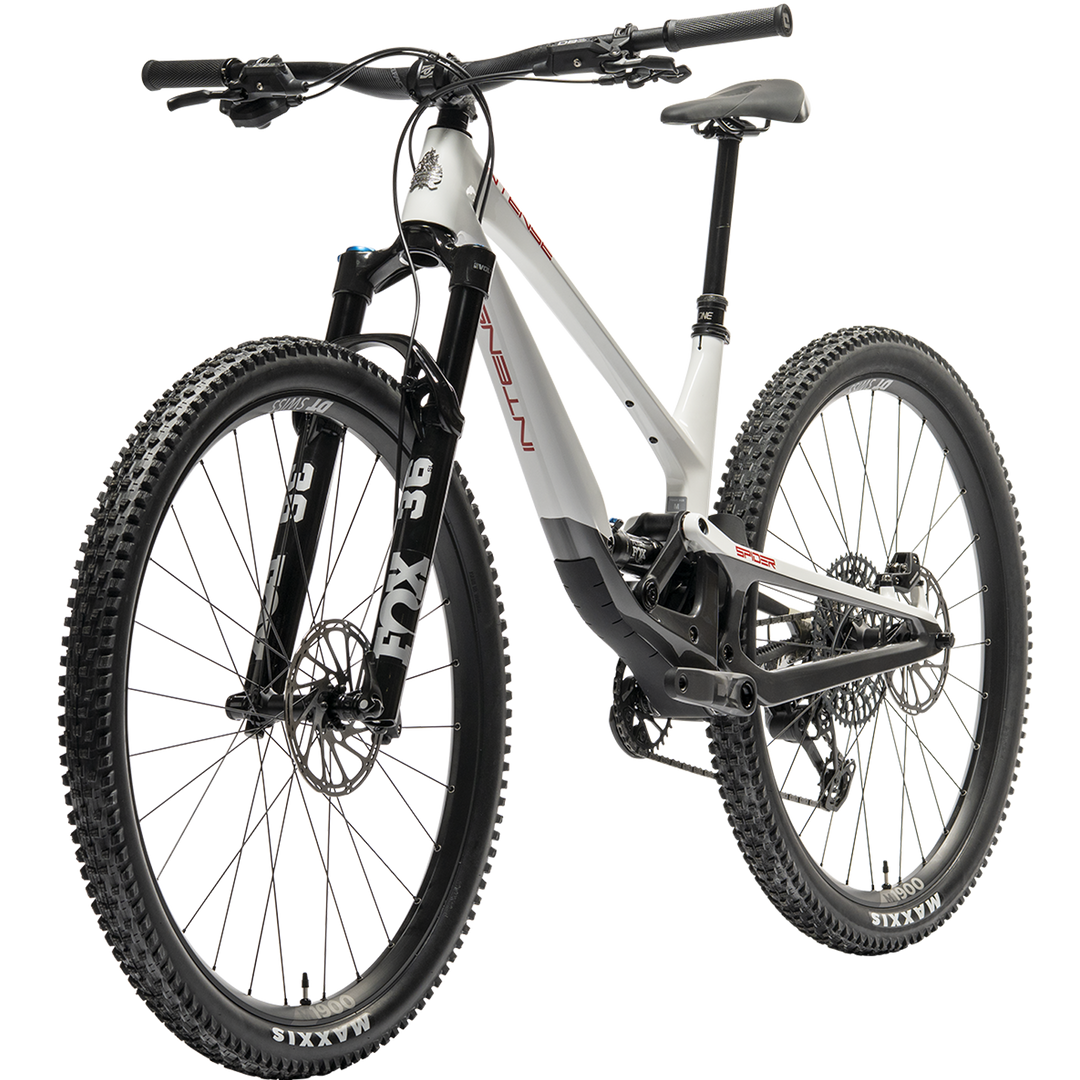

| Available Colors: Oxblood Red, Satin Gray, & Chalk White |
| Frame Weight (No Shock): (S) 5 lbs 12 oz / 2.61 kg | (M) 6 lbs / 2.72 kg | (L) 6 lbs 3 oz / 2.80 kg | (XL) 6 lbs 6 oz / 2.89 kg |
| Headset: ZS44 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.4mm |
| Max Seatpost Insertion Depth: (S) 215mm | (M) 250mm | (L) 275mm | (XL) 300mm |
| BB Shell Width: BSA 73mm |
| Rear Hub Spacing: 148mm x 12mm Thru-Axle Boost |
| Max Front Travel: 130mm |
| Max Rear Travel: 130mm |
| Non-Compatible Shocks: All Coils | FOX Live Valve, X2 | RockShox Flight Attendant, Vivid Air |
| Shock Size: 210mm x 50mm |
| Front Shock Mount Hardware: 8mm x 30mm |
| Rear Shock Mount Hardware: 8mm x 20mm |
| Max Chainring: 34T |
| Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Recommended Max Tire Width: 2.5" |
| Brakes: Disc Brake Hydraulic, Post Mount / Direct |
| Min Rotor Size: 180mm |
| Max Rotor Size: 203mm (with adapter) |
| Frame | Available Sizes: S, M, L, XL |
| Available Colors: Oxblood Red, Satin Gray, & Chalk White | |
| Frame Weight (No Shock): (S)5lbs 12oz / 2.61kg, (M)6lbs / 2.72kg, (L)6lbs 3oz / 2.8kg, (XL)6lbs 6oz / 2.89kg | |
| Material: Size-Specific Carbon Layup | |
| Wheel Size: Full 29" Platform | |
| Front/Rear Travel: 130mm / 130mm | |
| Derailleur Hanger: UDH | |
| T-Type Compatible: Yes | |
| Cable Routing: Fully guided internal | |
| Bottom Bracket: Threaded BSA | |
| Accessory Mount: Integrated mount under top tube | |
| Frame Protection: Custom molded protection | |
| Suspension | Fork: FOX Performance 36 SL, 29in, 130, Grip Damper 3 pos, 15QRx110, 44mm offset |
| Shock: FOX Float Performance, Evol LV, 2 pos, 210x50 | |
| Drivetrain | Derailleur: SRAM Eagle 70 Transmission |
| Cassette: SRAM XS-1275 Eagle 90 Transmission 10-52 | |
| Crankset: SRAM Eagle 70, 32t, 165mm Length | |
| Shifter: SRAM Eagle 70 Transmission | |
| Bottom Bracket: SRAM DUB BSA Threaded | |
| Chain: GX Eagle Transmission Flattop Chain | |
| Rear Fender: Integrated | |
| Wheels | Wheelset: DT Swiss M 1900 |
| Front Hub: DT Swiss 370 | |
| Rear Hub: DT Swiss 370 | |
| Tires: Maxxis Forekaster 29x2.40 3C/EXO/TR | |
| Brakes | Brakeset: SRAM DB6 |
| Rotors: SRAM Centerline 6-bolt 180mm | |
| Components | Headset: Acros ZS44 Upper / ZS56 Lower |
| Stem: INTENSE, 35mm x 40mm, Black | |
| Handlebar: Intense Alloy, 35, 30mm Rise, 800mm Length | |
| Seatpost: OneUp V3 Dropper Post (S) 150mm (M) 180mm (L) 180mm (XL) 210mm | |
| Seatpost Clamp: Intense 36.4mm | |
| Saddle: Fizik Terra 145mm | |
| Grips: ODI Elite Flow Lock-On | |
| Foundation Build Weight | Medium Frame Pro Build: 30lbs 10oz / 13.89kg |
FEATURES
Dual Co-Rotating Link Suspension
Our Dual Co-Rotating Link (DCR) suspension keeps the chassis low, calm, and planted, so the bike tracks the ground and gives you incredible cornering traction, yet still feels playful, and highly active when you push into the trail.
Internal Cable Routing
Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.
Threaded BB
The Spider’s threaded bottom bracket is the preferred choice for maintenance-minded riders, offering reliable, creak-free performance over the long haul.
Frame Protection
Integrated frame protection keeps the front and rear triangle looking new, while a built-in rear fender helps shield the shock from dirt and debris.
Carbon Fit
The Spider’s carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance across the entire size range.
Accesory Mount
An integrated accessory mount under the top tube gives you a secure place to carry tools, air canisters, tire irons, and other essentials.
