ENDURO | 170MM | MX or 29" wheels
An enduro bike is built for one purpose: to dominate the descents and climb back up with ease—ready to do it all over again. The Tracer is designed around a MX and 29” wheelset and is engineered to excel on both fronts. Delivering the ideal balance of performance, durability, and modern versatility. It comes UDH equipped and T-Type drivetrain compatible.
Bring your All-New Custom Tracer build to life, with our 3D Configurator
| TRACER 279 | SM | MD | LG | XL |
| Reach | 420mm | 450mm | 475mm | 500mm |
| Headtube Angle | 64° | 64° | 64° | 64° |
| Seattube Angle (Effective) | 77.4° | 77.4° | 77.4° | 77.4° |
| Seattube Angle (Actual) | 72.4° | 72.4° | 72.4° | 72.4° |
| Wheelbase | 1195mm | 1229mm | 1258mm | 1287mm |
| Chainstay Length | 439mm | 439mm | 439mm | 439mm |
| Front Center | 757mm | 791mm | 820mm | 849mm |
| BB Height | 342mm | 342mm | 342mm | 342mm |
| Stack | 622mm | 631mm | 640mm | 649mm |
| Toptube Length | 559mm | 591mm | 619mm | 646mm |
| Headtube Length | 90mm | 100mm | 110mm | 120mm |
| BB Drop Front Wheel | 32mm | 32mm | 32mm | 32mm |
| BB Drop Rear Wheel | 12mm | 12mm | 12mm | 12mm |
| Seattube Length | 385mm | 418mm | 440mm | 465mm |
| Max Seatpost Insertion Depth | 200mm | 260mm | 260mm | 280mm |
*Tracer 279 Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm front and 709mm Rear
| TRACER 29 | MD | LG | XL |
| Reach | 450mm | 475mm | 500mm |
| Headtube Angle | 64° | 64° | 64° |
| Seattube Angle (Effective) | 77.4° | 77.4° | 77.4° |
| Seattube Angle (Actual) | 72.4° | 72.4° | 72.4° |
| Wheelbase | 1236mm | 1265mm | 1295mm |
| Chainstay Length | 447mm | 447mm | 447mm |
| Front Center | 791mm | 820mm | 849mm |
| BB Height | 342mm | 342mm | 342mm |
| Stack | 631mm | 640mm | 649mm |
| Toptube Length | 591mm | 619mm | 647mm |
| Headtube Length | 100mm | 110mm | 120mm |
| BB Drop | 32.6mm | 32.6mm | 32.6mm |
| Seattube Length | 418mm | 440mm | 465mm |
| Max Seatpost Insertion Depth | 260mm | 260mm | 280mm |
*Tracer 29 Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm

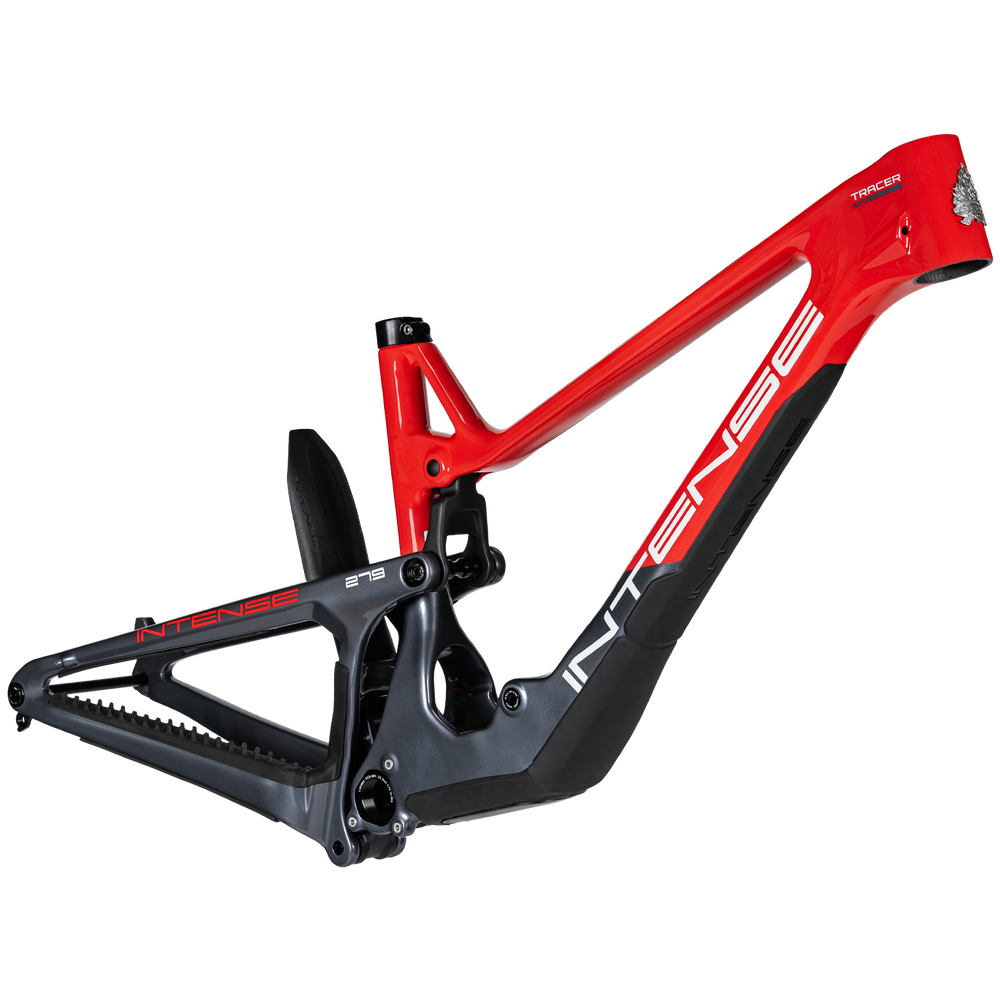

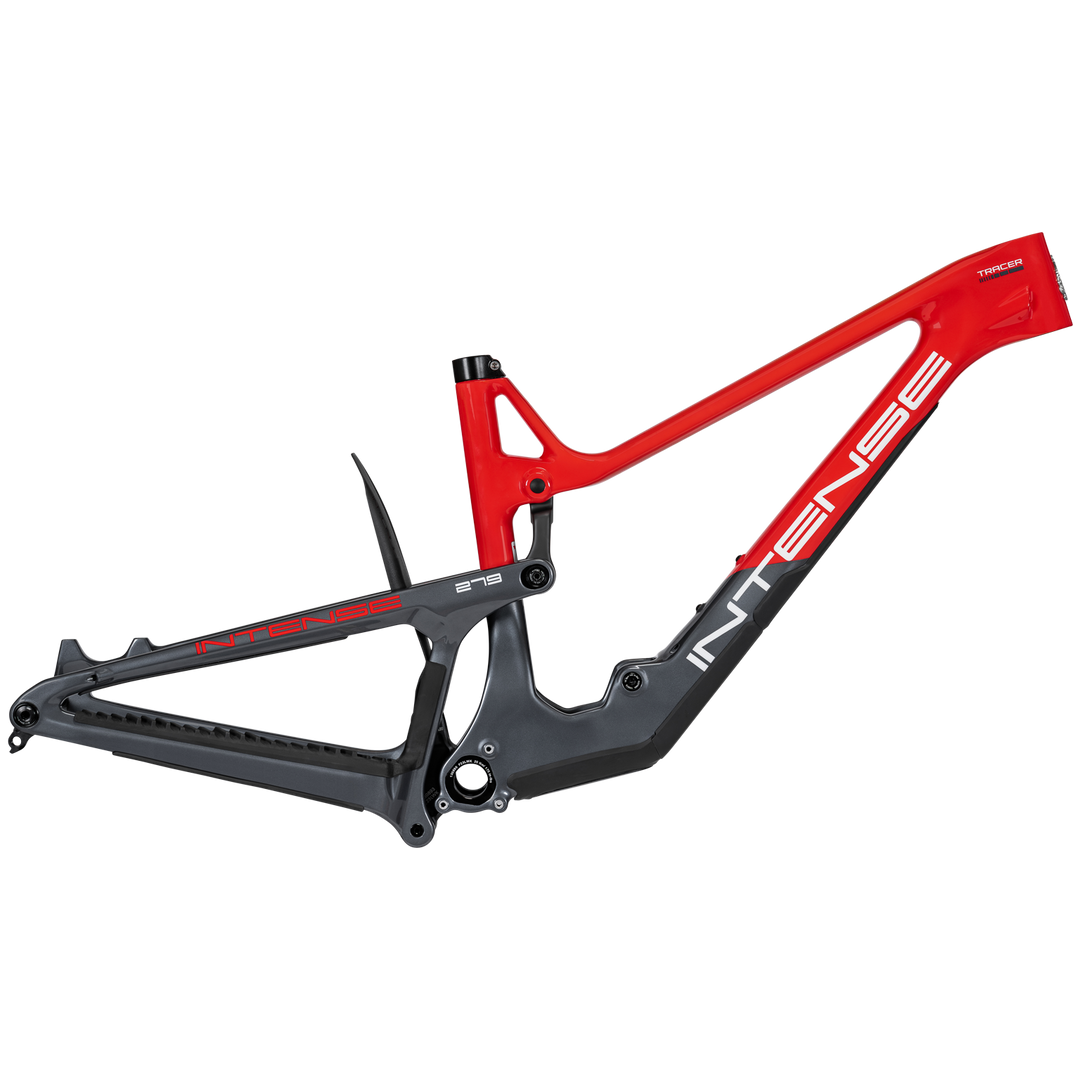

| Model: Tracer 279 |
| Year: 2026 |
| Category: Enduro |
| 279 Available Sizes: S, M, L, XL |
| 279 Available Colors: Blue & Red |
| 279 Frame Weight (No Shock): (S) 7lbs / 3.17kg | (M) 7lbs 3oz / 3.26kg | (L) 7lbs 6oz / 3.34kg | (XL) 7lbs 6oz / 3.34kg |

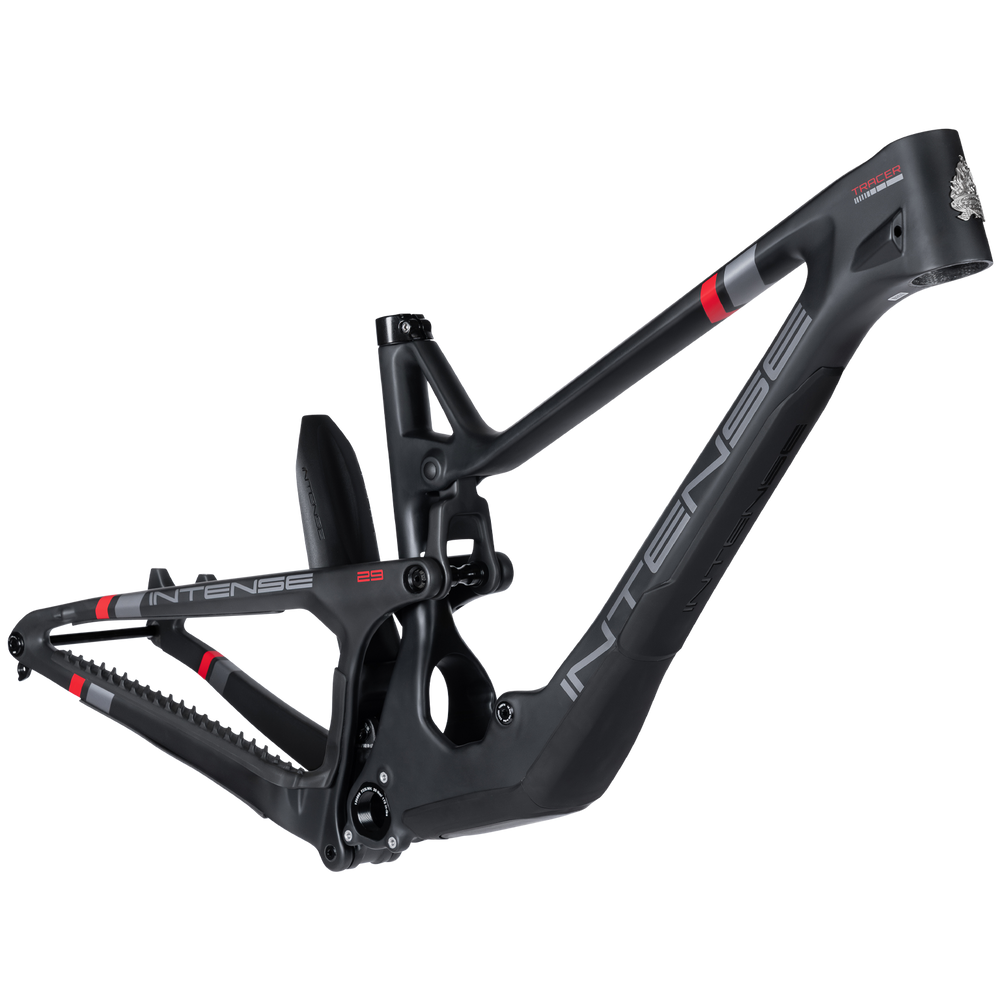

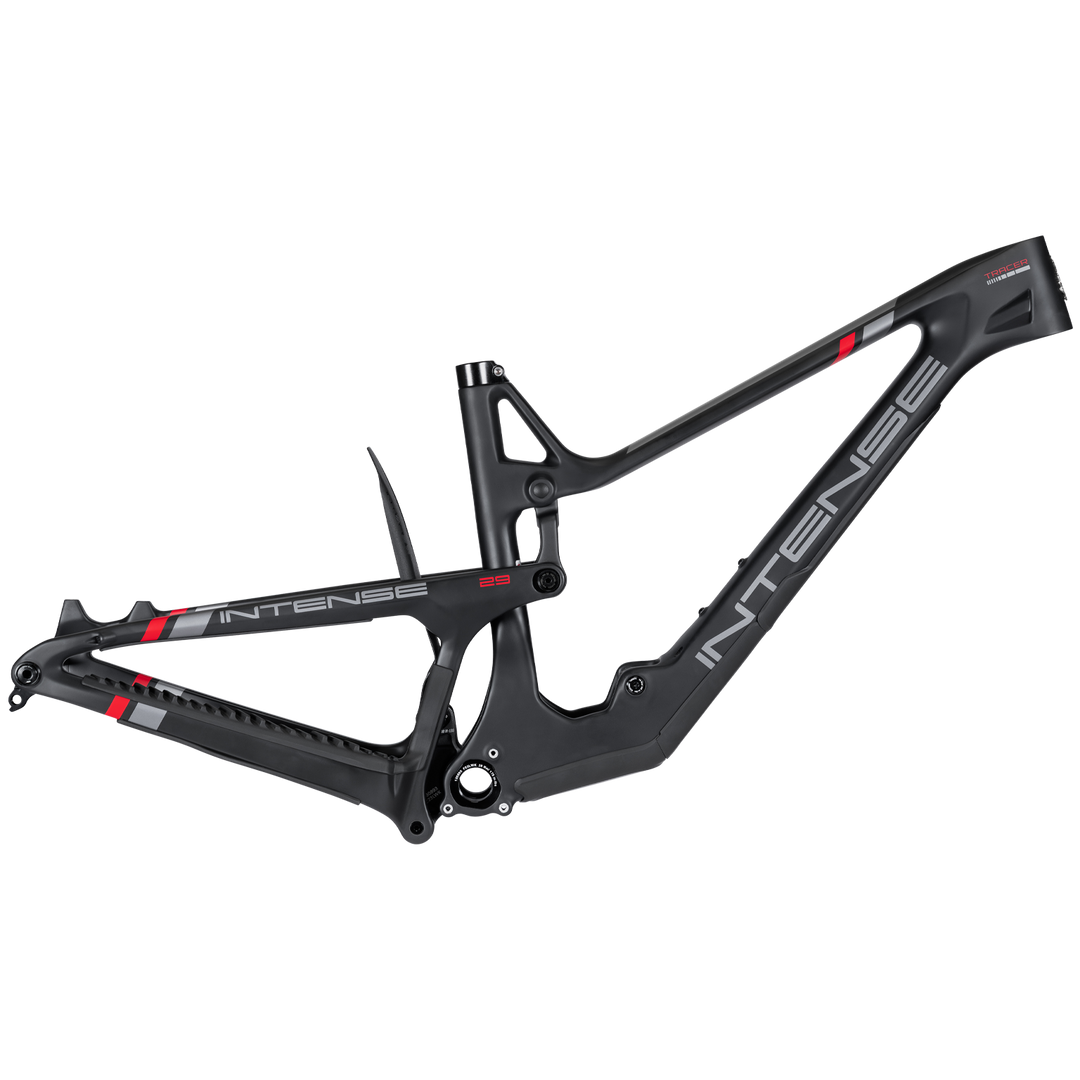

| 29 Available Sizes: M, L, XL |
| 29 Available Colors: Satin Black & Pearl Gloss White |
| 29 Frame Weight (No Shock): (M) 7lbs 3oz / 3.26kg | (L) 7lbs 6oz / 3.34kg | (XL) 7lbs 8oz / 3.4kg |
| Max Front Travel: 170mm (Single Crown Only) |
| Max Rear Travel: 170mm |
| Headset: ZS49 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.1mm (Intense Collar Only) |
| 279 Max Seatpost Insertion Depth: (S) 200mm | (M) 260mm | (L) 260mm | (XL) 280mm |
| 29 Max Seatpost Insertion Depth: (M) 260mm | (L) 260mm | (XL) 280mm |
| BB Shell Width: BSA 73mm |
| Max Chainring: 32T |
| Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S |
| Recommended Max Tire Width: 2.5" |
| Brakes: Disc Brake Hydraulic, Post Mount / Direct |
| Min Brake Rotor Size: 180mm |
| Max Brake Rotor Size: 203mm (with adapter) |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Rear Hub Spacing: 12mm x 148mm Boost |
| Shock Size: 205mm x 65mm |
| Front Shock Mount Hardware: Trunnion |
| Rear Shock Mount Hardware: 8mm x 30mm |
Dominate The Trails.
An Enduro bike is built for one purpose: to dominate the descents and climb back up with ease—ready to do it all over again. The Tracer is engineered to excel on both fronts, delivering the ideal balance of performance, durability, and modern versatility.
FEATURES

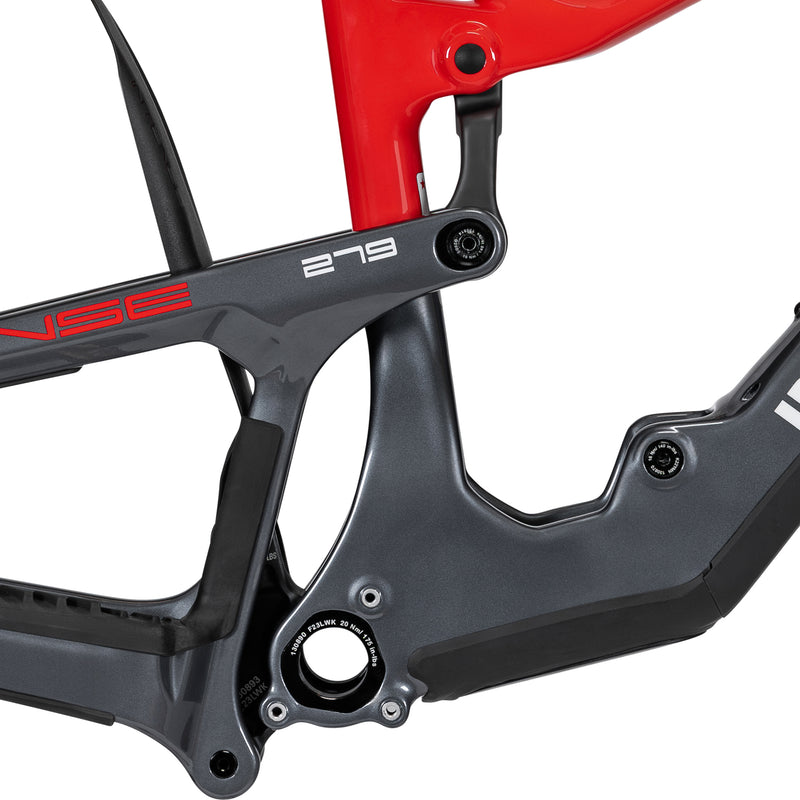

JS Tuned Enduro Link
The JS Enduro Link suspension system pairs a bottom-link-driven rear shock with a carbon integrated top link to deliver efficient pedaling, a lower center of gravi-ty, and exceptional control, strength, and responsiveness on descents.

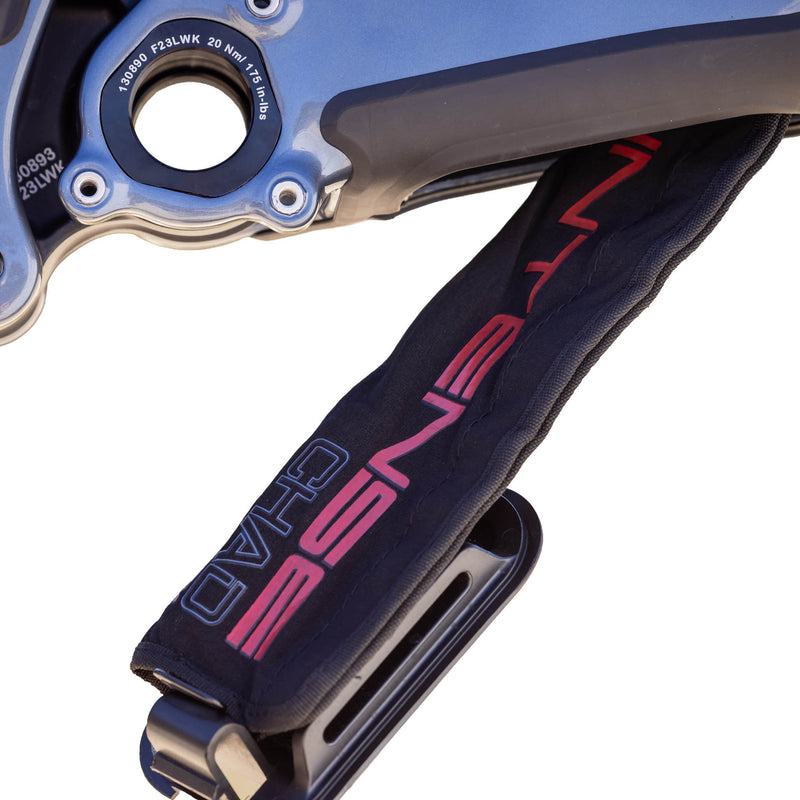

Chad Storage System
The in-frame storage solution system is de-signed to securely hold all your trail essentials, keeping your upper body unburdened.

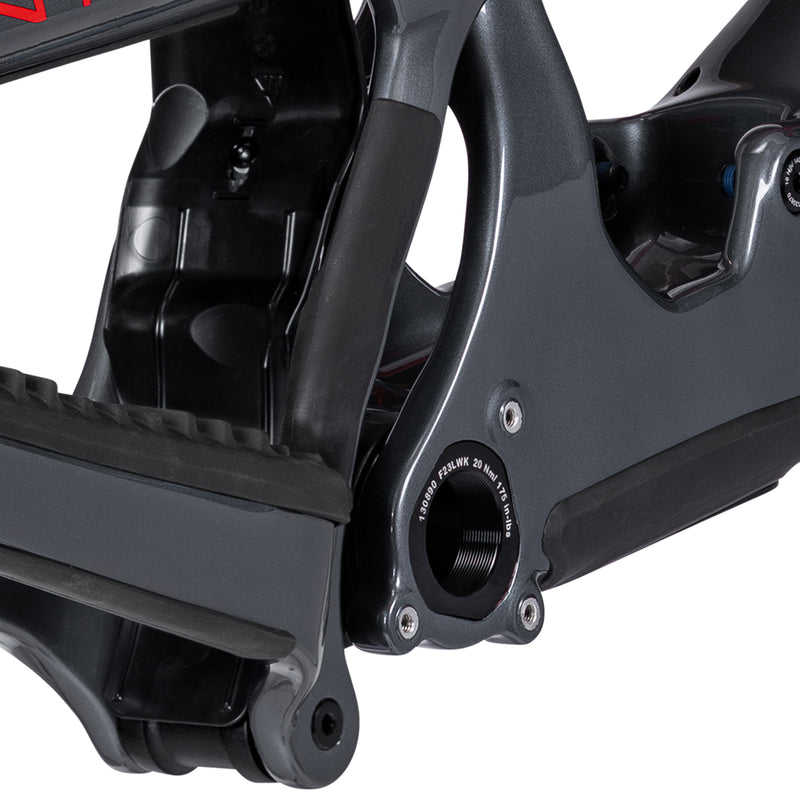

Threaded BB
The Tracer’s threaded bottom bracket is the preferred choice for maintenance minded riders, offering reliable, creak-free performance over the long haul.

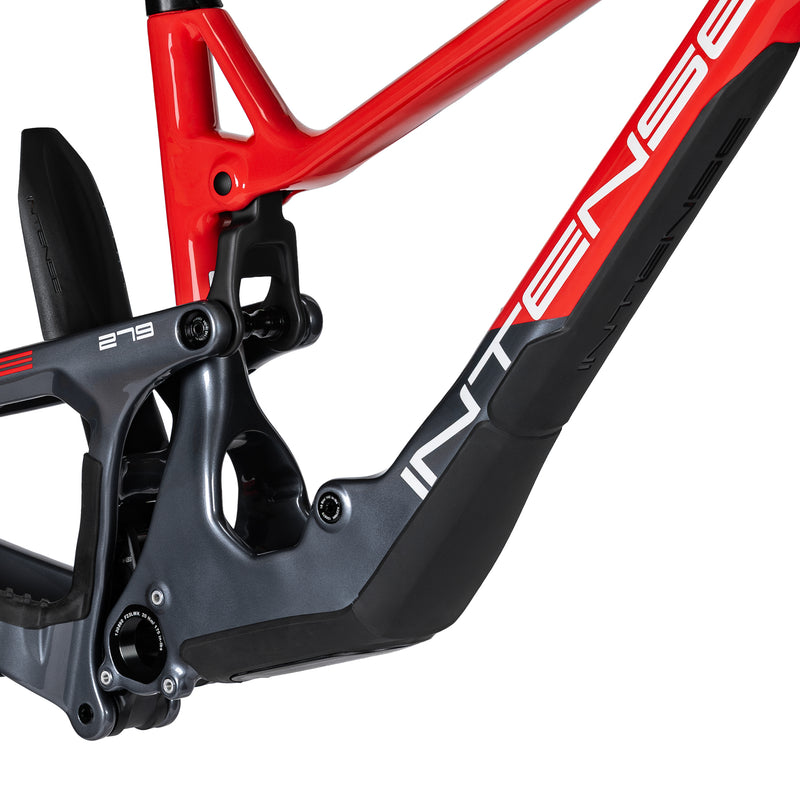

Frame Protection
Integrated frame protection keeps the front and rear triangle looking new, while a built-in rear fender helps shield the shock from dirt and debris.

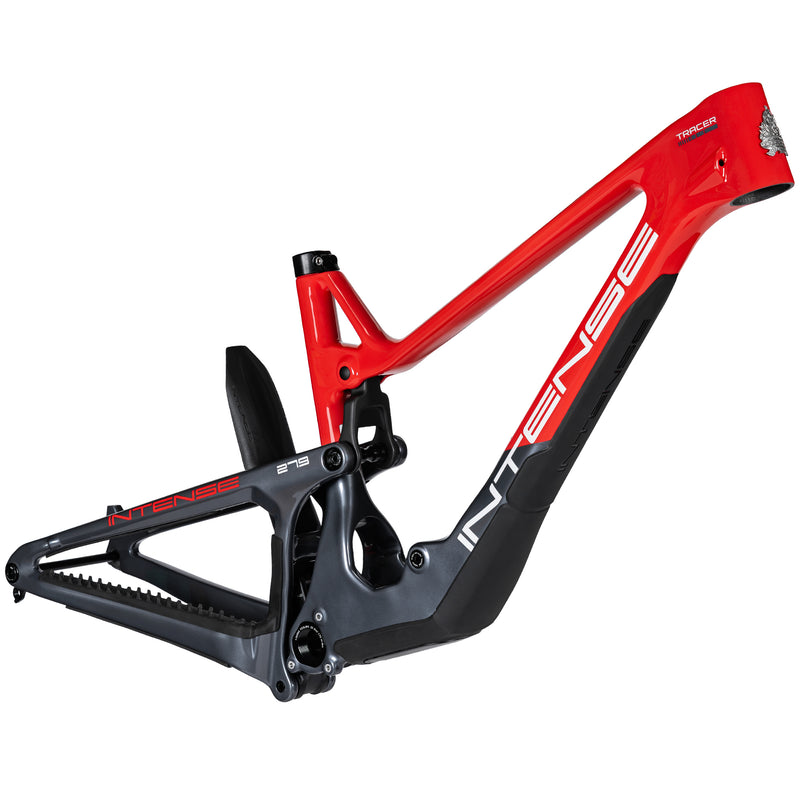

Carbon Fit
The Tracer’s carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance across the entire size range.

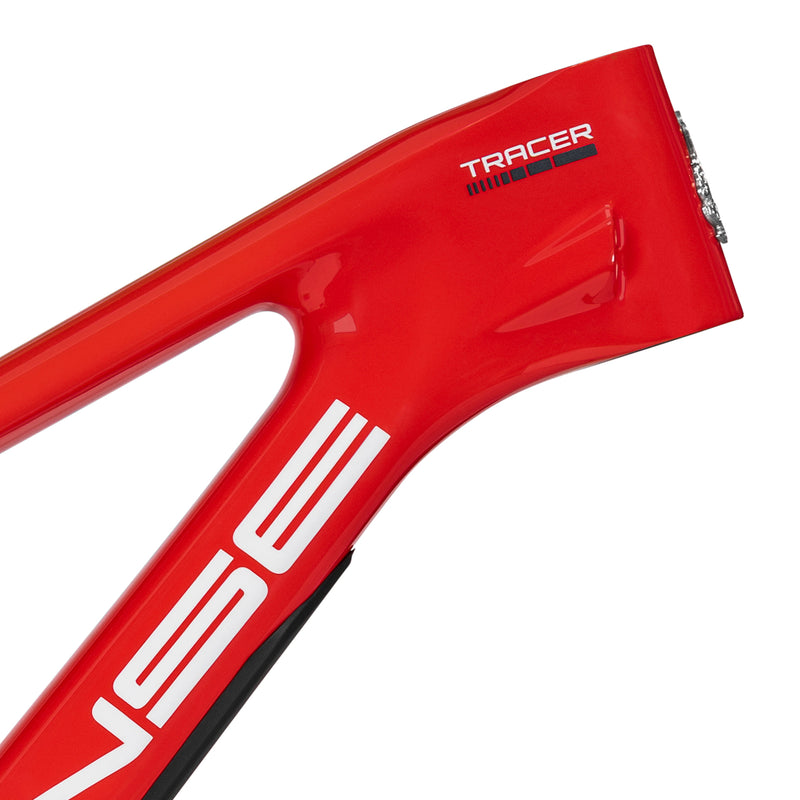

Internal Cable Routing
Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.
