Trail | 150MM | 26" wheels

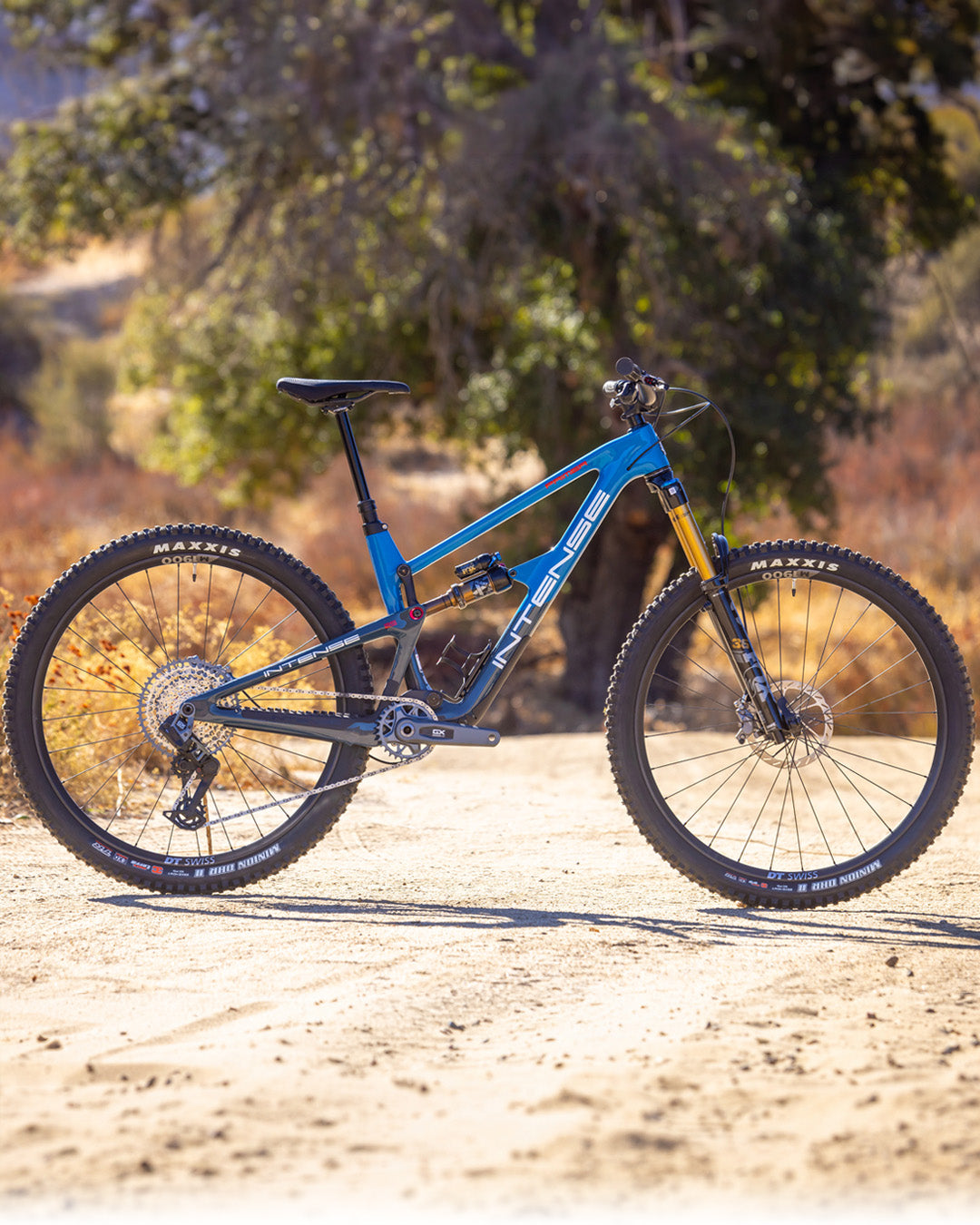

At first glance, the new Primer may resemble its predecessors, but the real magic lies beneath the surface. This latest iteration delivers unmatched performance with a reinforced carbon fiber layup and a newly redesigned, externally mounted top link. The wider top link enhances frame stiffness, providing a more responsive and confident ride on the trail. With 150mm front and 150mm rear travel, the Primer is engineered to excel on every trail, offering pure perfection with every ride.

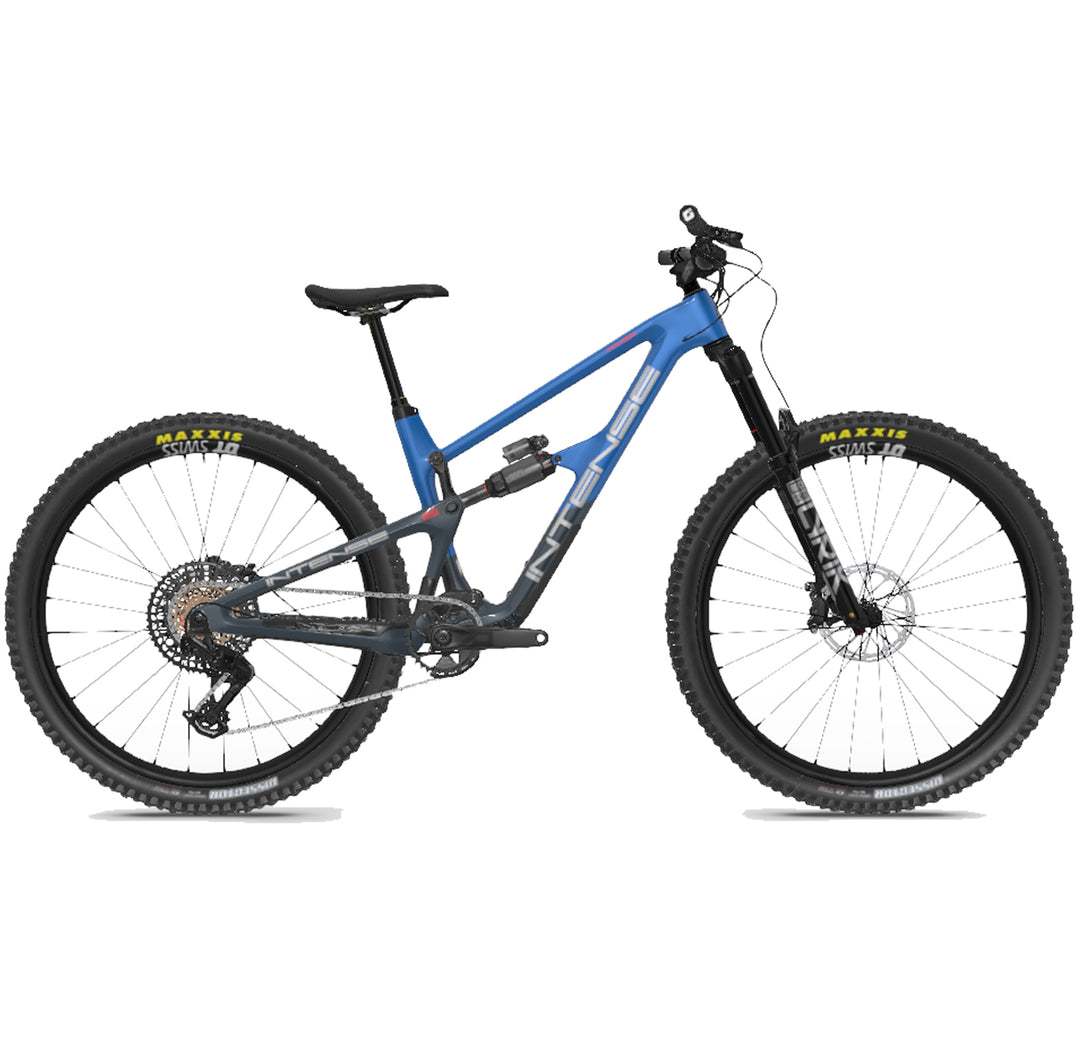

Primer Foundation
$4,999

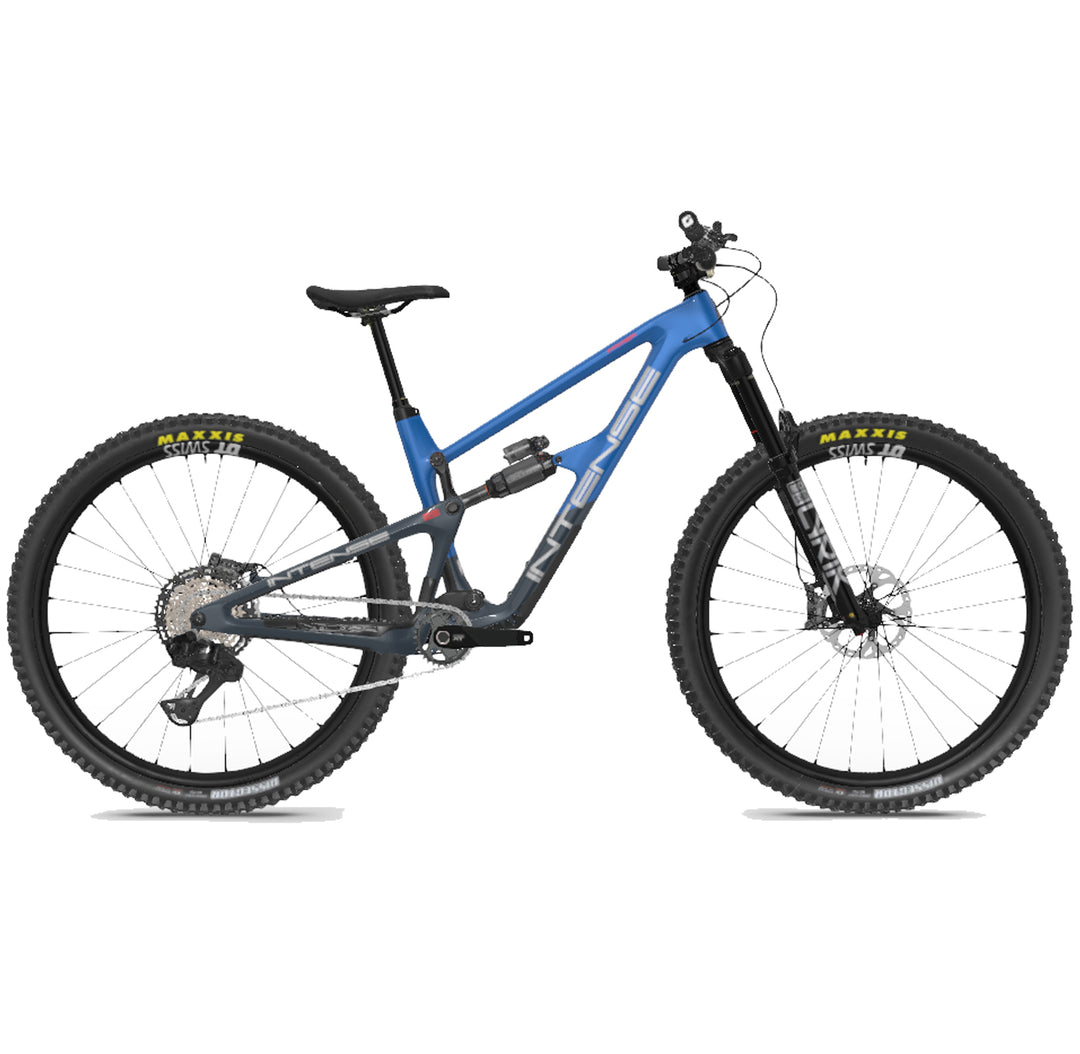

Primer Pro
$5,999
Primer Legacy
$6,999

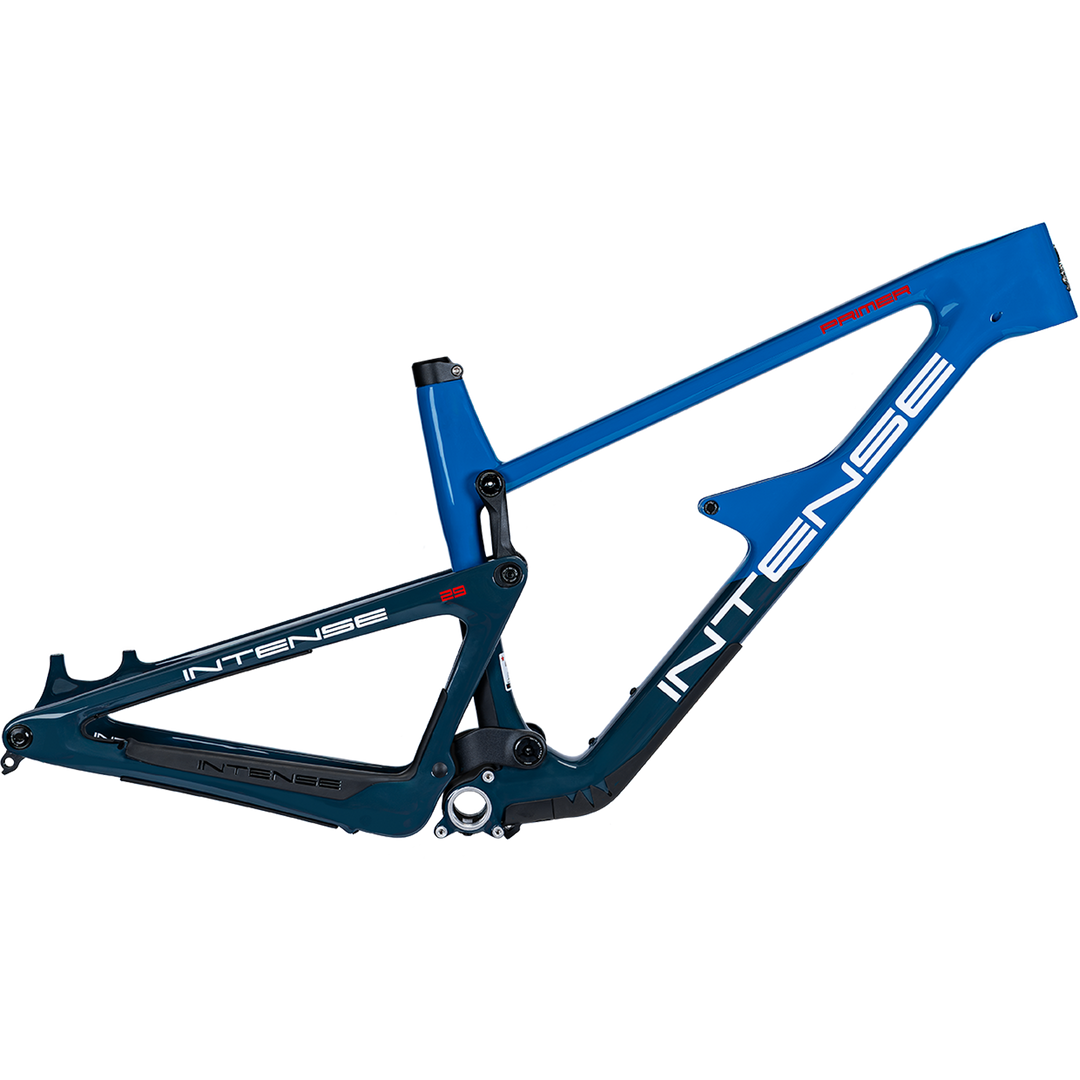

Primer Frameset
$2,999
Bring your All-New Custom Primer build to life, with our 3D Configurator
| Frame Size | SM | MD | LG | XL |
| Reach | 427mm | 456mm | 483mm | 507mm |
| Headtube Angle | 65.6° | 65.6° | 65.6° | 65.6° |
| Seattube Angle (Effective) | 77° | 77° | 77° | 77° |
| Seattube Angle (Actual) | 73° | 73° | 73° | 73° |
| Wheelbase | 1188mm | 1217mm | 1247mm | 1279mm |
| Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| Front Center | 749mm | 778mm | 808mm | 840mm |
| BB Height | 344mm | 344mm | 344mm | 344mm |
| Stack | 568mm | 597mm | 626mm | 656mm |
| Toptube Length | 618mm | 618mm | 627mm | 645mm |
| Headtube Length | 90mm | 90mm | 100mm | 120mm |
| BB Drop | 31mm | 31mm | 31mm | 31mm |
| Seattube Length | 405mm | 420mm | 440mm | 465mm |
| Max Seatpost Insertion Depth | 255mm | 255mm | 280mm | 280mm |
| Model: Primer |
| Model Year: 2026 |
| Category: Trail |
| Available Sizes: S, M, L, XL |
| Available Colors: Blue |
| Frame Weight (No Shock): (S) 5lbs 10oz / 2.55kg | (M) 5lbs 13oz / 2.63kg | (L) 6lbs / 2.72kg | (XL) 6lbs 3oz / 2.80kg |
| Max Front Travel: 150mm |
| Max Rear Travel: 150mm |
| Headset: ZS44 Upper / EC49 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.1mm (Intense Collar Only) |
| Max Seatpost Insertion Depth: (S) 255mm | (M) 255mm | (L) 280mm | (XL) 280mm |
| BB Shell Width: BSA 73mm |
| Max Chainring: 34T |
| Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S |
| Recommended Max Tire Width: 2.5" |
| Brakes: Disc Brake Hydraulic, Post Mount / Direct |
| Min Brake Rotor Size: 180mm |
| Max Brake Rotor Size: 203mm (with adapter) |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Rear Hub Spacing: 12mm x 148mm Boost |
| Shock Size: 210mm x 55mm |
| Front Shock Mount Hardware: 8mm x 20mm |
| Rear Shock Mount Hardware: 8mm x 20mm |
Trail Weapon.
At first glance, the updated Primer may resemble its predecessors, but the real magic lies beneath the surface. This latest iteration delivers unmatched performance with a reinforced carbon fiber layup and a newly redesigned, externally mounted top link. The wider top link enhances frame stiffness, providing a more responsive and confident ride on the trail. With 150mm front and 150mm rear travel, the Primer is engineered to excel on every trail, offering pure perfection with every ride.
FEATURES

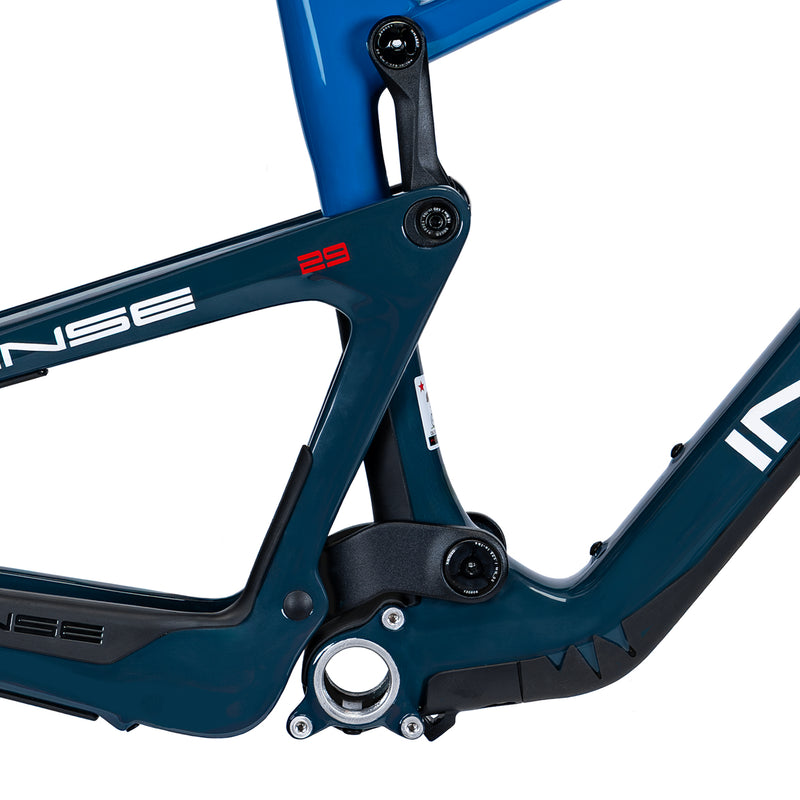

JS Tuned Link System
The JS Tuned Trail Link delivers an incredibly smooth ride across mixed terrain, combining excellent pedaling efficiency with supportive climbing performance. Complementing the suspension design, the redesigned external top link is now wider to increase frame stiffness, creating a more responsive and confident ride on the trail.

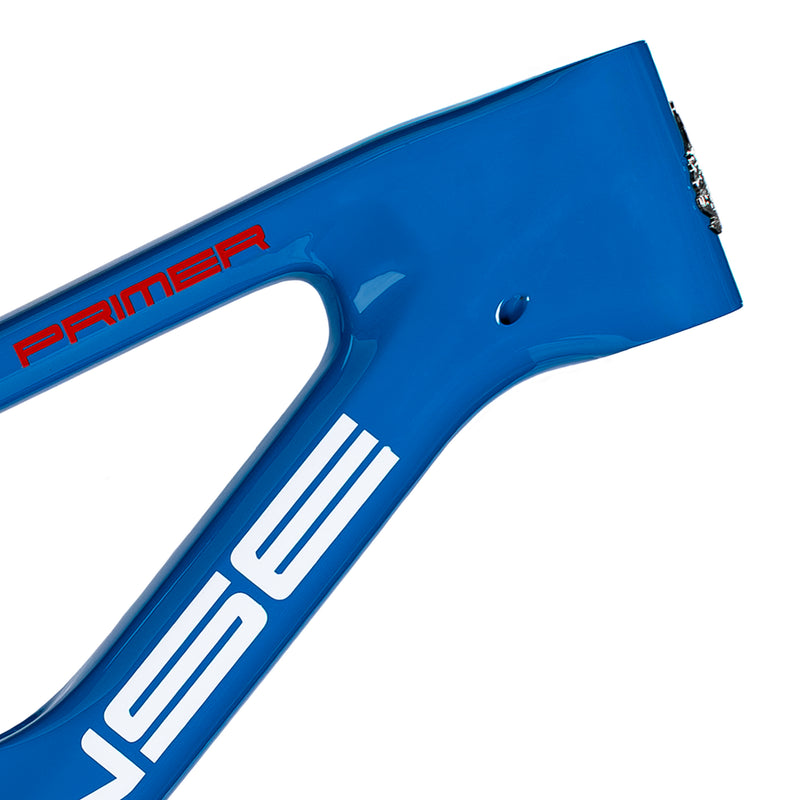

Internal Cable Routing
Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.

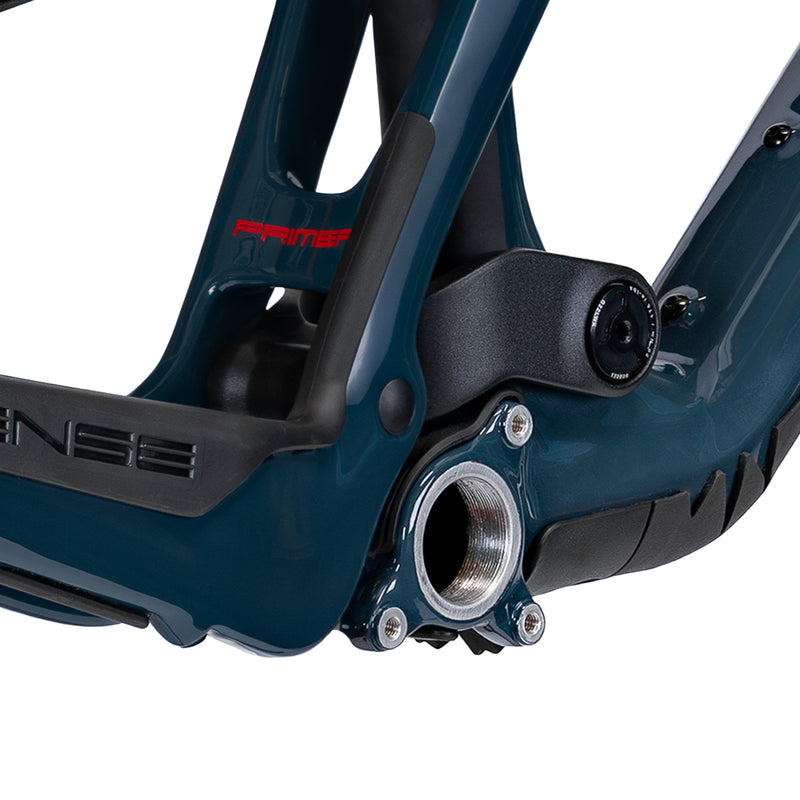

Threaded BB
The Primer’s threaded bottom bracket is the preferred choice for maintenance-minded riders, offering reliable, creak-free performance over the long haul.

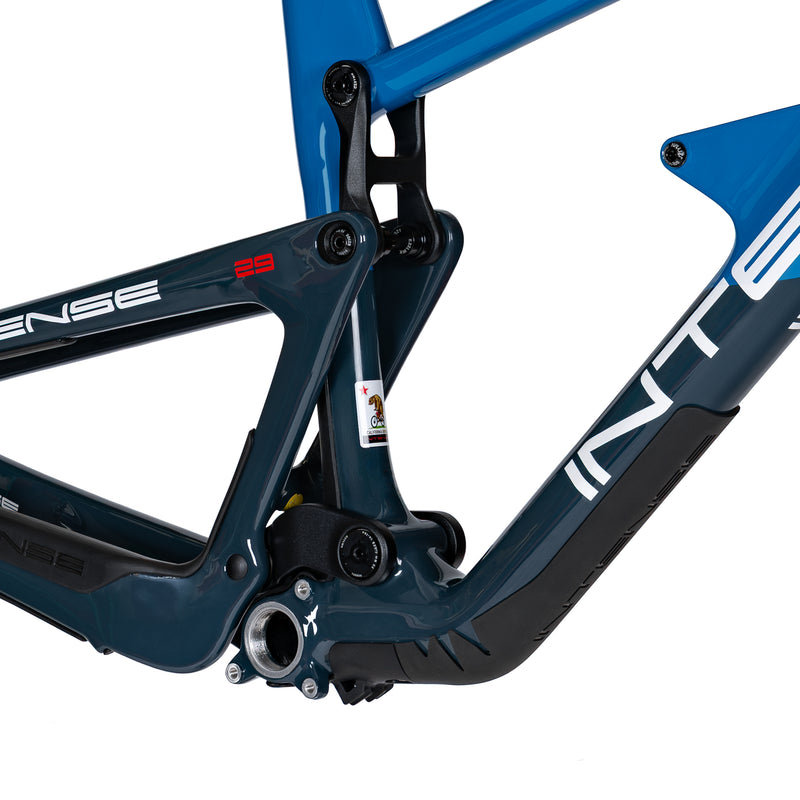

Frame Protection
Integrated frame protection keeps the front and rear triangle looking new.

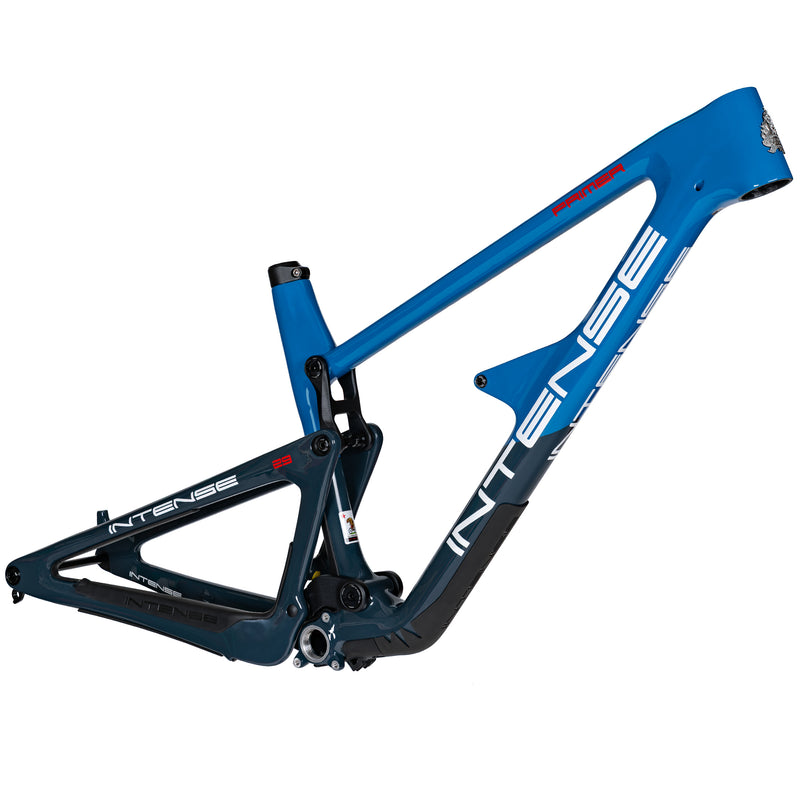

Carbon Fit
The Primer’s carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance.

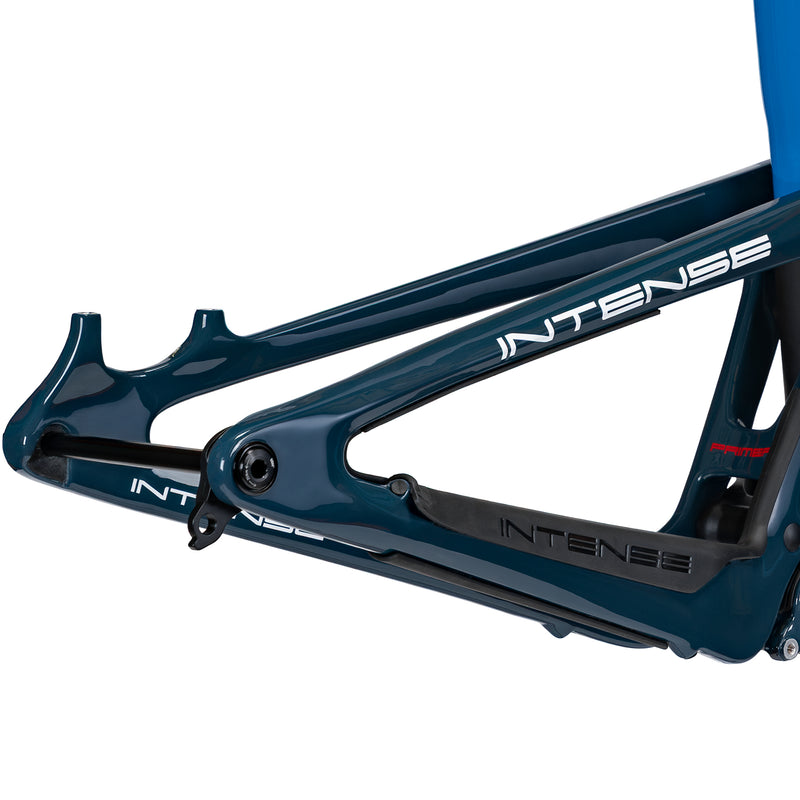

UDH & T-Type Compatibility
The frame comes with a Universal Derailleur Hanger (UDH) for improved alignment and easy replacement, and it fully supports SRAM’s T-Type drivetrain systems for enhanced performance and durability.
