Regular price Sale price$2,499.00
/

An enduro bike is built for one purpose: to dominate the descents and climb back up with ease—ready to do it all over again. The new Tracer 279 is engineered to excel on both fronts, delivering the ideal balance of performance, durability, and modern versatility. UDH equipped and T-Type drivetrain compatible

*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.

An Enduro bike needs to do two things: eat up mountainous terrain on the downhills, and then climb back up to do it all again. With our new Tracer 279 we have created a bike that can do just that. And with this frame-only option your Tracer 279 can be built to be perfectly at home in the bike park doing laps, out in the back country on an adventure or racing against the clock. It’s your choice.
BUILD TRACER 279

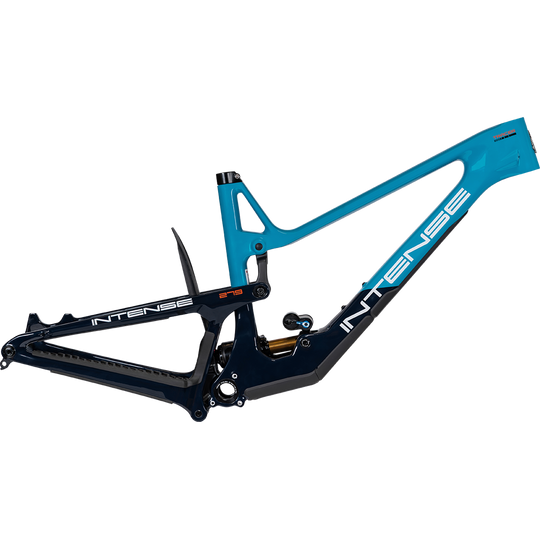

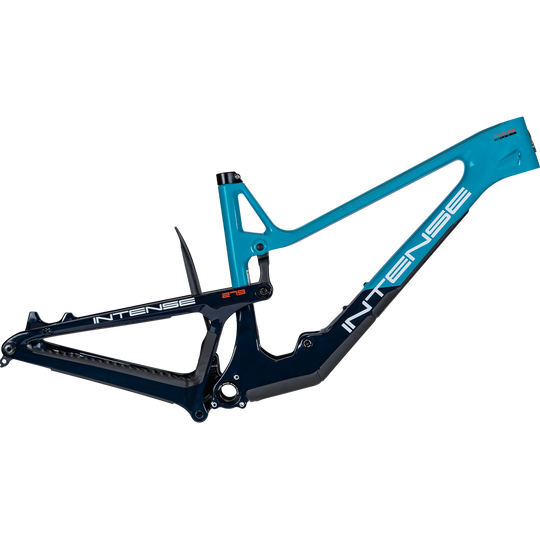

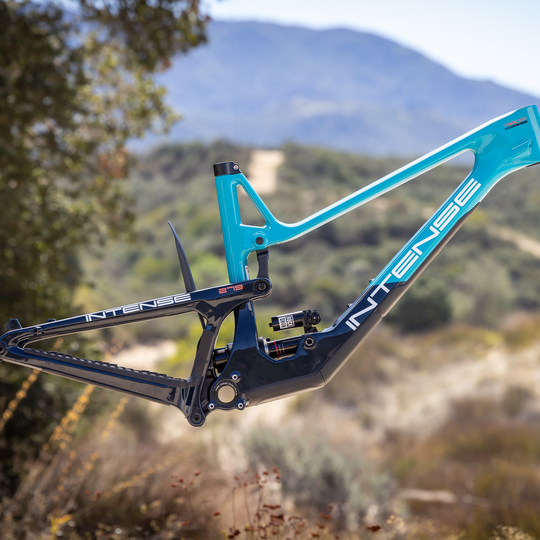

FRAME Full carbon fiber front and rear triangle utilizing an optimized layup for the enduro category. Features fully guided internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, and threaded BB. Universal derailleur hanger (UDH), T-Type compatible, quick release rear axle (148mm Boost Hub Spacing)

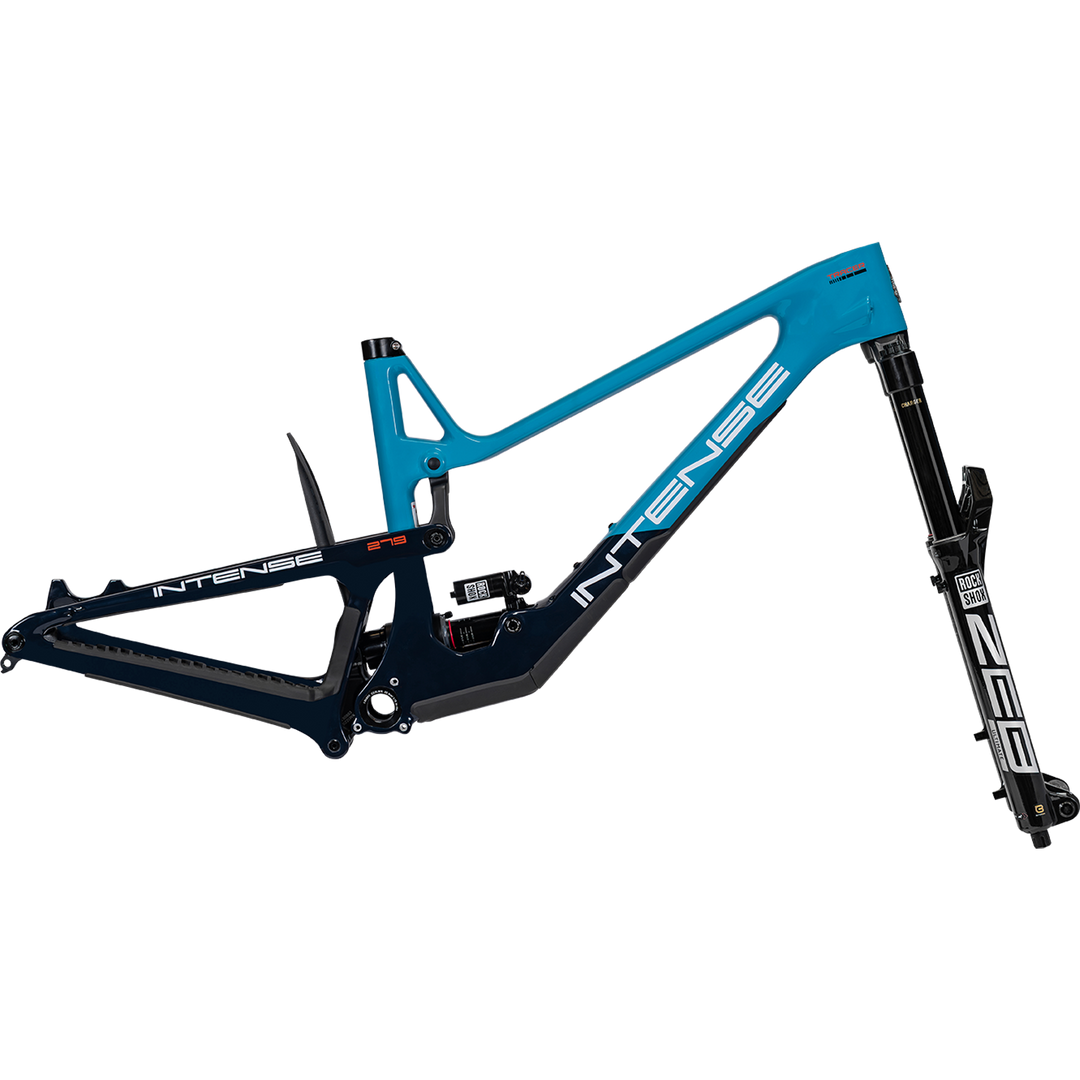

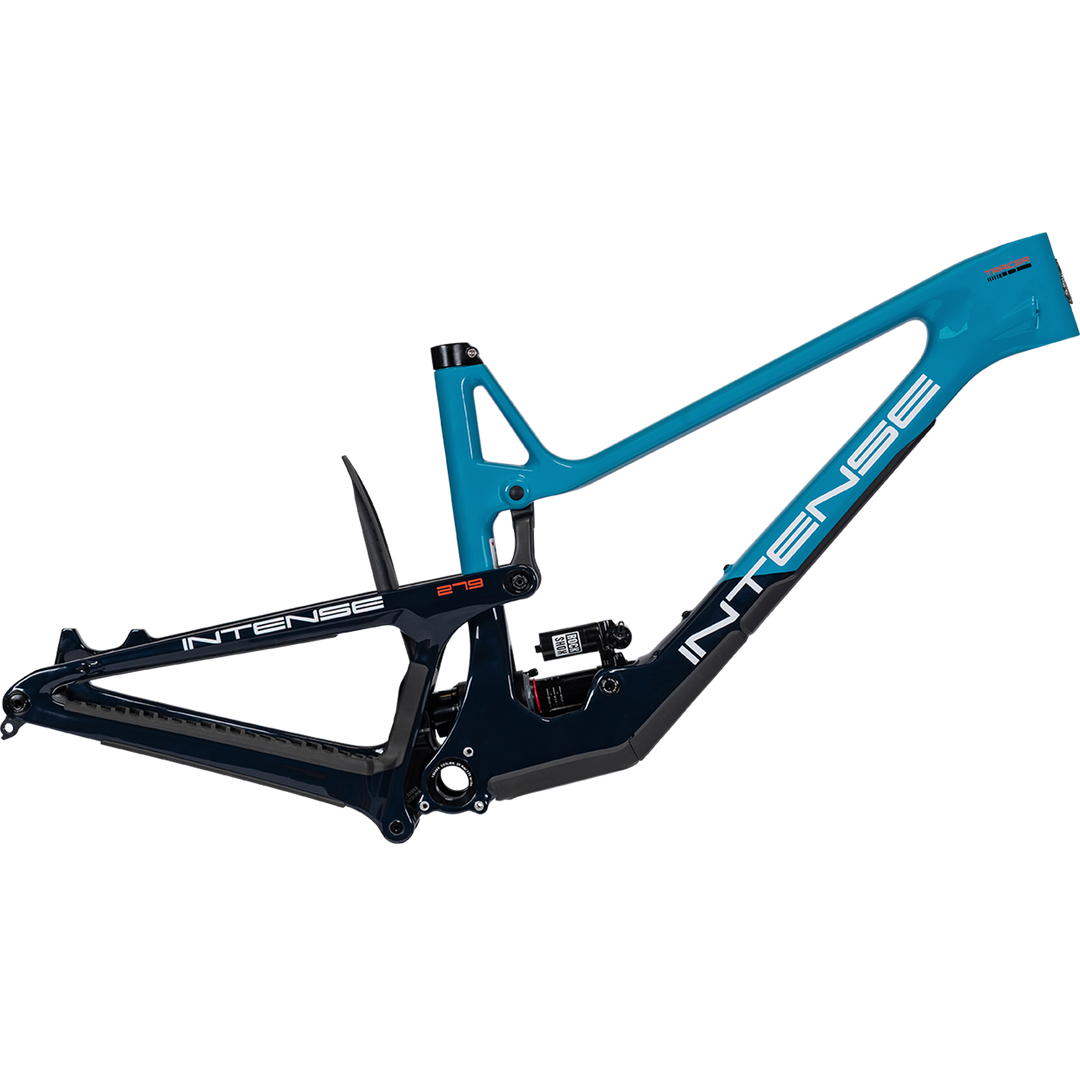

ROCKSHOX VIVID ULTIMATE SHOCK TouchDown RC2T damper, 170mm travel, rebound adjustment, high/low speed compression adjustment, DebonAir technology, adjustable hydraulic bottom out with five compression settings.

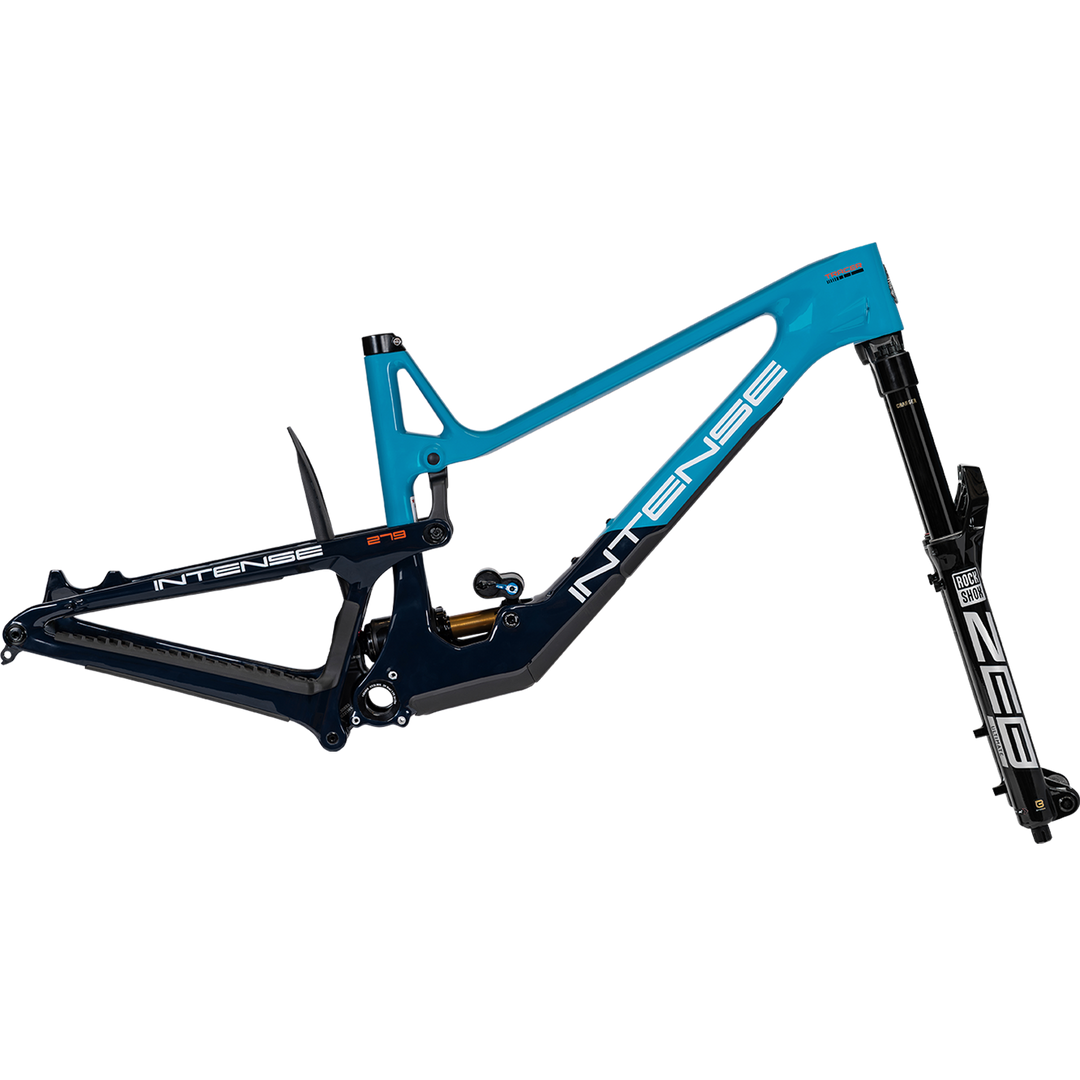

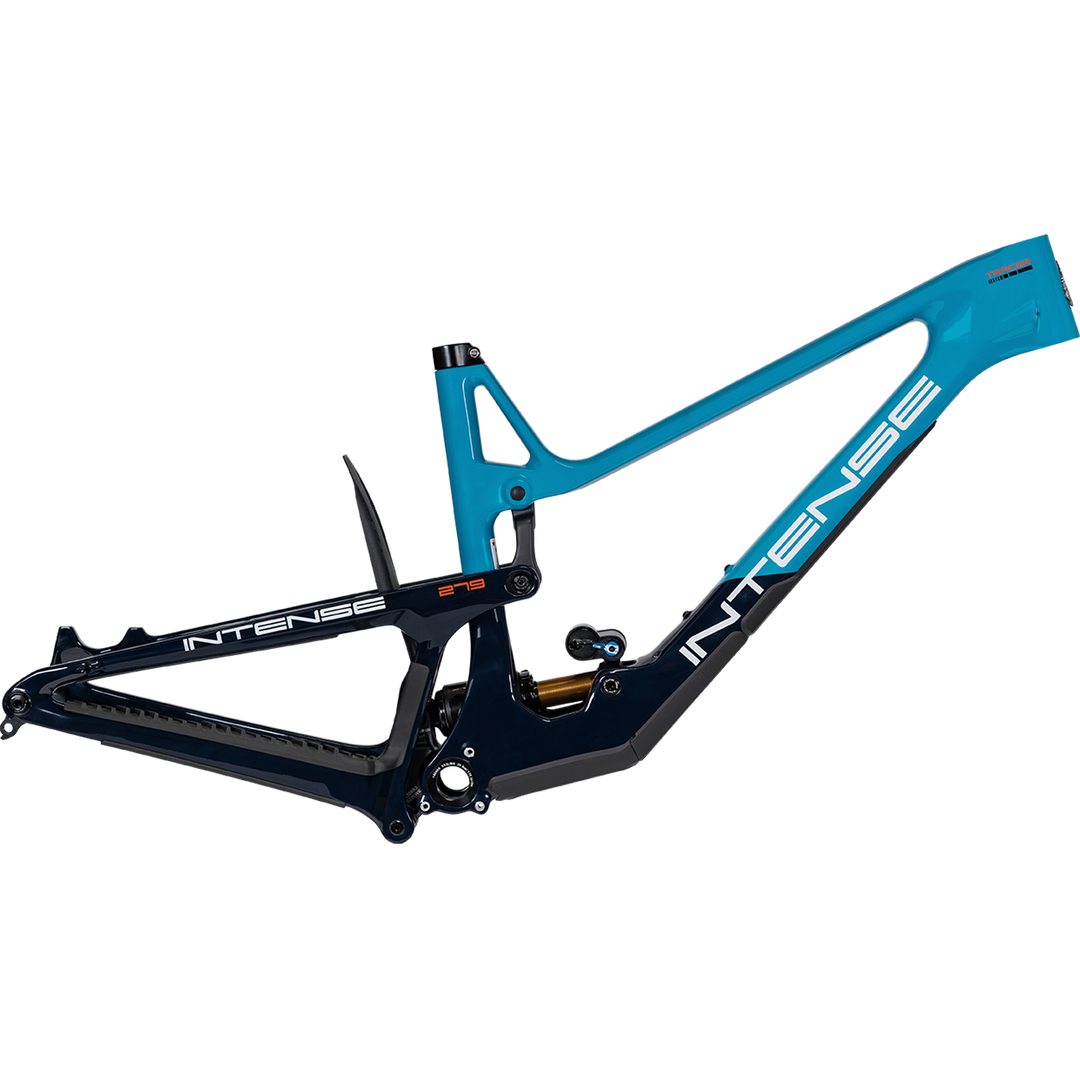

FOX FACTORY FLOAT X2 SHOCK 4-way adjustment, 170mm travel, high/low speed compression, 2pos adjustment, kashima, 4-way monotube.

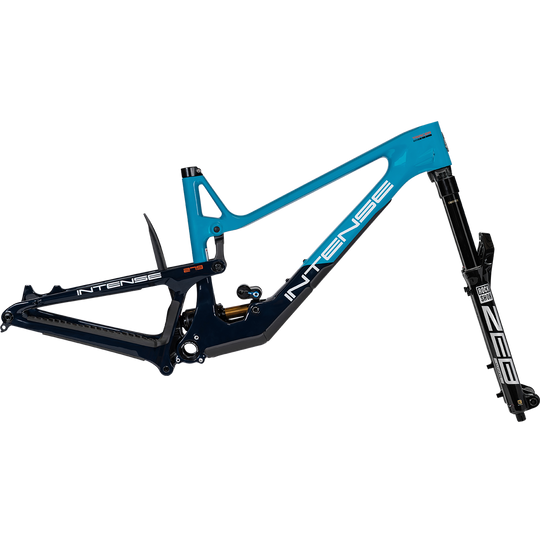

ROCKSHOZ ZEBB ULTIMATE FORK Charger 3.1 RC2's, 170mm travel, rebound adjustment, high/low speed compression, ButterCups, Debon Air+.
MODEL YEAR 2026
CATEGORY Enduro
AVAILABLE SIZES S, M, L, XL
MAX FRONT TRAVEL 170mm (Single Crown Only)
MAX REAR TRAVEL 170mm
HEADSET ZS49 Upper/ ZS56 Lower
SEATTUBE DIAMETER 31.6mm
SEATPOST CLAMP 31.6mm (INTENSE Collar Only)
MAX SEATPOST INSERTION DEPTH (S)200mm (M)260mm (L)260mm (XL)280mm
BB SHELL WIDTH BSA 73mm
MAX CHAINRING 32T
CHAINLINE 52mm Shimano 12S
52mm SRAM Eagle 12S
55mm SRAM T-Type 12S
RECOMMENDED MAX TIRE WIDTH 2.5"
BRAKES Disc Brake Hydraulic, Post Mount/Direct
MIN BRAKE ROTOR SIZE 180mm
MAX BRAKE ROTOR SIZE 203mm (with adapter)
DERAILLEUR HANGER UDH
T-TYPE COMPATIBLE Yes
REAR HUB SPACING 148mm x 12mm through Axle Boost
SHOCK SIZE 205mm x 65mm
FRONT SHOCK MOUNT HARDWARE Trunnion
REAR SHOCK MOUNT HARDWARE 8mm x 30mm

FRAME SIZE SM MD LG XL
REACH 420mm 450mm 475mm 500mm
HEADTUBE ANGLE 64° 64° 64° 64°
SEATTUBE ANGLE (EFFECTIVE) 77.4° 77.4° 77.4° 77.4°
SEATTUBE ANGLE (ACTUAL) 72.4°
72.4°
72.4°
72.4°
WHEELBASE 1195mm 1229mm 1258mm 1287mm
CHAINSTAY LENGTH 439mm 439mm 439mm 439mm
FRONT CENTER 757mm 791mm 820mm 849mm
BB HEIGHT 342mm 342mm 342mm 342mm
STACK 622mm 631mm 640mm 649mm
TOPTUBE LENGTH 559mm 591mm 619mm 646mm
HEADTUBE LENGTH 90mm 100mm 110mm 120mm
BB DROP FRONT WHEEL 32mm 32mm 32mm 32mm
BB DROP REAR WHEEL 12mm 12mm 12mm 12mm
SEATTUBE LENGTH 385mm 418mm 440mm 465mm
MAX SEATPOST INSERTION DEPTH 200mm 260mm 260mm 280mm
WEIGHT (NO SHOCK) 7lbs / 3.17kg 7lbs 3oz / 3.26kg 7lbs 6oz / 3.34kg 7lbs 6oz / 3.34kg

*Based off a 584mm axle to crown, 44mm offset fork // **Based off tire OD of 750mm front and 709mm Rear

JS TUNED ENDURO LINK

The bottom-link-driven rear shock provides a firm pedaling platform and lowers the center of gravity, offering exceptional stability and control on descents.

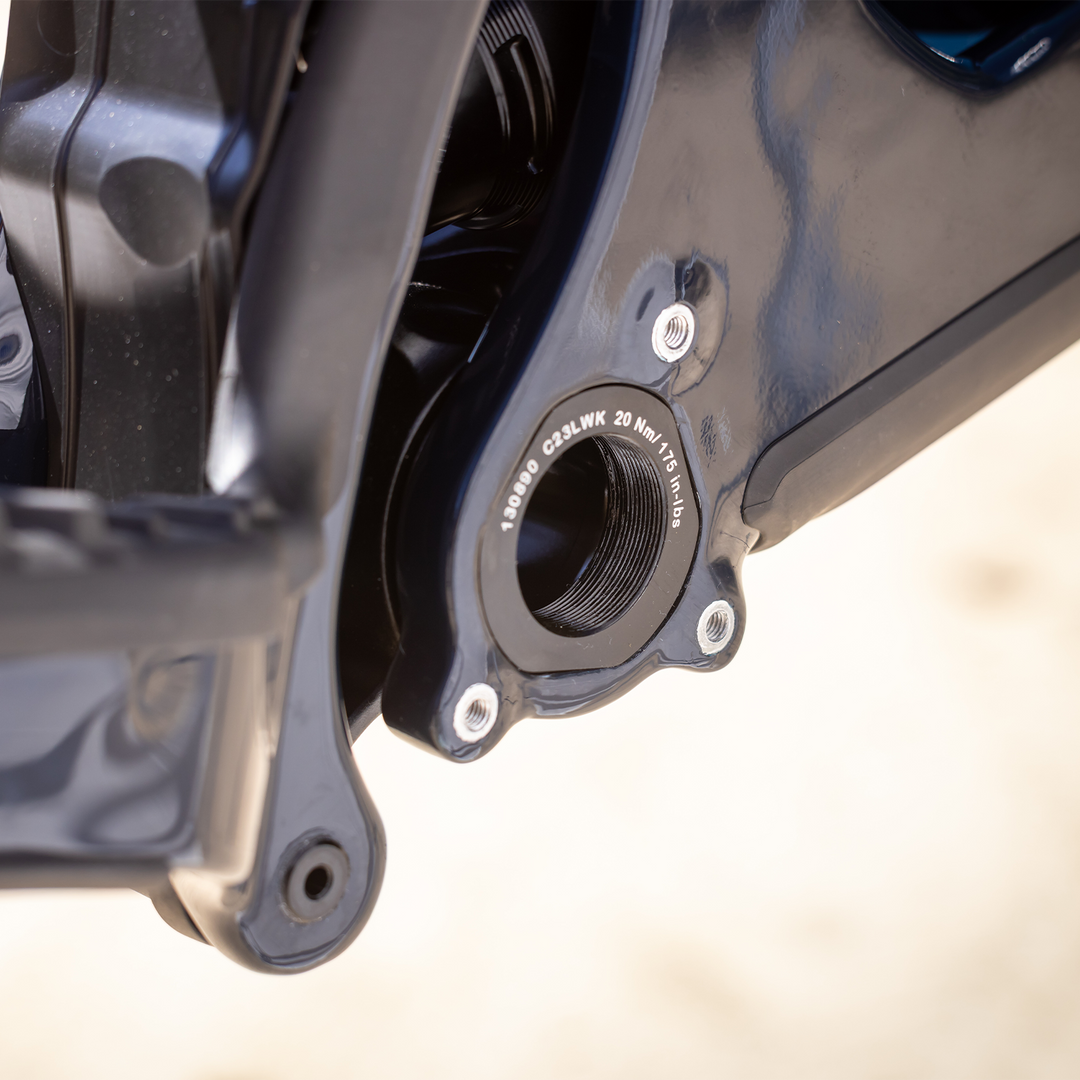

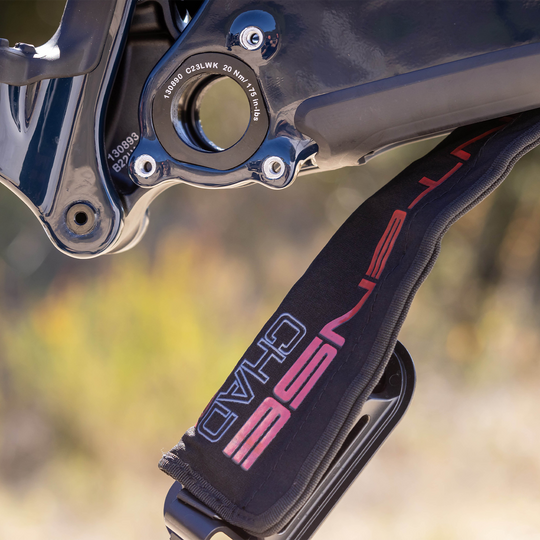

CHAD STORAGE SYSTEM

The in-frame storage solution system is designed to securely hold all your trail essentials, keeping your upper body unburdened.

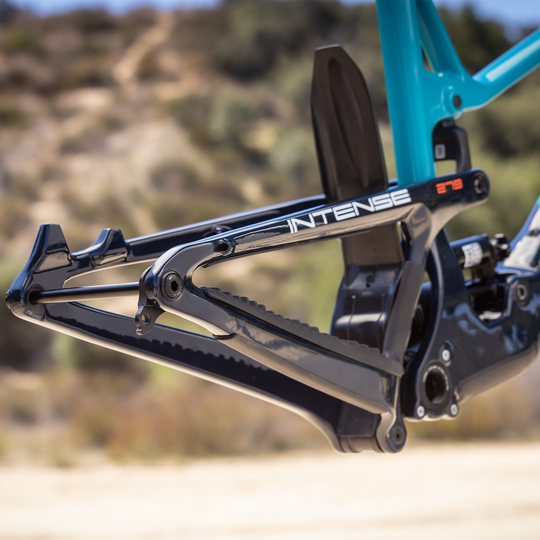

INTEGRATED REAR FENDER

Stay clean and focused on the ride with a large rear mud flap designed to protect you from mud and debris.

INTERNAL CABLE ROUTING

Internally guided routing for the shifter, dropper post, and rear brake ensures the Primer remains clean, organized, noise-free, and easy to maintain.

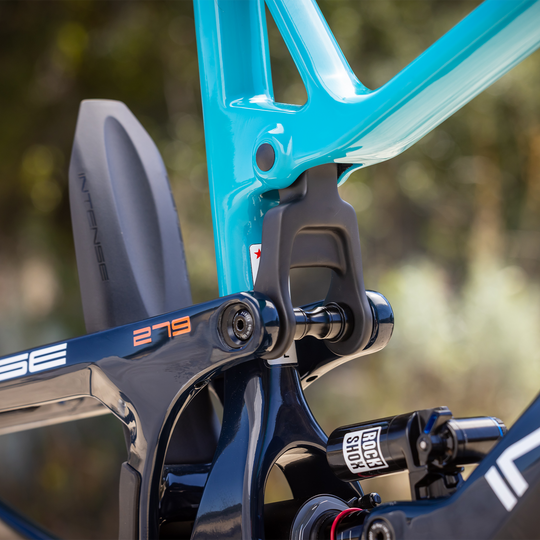

CARBON INTEGRATED TOP LINK

Stiff, light, and exceptionally strong, seamlessly integrated into the frame—this component is a cornerstone of the Tracer’s JS Tuned suspension system.

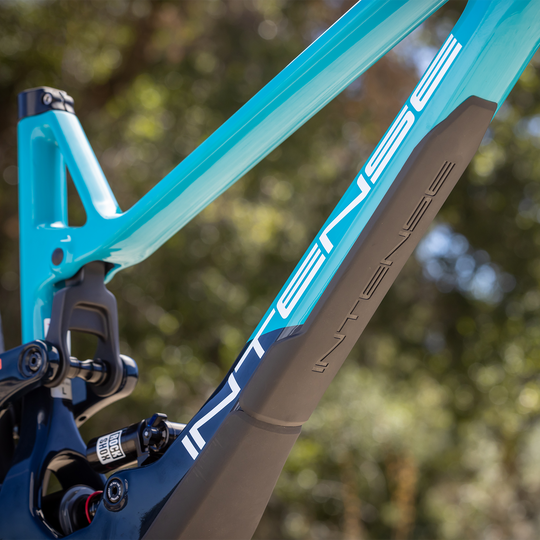

FRAME PROTECTION

The Tracer’s downtube features molded frame protection and a shuttle guard, providing robust defense against impacts and wear.
