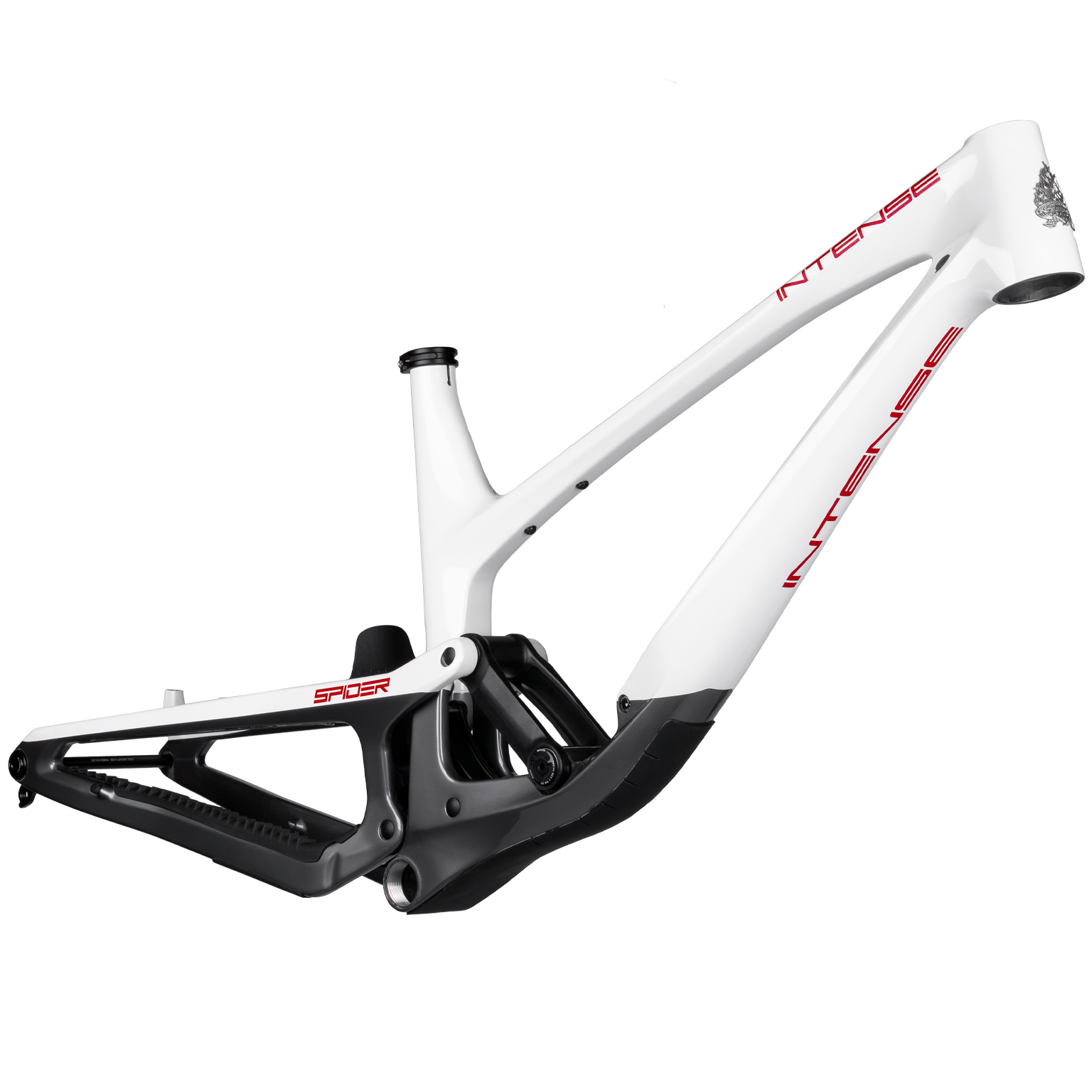

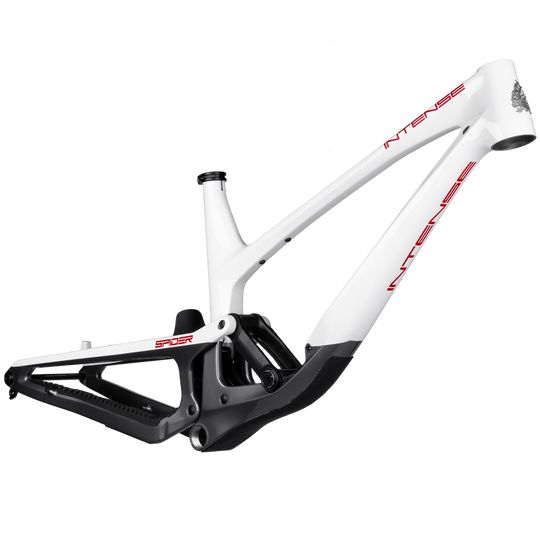

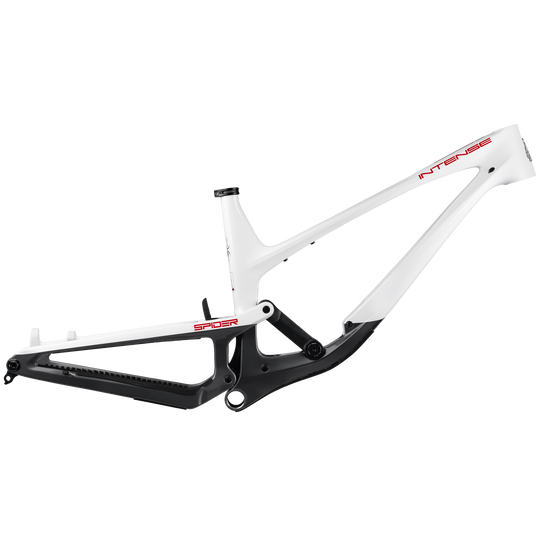

Name: SPIDER FRAME CHALK WHITE
Brand: INTENSE LLC
SKU: 26LSCP9FRMS-WHT-USA-NA
Price: 2999.0 USD
Availability: InStock

$2,999.00

The all-new Spider breathes some fresh air into our Trail category with a completely reimagined carbon frame built for versatility and performance. Delivering 130mm front and rear travel on a full 29” wheel platform, the Spider is designed to excel on everything from long rides to dynamic, technical terrain and punches well above its weight class. Developed from decades of experience and innovation, its redesigned suspension layout and refined kinematics deliver smooth, efficient performance while maintaining the aggressive, responsive feel riders expect. With a bold new visual identity and advanced engineering, the Spider embodies what modern trail riding is all about.

*Note: The fork must be purchased with a rear shock. You can not purchase just the frame and fork. The frame does not qualify for a toolkit.

{"id":44203829952535,"title":"SM \/ No Shock \/ No Fork","option1":"SM","option2":"No Shock","option3":"No Fork","sku":"26LSCP9FRMS-WHT-USA-NA","requires_shipping":true,"taxable":true,"featured_image":{"id":37977527582743,"product_id":8677365514263,"position":1,"created_at":"2026-01-22T13:15:14-08:00","updated_at":"2026-01-22T13:15:38-08:00","alt":null,"width":1536,"height":1536,"src":"\/\/intensecycles.com\/cdn\/shop\/files\/SPIDER-CHALK-WHITE-FRAME-NO-SHOCK.png?v=1769116538","variant_ids":[44203829952535,44203829985303,44203830018071,44203830050839,44203830083607,44203830116375,44203830149143,44203830181911,44203830214679,44203830247447,44203830280215,44203830312983,44203830345751,44203830378519,44203830411287,44203830444055,44203830476823,44203830509591,44203830542359,44203830575127]},"available":true,"name":"SPIDER FRAME CHALK WHITE - SM \/ No Shock \/ No Fork","public_title":"SM \/ No Shock \/ No Fork","options":["SM","No Shock","No Fork"],"price":299900,"weight":45359,"compare_at_price":299900,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","featured_media":{"alt":null,"id":28133478793239,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1536,"width":1536,"src":"\/\/intensecycles.com\/cdn\/shop\/files\/SPIDER-CHALK-WHITE-FRAME-NO-SHOCK.png?v=1769116538"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

BUILD YOUR DREAM BIKE TODAY

FRAME	The Spiders carbon fiber front and rear triangle with a size-specific carbon layup optimized for trail performance. Features internally guided cable routing, a threaded bottom bracket, integrated accessory mount, custom downtube frame protection, and an integrated rear fender. Designed around a full 29” platform with 130mm front and rear travel for efficient, confident performance on varied terrain.
ROCKSHOX DELUXE ULTIMATE SHOCK	DebonAir+ linear XL air can, Low speed compression and low speed rebound adjustments, Open to firm and lock modes, New bottom-out system, Custom tune, 210mm x 50mm, Mounting hardware: F 8mm x 30mm / R 8mm x 20mm
FOX FLOAT FACTORY SHOCK	Evol LV spring, MCU bottom-out bumper, 2 position adjustment switch, Rebound Adjustments, Custom tune, Kashima coating, 210mm x 50mm, Mounting hardware: F 8mm x 30mm / R 8mm x 20mm
ROCKSHOX PIKE ULTIMATE FORK	Charger 3.1 RC2, DebonAir+ with ButterCups, 130mm Travel, 44mm offset, Boost 15x110mm axle, Minimum rotor size 180mm, Maximum rotor size 220mm

MODEL YEAR	2026
CATEGORY	Trail
AVAILABLE SIZES	S, M, L, XL
MAX FRONT TRAVEL	130mm
MAX REAR TRAVEL	130mm
NON-COMPATIBLE SHOCKS	All Coils Fox Live Valve, X2 RockShocx Flight Attendant, Vivid Air
HEADSET	ZS44 Upper/ZS56 Lower
SEATTUBE DIAMETER	31.6mm
SEATPOST CLAMP	36.4mm
MAX SEATPOST INSERTION DEPTH	(S)215mm (M)250mm (L)275mm (XL)300mm
BB SHELL WIDTH	BSA 73mm
MAX CHAINRING	34T
CHAINLINE	52mm Shimano 12S 52mm SRAM Eagle 12S 55mm SRAM T-Type 12S
RECOMMENDED MAX TIRE WIDTH	2.5"
BRAKES	Disc Brake Hydraulic, Post Mount/Direct
MIN BRAKE ROTOR SIZE	180mm
MAX BRAKE ROTOR SIZE	203mm (with adapter)
DERAILLEUR HANGER	UDH
T-TYPE COMPATIBLE	Yes
REAR HUB SPACING	148mm x 12mm through Axle Boost
SHOCK SIZE	210mm x 50mm
FRONT SHOCK MOUNT HARDWARE	8mm x 30mm
REAR SHOCK MOUNT HARDWARE	8mm x 20mm

FRAME SIZE	SM	MD	LG	XL
REACH	430mm	455mm	475mm	505mm
HEADTUBE ANGLE	65°	65°	65°	65°
SEATTUBE ANGLE (EFFECTIVE)	78°	78°	78°	78°
SEATTUBE ANGLE (ACTUAL)	74°	74°	74°	74°
WHEELBASE	1177mm	1206mm	1230mm	1264mm
CHAINSTAY LENGTH	435mm	435mm	435mm	435mm
FRONT CENTER	742mm	771mm	800mm	829mm
BB HEIGHT	336mm	336mm	336mm	336mm
STACK	602mm	612mm	620mm	630mm
TOPTUBE LENGTH	557mm	585mm	607mm	639mm
HEADTUBE LENGTH	100mm	110mm	120mm	130mm
BB DROP	38.5mm	38.5mm	38.5mm	38.5mm
SEATTUBE LENGTH	390mm	415mm	440mm	465mm
MAX SEATPOST INSERTION DEPTH	215mm	250mm	275mm	300mm
WEIGHT (NO SHOCK)	5lbs 12oz / 2.61kg	6lbs / 2.72kg	6lbs 3oz / 2.8kg	6lbs 6oz / 2.89kg

*Based off a 537mm axle to crown, 44mm offset fork // **Based off front tire OD of 750mm, rear tire OD of 750mm

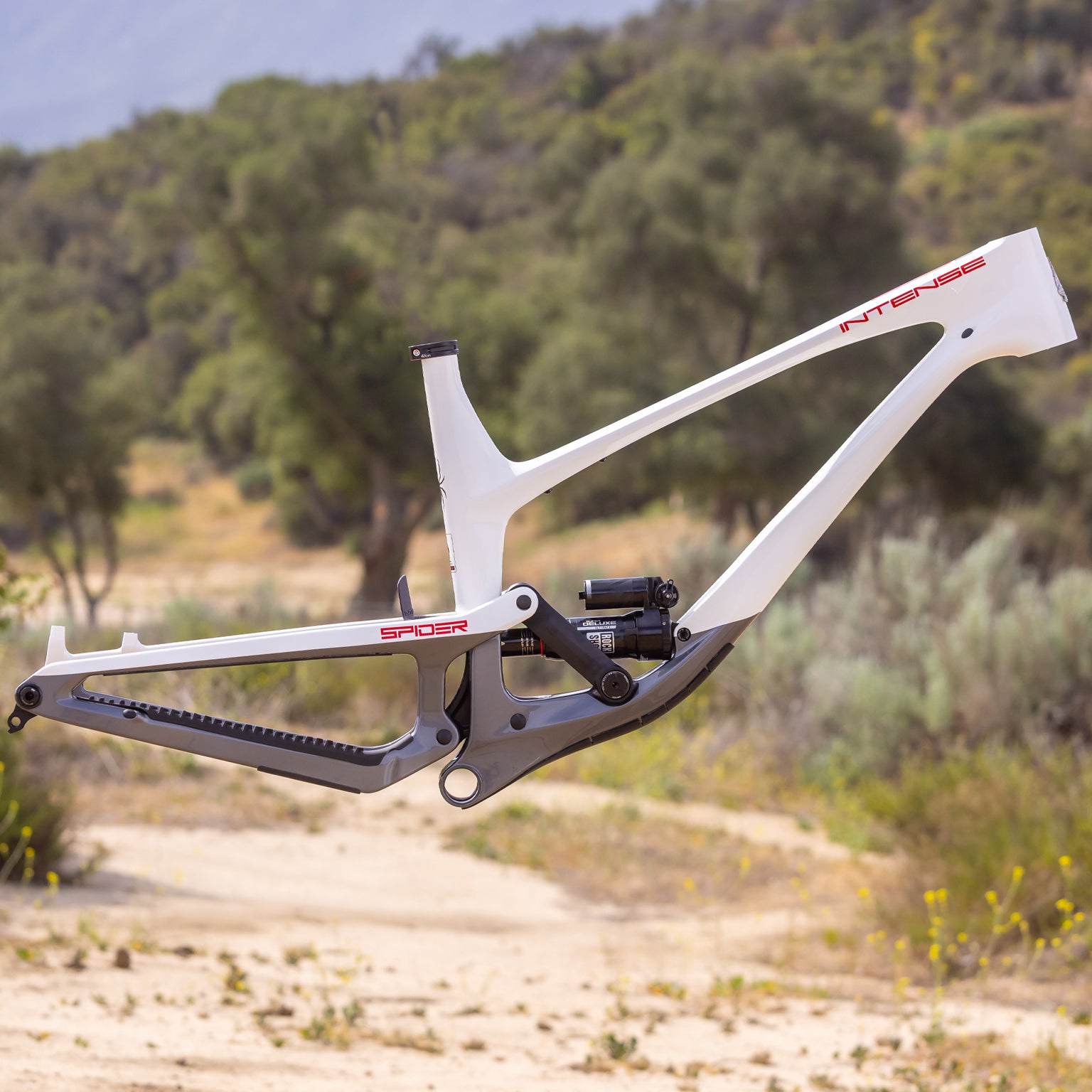

Carbon Fit

The Spider’s carbon layup is tailored to each frame size, optimizing strength, weight, and compliance for riders of all sizes. This ensures every rider experiences the perfect balance of stiffness and responsiveness.

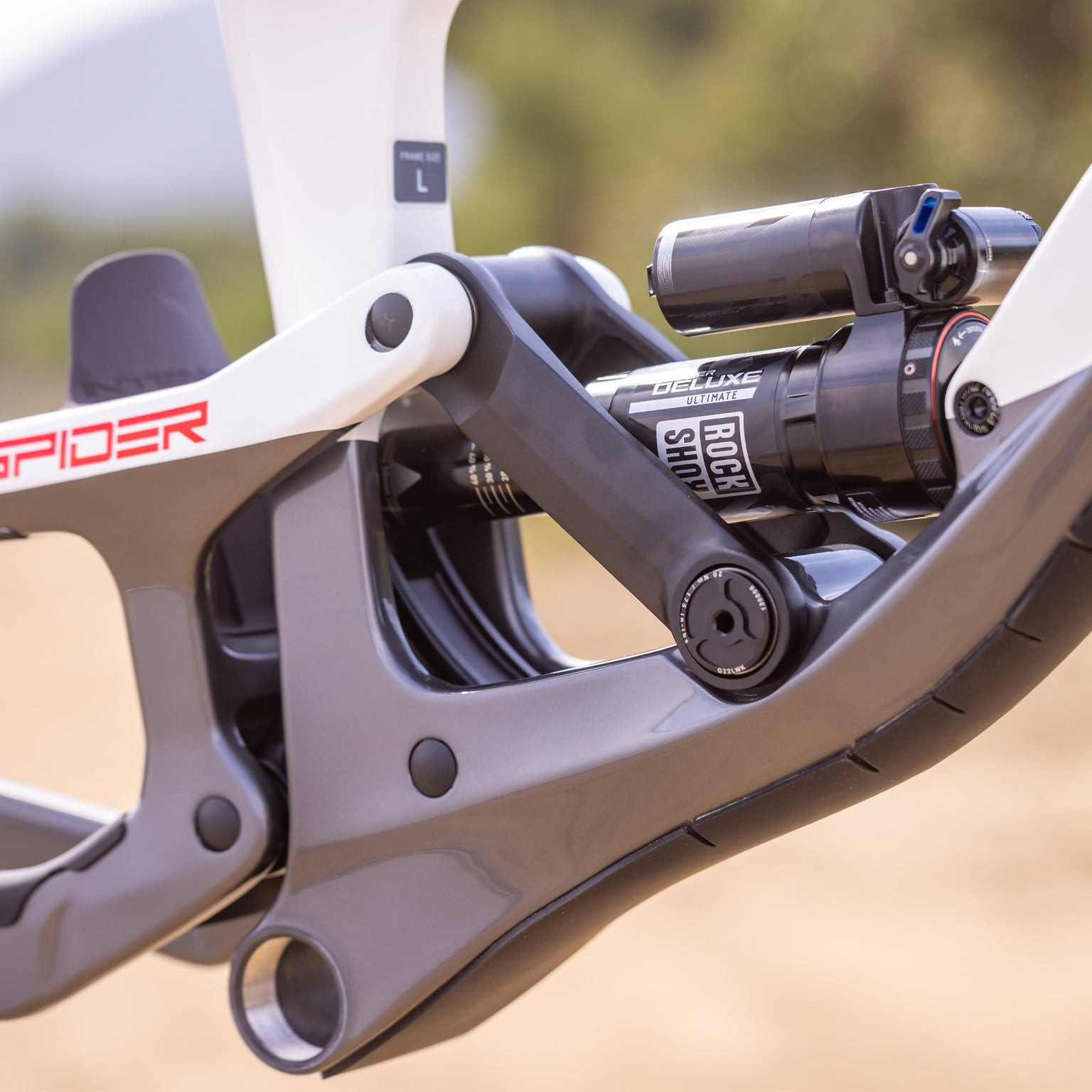

JS Tuned

Incredibly smooth performance on mixed terrain with excellent pedaling efficiency. Supportive while climbing and on flatter trails, yet bottomless as the terrain gets rougher.

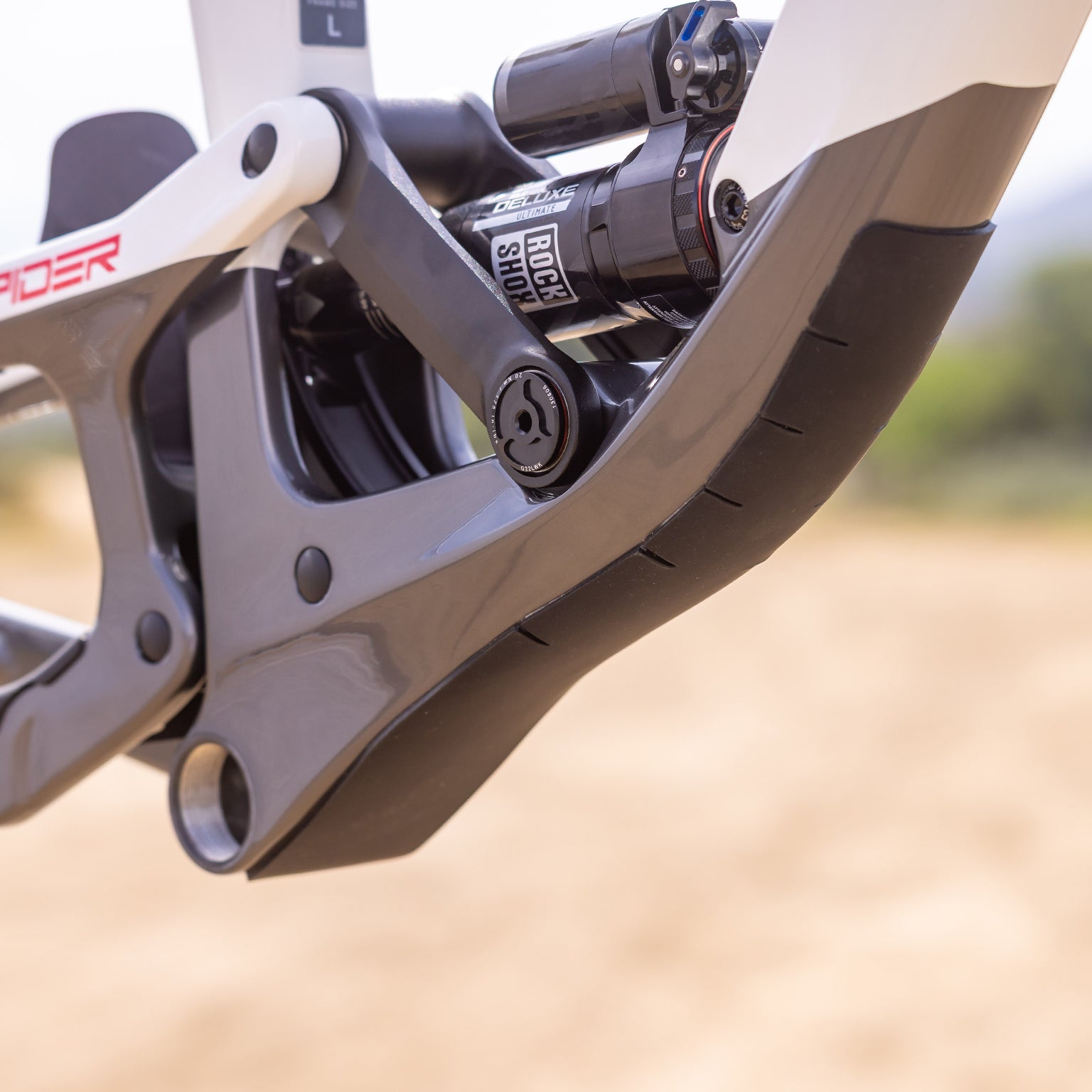

Frame Protection

The frame has a front and rear custom molded flak guard frame protection kit. It also has an integrated rear fender to keep the shock clear of mud and debris.

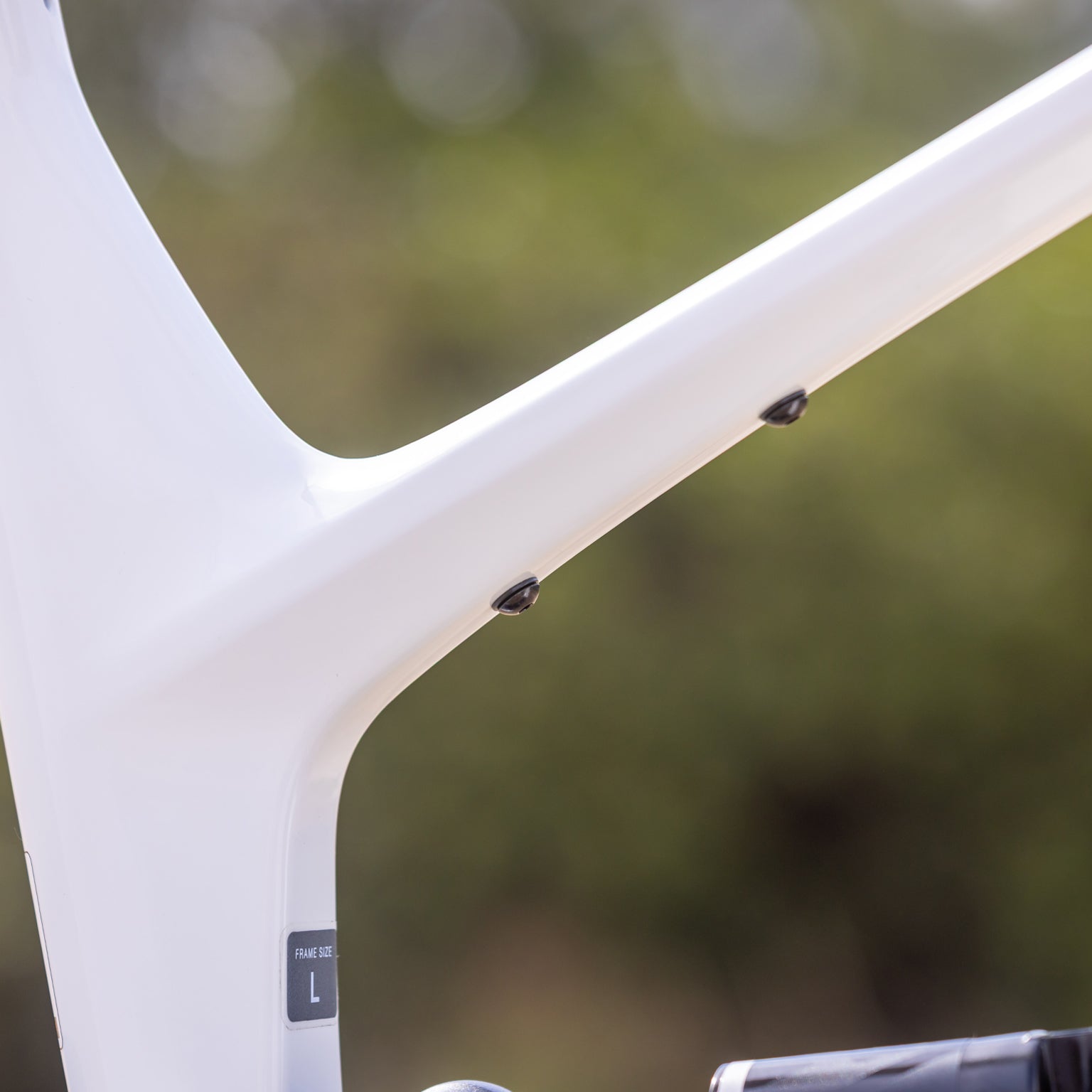

Accessory Mount

The Spider has a designated accessory mount on the bottom of the top tube to hold tools, air canisters, tire levers and more.

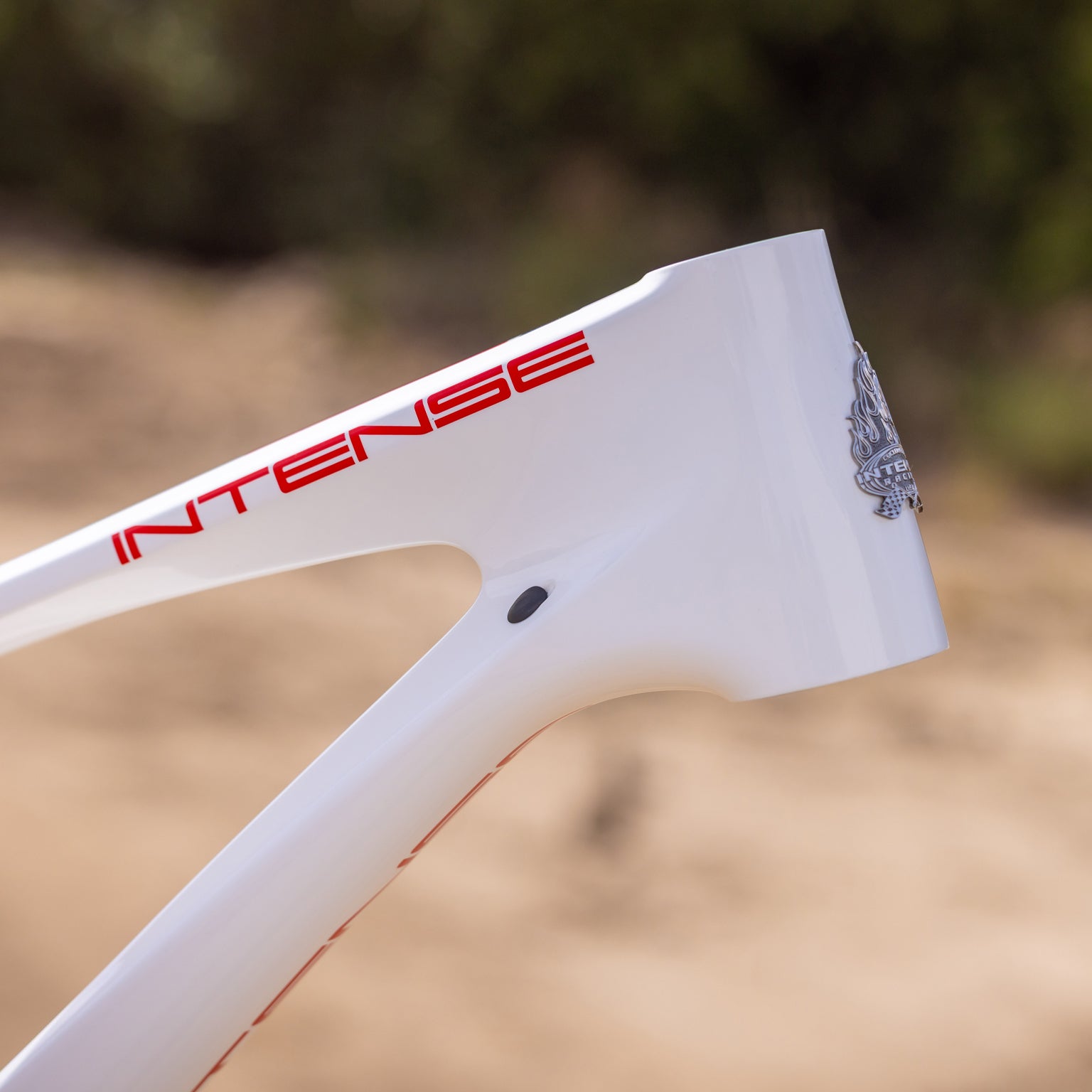

Internal Cable Routing

Internally guided routing for the shifter, dropper post and rear brake ensures the Spider remains clean, organized, noise-free, and easy to maintain.

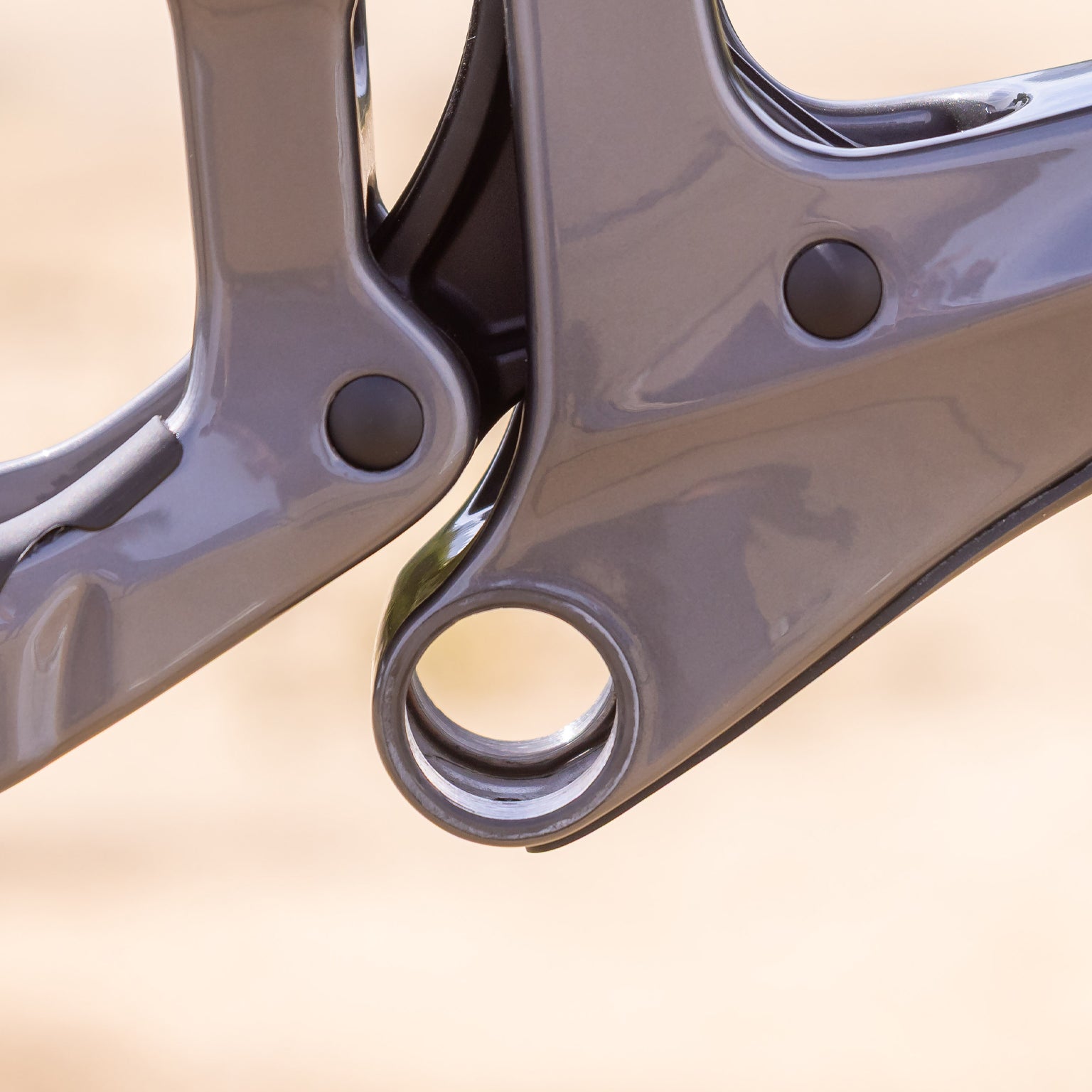

Threaded BB

The Spider features a threaded BB. The preferred choice for riders who handle their own bike maintenance. Less prone to creaking, and better for reliable long term performance.
