WELCOME TO THE INTENSE TAZER MX CONCEPT

The INTENSE Tazer MX is unlike any E-bike you’ve ever ridden. Featuring an innovative staggered (29” front/ 27.5” rear) wheelset for maximum traction, maneuverability and clearance to tackle the toughest terrain. Öhlins suspension coupled to a Shimano E-Steps drivetrain and battery provides responsive power output and unmatched handling in any conditions.

RYAN DUNGEY ON THE TAZER MX PROJECT

ARE YOU INTERESTED IN BECOMING A TAZER MX DEALER?


TAZER MX FEATURES AND SPECS

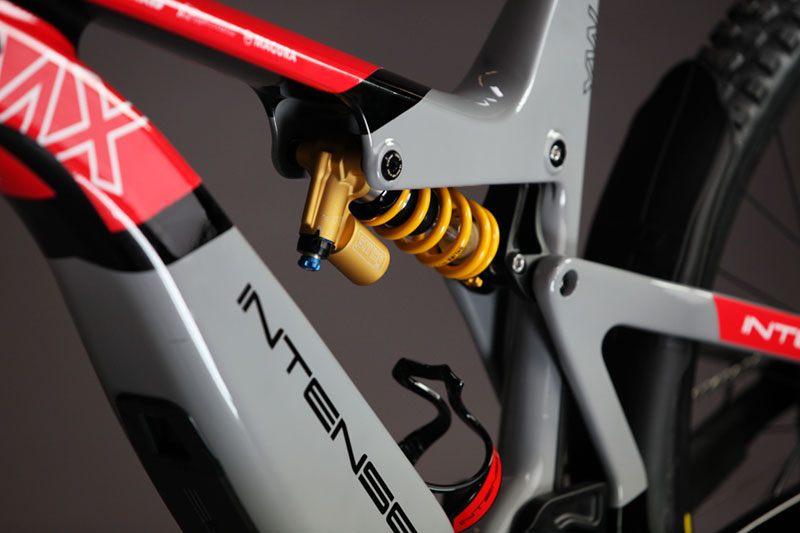

The Tazer MX Pro Build is outfitted with an Ohlins coil shock

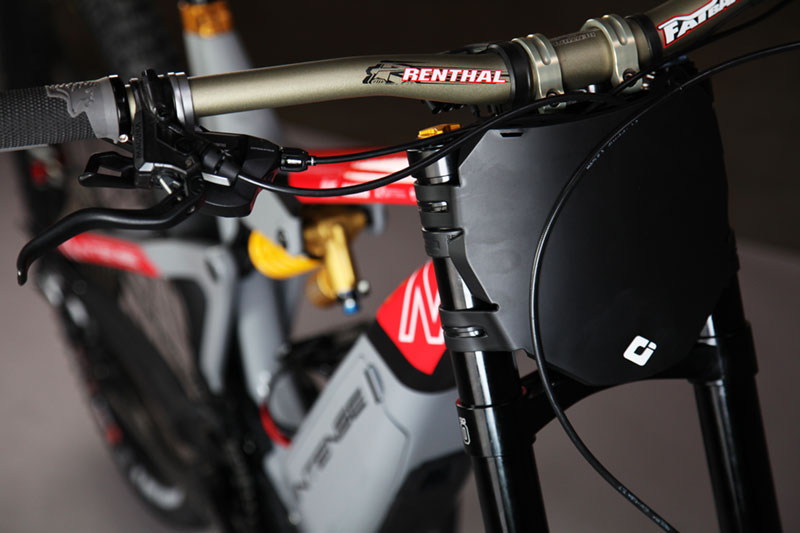

Renthal handlebars and an Ohlins dual crown 170mm travel front fork comes standard on the Pro Build

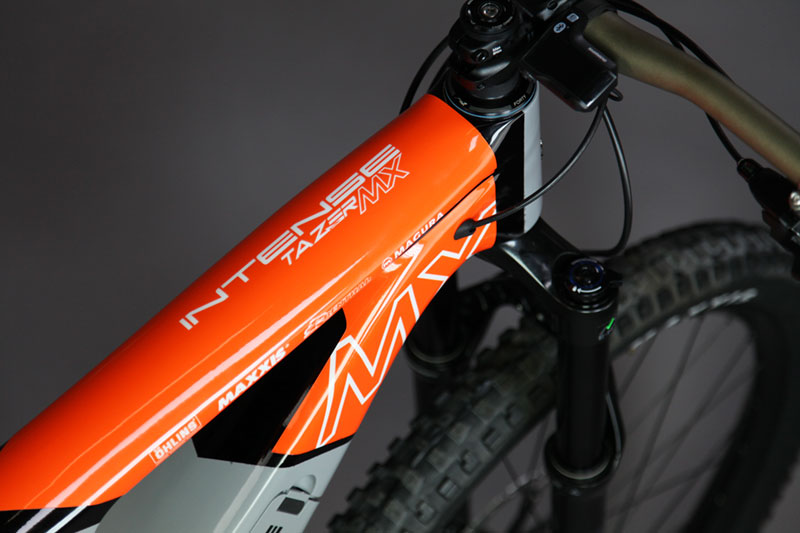

The Expert Build spec offers competitive pricing without sacrificing ride quality or battery range

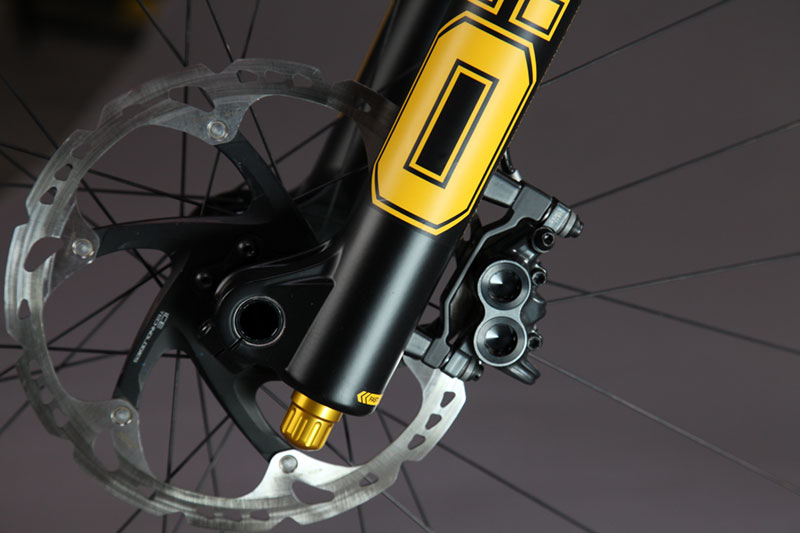

Magura 4-piston brakes and 203mm rotors provide ultimate stopping power

THE TAZER MX PRO BUILD

The Tazer MX Pro Build offers the most competitive build spec on our agile and rugged Tazer frame.

FEATURES

// 170mm travel front and 155mm travel rear gives you unparalleled confidence on the trail

// Shimano STEPS drive unit gives you all the assist you need to make it up the steepest climbs with ease

// 64.9-degree head angle achieves an aggressive geometry ready for any terrain

// 29” front and 27.5+ rear wheels easily roll over all obstacles on the trail

// Ohlins suspension is buttery smooth day after day

// Magura XT 4-piston hydraulic brakes provide powerful and consistent braking power

// Shimano SLX 11-speed drivetrain provides you with all the gears to make it up the steepest climbs

DRIVE UNIT SPECIFICATIONS

MOTOR: Shimano Steps E8000 25KM/H 250W

BATTERY: BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys (Extra Battery Available $599 retail)

DISPLAY: Shimano Steps LCD, Bluetooth Compatible.

BIKE SPECIFICATIONS

FRAME: TAZER Optimized Carbon 29” Front and 275+ Rear Triangle, Enduro link Pivot System, Downtube Flak Guard Armor, Internal Derailleur, Brake, Dropper Post, and Display Unit Routing, ISCG 05 Mount, 150mm travel.

FORK: Ohlins DH38 Race fork -170mm travel

REAR SHOCK: Ohlins TTX22M Coil

HEADSET: Cane Creek 40 Series, ZS44/EC49.40

SHIFTERS: Shimano SLX, 11-speed

REAR DERAILLEUR: Shimano SLX, 11-speed

CRANKSET: E13 e*spec 34T 165mm

PEDALS: N/A

CHAIN: Shimano E-bike, 11 speed

CASSETTE: Shimano SLX 11-42, 11-speed

BRAKES: Magura MT7 Pro (4 Piston) Hydraulic Disc, 203mm Front and Rear

WHEELSET Front: 29” DT Swiss H1700 Hybrid 30mm Inner width, 110x15 MM INCLUDING VALVE & RIM Tape

Rear: 27.5” DT Swiss H1700 Hybrid 35mm Inner width, 148x12MM REAR, 6 BOLT, INCLUDING VALVE & Rim Tape

TIRES Front: 29X2.60, MINION DHR II, FOLDABLE, 120TPI, 3CMAXX TERRA/EXO+/TR

Rear: 27.5X2.8, MINION DHR II, FOLDABLE, 120TPI, 3CMAXX TERRA/EXO+/TR

HANDLEBAR: Renthal Fatbar 35mm diameter 800mm width 30mm Rise

STEM: Renthal Integra 35 Direct Mount

GRIPS: ODI

SEATPOST: INTENSE Recon Dropper, 31.6mm, 150mm travel w/Raceface Lever

SADDLE: SDG Bel-Air w/ Cr-Mo Rails


Suggested Retail $7,999 USD

THE TAZER MX EXPERT BUILD

The Tazer MX Expert build offers a DVO fork and Coil shock and the Shimano STEPS E7000 series motor.

FEATURES

// 160mm travel front and 155mm travel rear gives you unparalleled confidence on the trail

// Shimano STEPS drive unit gives you all the assist you need to make it up the steepest climbs with ease

// 64.9-degree head angle achieves an aggressive geometry ready for any terrain

// 29” front and 27.5+ rear wheels easily roll over all obstacles on the trail

// DVO Suspension offers the most tune-able and crisp suspension package

// Shimano 4-piston hydraulic brakes provide powerful and consistent braking power

// Shimano SLX 11-speed drivetrain provides you with all the gears to make it up the steepest climbs

DRIVE UNIT SPECIFICATIONS

MOTOR: Shimano Steps E7000 25KM/H 250W

BATTERY: BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys (Extra Battery Available $599 retail)

DISPLAY: Shimano SC7000

BIKE SPECIFICATIONS

FRAME: TAZER Optimized Carbon 29” Front and 275+ Rear Triangle, Enduro link Pivot System, Downtube Flak Guard Armor, Internal Derailleur, Brake, Dropper Post, and Display Unit Routing, ISCG 05 Mount, 150mm travel.

FORK: DVO Diamond E3 - 160mm travel

REAR SHOCK: DVO Jade Coil

HEADSET: Cane Creek 40 Series, ZS44/EC49.40

SHIFTERS: Shimano SLX, 11-speed

REAR DERAILLEUR: Shimano SLX, 11-speed

CRANKSET: E13 e*spec 34T 165mm

PEDALS: N/A

CHAIN: Shimano E-bike, 11 speed

CASSETTE: Shimano SLX 11-42, 11-speed

BRAKES: Shimano M6120 (4 Piston) Hydraulic Disc, 203mm Front and Rear

WHEELSET Front: 29” EThirteen 30mm Inner width, 110x15 MM INCLUDING VALVE & RIM Tape

Rear: 27.5” Ethirteen 35mm Inner width, 148x12MM REAR, 6 BOLT, INCLUDING VALVE & Rim Tape

TIRES Front: 29X2.60, MINION DHR II, FOLDABLE, 120TPI, 3CMAXX TERRA/EXO+/TR

Rear: 27.5X2.8, MINION DHR II, FOLDABLE, 120TPI, 3CMAXX TERRA/EXO+/TR

HANDLEBAR: Renthal Fatbar 35mm diameter 800mm width 30mm Rise

STEM: INTENSE Recon 35mm

GRIPS: ODI

SEATPOST: INTENSE Recon Dropper, 31.6mm, 150mm travel w/Raceface Lever

SADDLE: SDG Bel-Air w/ Cr-Mo Rails


Suggested Retail $5,999 USD

GEOMETRY (mm / inch)

SIZE  S/M  L/XL
A: SEAT TUBE LENGTH

419 mm/ 16.5"

470 mm/ 18.5"

B: TOP TUBE LENGTH

605 mm/ 23.8"

663.4 mm/ 26.2"

C: STACK

623 mm / 24.54"

632 mm/ 24.9"

D: REACH

450 mm/ 17.7"

505 mm/ 19.9"

E: BB HEIGHT

347 mm/ 13.65"

347 mm/ 13.65"

F: BB DROP  12 mm/ 0.47" 12 mm/ 0.47"
G: HEAD TUBE LENGTH

115 mm/ 4.5”

125 mm/ 4.9"

H: HEAD TUBE ANGLE

64.9 ̊

64.9 ̊

I: SEAT TUBE ANGLE

75.4 ̊

75.4 ̊

J: STANDOVER HEIGHT

814.1 mm/ 32"

832.7 mm/ 32.8"

K: CHAINSTAY LENGTH

450 mm/ 17.7"

450 mm/ 17.7"

L: WHEELBASE

1230 mm/ 48.4"

1289.7 mm/ 50.8"
