Name: 2021 CARBINE PRO - OPEN BOX
Brand: ENDURO / 29" / 155mm
SKU: 21CCP9PROM-RED-FJM-NA-OB
Price: 4700.0 USD
Availability: InStock

$5,899.00 $4,700.00

No reviews

OPEN BOX ITEMS MEET OR EXCEED THE FOLLOWING:

• 50+ Point inspection

• Has not been ridden

• Like new condition

• May display minor scruff from packaging and/or shipping

• Original packaging

• Offered with full factory warranty

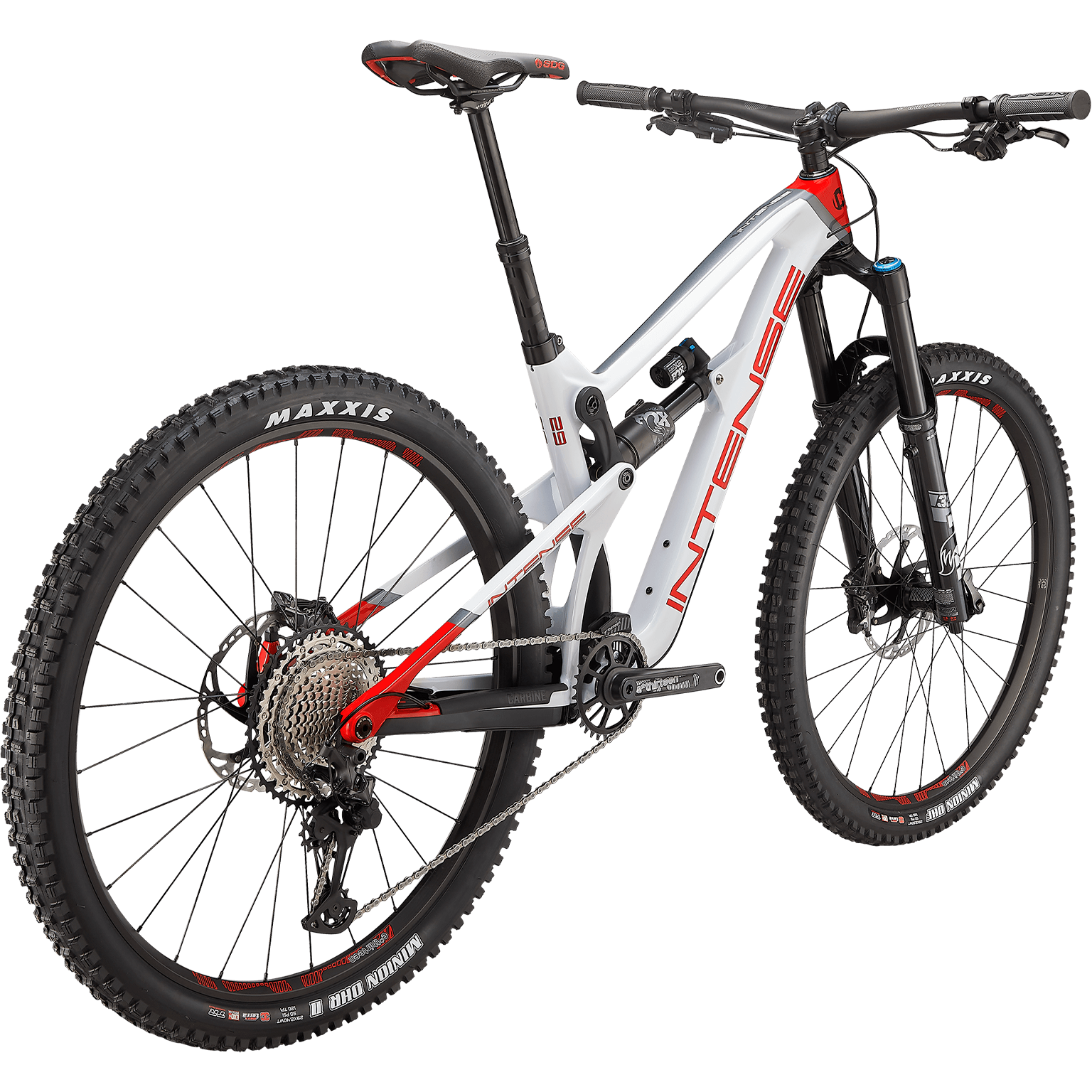

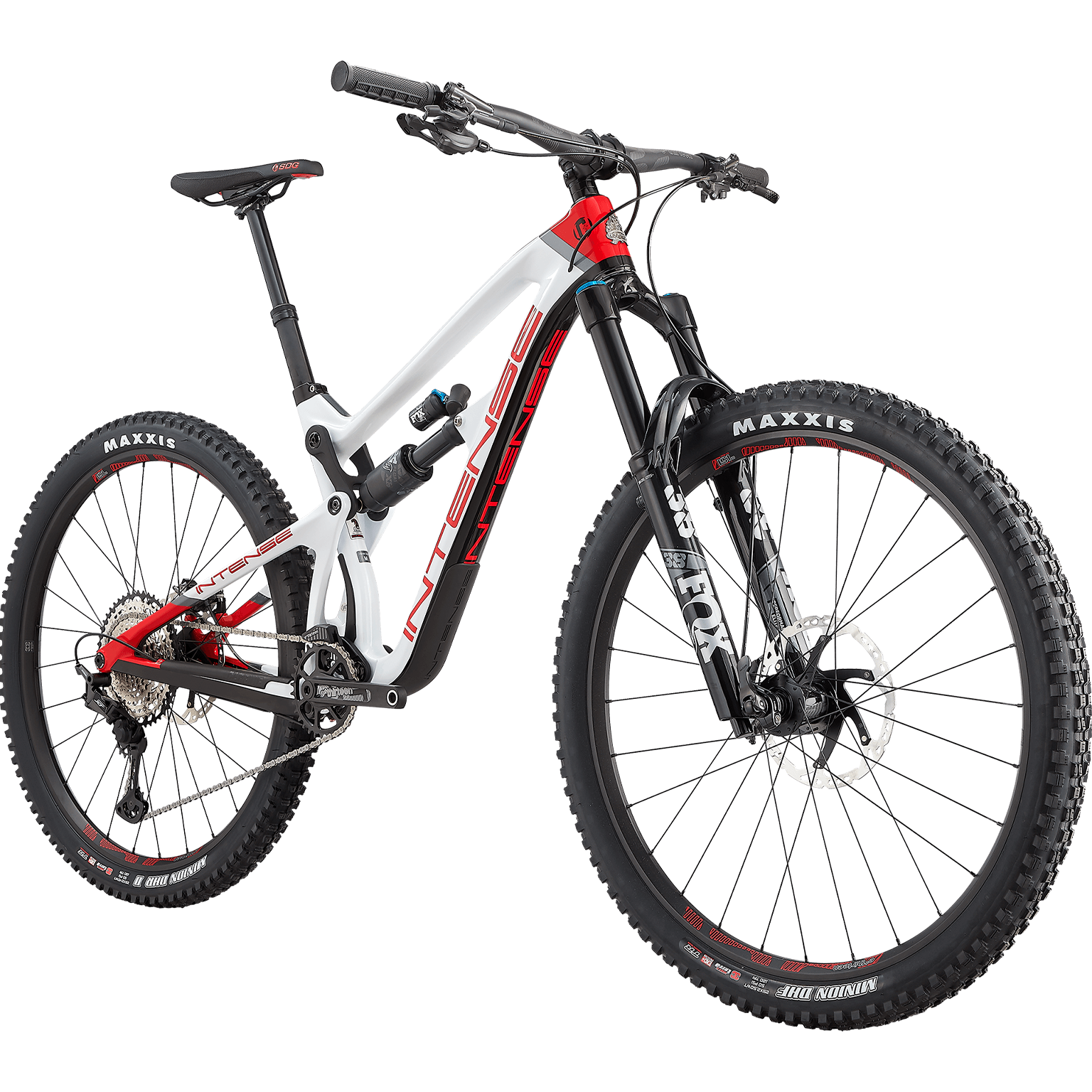

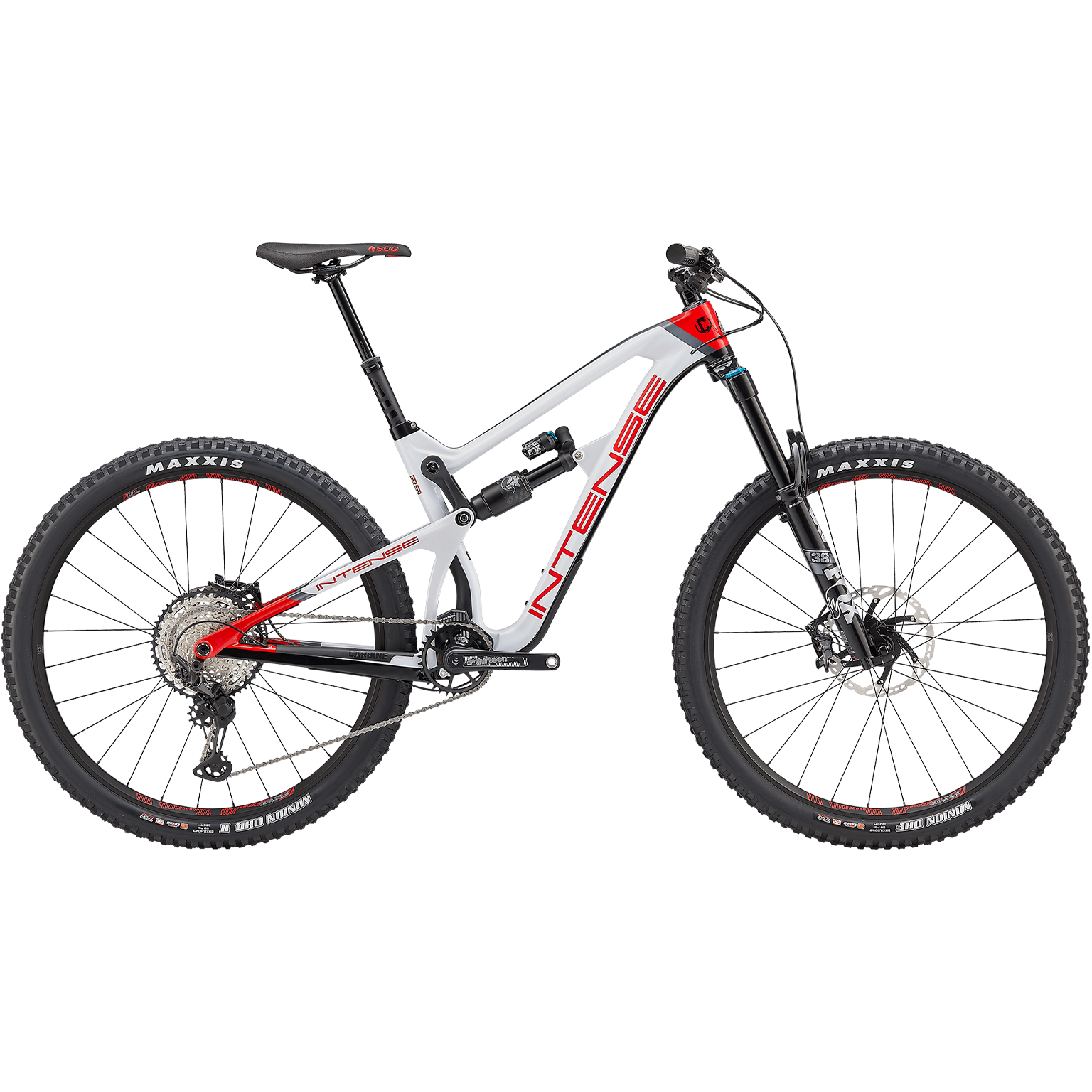

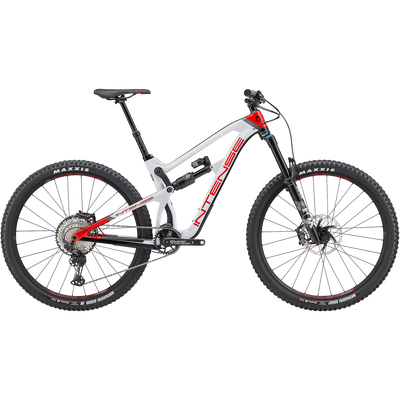

With 29” wheels and 155/160mm of travel our Carbine 29 is very much the epitome of a big wheeled long travel Enduro bike.

Size

MD

LG

[{"id":40631426809879,"title":"MD","option1":"MD","option2":null,"option3":null,"sku":"21CCP9PROM-RED-FJM-NA-OB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2021 CARBINE PRO - OPEN BOX - MD","public_title":"MD","options":["MD"],"price":470000,"weight":45359,"compare_at_price":589900,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40631426842647,"title":"LG","option1":"LG","option2":null,"option3":null,"sku":"21CCP9PROL-RED-FJM-NA-OB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2021 CARBINE PRO - OPEN BOX - LG","public_title":"LG","options":["LG"],"price":470000,"weight":45359,"compare_at_price":589900,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

With 29” wheels and 155/160mm of travel our Carbine 29 is very much the epitome of a big wheeled long travel Enduro bike. With great handling characteristics the Carbine loves high speeds and is right at home on endless gnarly challenging trails, laps in the bike park or Enduro race stages. Just point and go.

	BUILD	Pro
	WEIGHT	33 lbs 13oz (Size Medium Tubeless)
	FRAME	Carbine 29" Enduro Optimized Carbon Frame. Carbon top link, internal shift, dropper post and brake routing. ISCG05 mounts, flak guard armor, 155mm Travel
	FORK	Fox Performance Elite Float 38, 29" 160mm Travel Grip 2, 51mm offset, Boost 110x15mm, Quick Release Axle
	SHOCK	Fox Performance Elite Float X2, 230mm x 60mm (155mm), 2-position (open/firm)
	HEADSET	Cane Creek 40 Series, ZS44/EC49.40
	STEM	e*thirteen Plus 35mm x 40mm
	HANDLEBARS	e*thirteen Race Carbo 35mm x 800mm
	GRIPS	INTENSE Lock-On
	BRAKES	Shimano XT M8120 Front (Four Piston) 203mm Rotors (Front/Rear)
	SHIFTER	Shimano XT 12SP I-Spec
	DERAILLEUR	Shimano XT 12sp
	CRANKS	e*thirteen TRS Plus 12sp / 32t / 170mm / Boost
	BOTTOM BRACKET	e*thirteen 30mm
	CASSETTE	Shimano SLX 12sp / 11-51T
	CHAIN	Shimano SLX 12sp
	WHEELSET	ethirteen LG1 Enduro Alloy 30mm Rim ethirteen Alloy Hub / Boost
	TIRES	Front/Rear: Maxxis Minion DHF WT Exo+ 29"x2.5" (Front/Rear)
	DROPPER POST	e*thirteen Vario Infinite Dropper w/ adjustable travel 31.6mm / 150mm MD / 180mm LG-XL (Frame Size Specific)
	SADDLE	SDG Radar

BASED OFF HIGH SETTING

SEATTUBE LENGTH	385mm / 15.2"	418mm / 16.5"	448mm / 17.6"	483mm / 19.0"
EFFECTIVE TOPTUBE	603mm / 23.7"	627mm / 24.7"	655mm / 25.8"	675mm / 26.6"
STACK	616mm / 24.3"	624mm / 24.6"	632mm / 24.9"	641mm / 25.2"
REACH	410mm / 16.1"	431mm / 17.0"	455mm / 17.9"	471mm / 18.5"
BB HEIGHT	348mm / 13.7"	348mm / 13.7"	348mm / 13.7"	348mm / 13.7"
BB DROP	22.87mm / 0.90"	22.87mm / 0.90"	22.87mm / 0.90"	22.87mm / 0.90"
HEADTUBE LENGTH	92mm / 3.6"	100mm / 3.9"	110mm / 4.3"	120mm / 4.7"
HEADTUBE ANGLE	65.5°	65.5°	65.5°	65.5°
SEATTUBE ANGLE (EFFECTIVE)	74.0°	74.0°	74.0°	74.0°
STANDOVER HEIGHT	830mm / 32.7"	834mm / 32.8"	834mm / 32.8"	836mm / 32.9"
CHAINSTAY LENGTH	445mm / 17.5"	445mm / 17.5"	445mm / 17.5"	445mm / 17.5"
WHEELBASE	1181mm / 46.5"	1205mm / 47.4"	1233mm / 48.5"	1253mm / 49.3"
SUGGESTED RIDER HEIGHT	N/A	164-177cm	175-187cm	185-197cm

LIVELY AND PLAYFUL WITH BIG-HIT CAPABILITIES.

For a long travel, big wheeled bike the Carbine is super responsive. Its modern long and slack geometry is aggressive but balanced, giving the Carbine excellent stability and confidence and the maneuverability needed on tight and twisty trails. The carbon frame is composed, poised, and light in weight, giving great all-out speed and a lively, playful feel. The Carbine will allow you to pick and choose your lines; it’s nimble and controllable even on the steepest descents.

PERFECT ENDURO PERFORMANCE.

The Carbine has competed at the highest level and has a pure race pedigree. In 2019 INTENSE team rider Isabeau Courdurier piloted her Carbine to overall victory at the Enduro World Series (EWS). Not only that, but she also won every single round on the way.

CLIMB WITH EASE.

At home on rough and challenging trails, the Carbine can easily climb any technical or longer drawn-out ascents. The climbing position on the bike is perfect, and when things get technical, the suspension remains active all the time to provide excellent traction and outstanding pedaling efficiency. The Carbine is it is fast everywhere.

THE JS TUNED ENDURO LINK.

What this means is that you get a supple and sensitive ride that initially absorbs small bumps, then seamlessly moves into a supportive mid-stroke platform (which helps to maintain ride height) and finally into a controlled ramp-up towards bottom-out. All this translates into a very predictable ride that offers plenty of support, can tackle anything, and gives endless grip in all situations.
